Rear Object Sensor - Right Middle

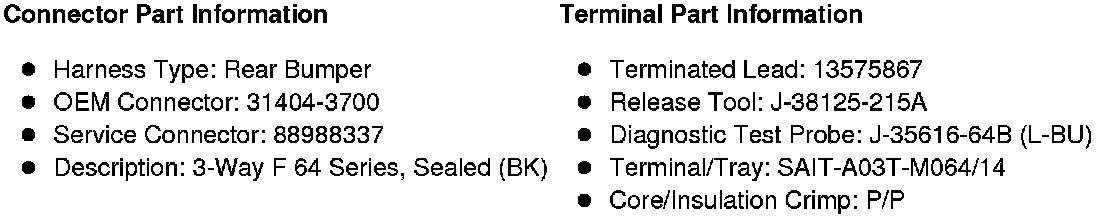

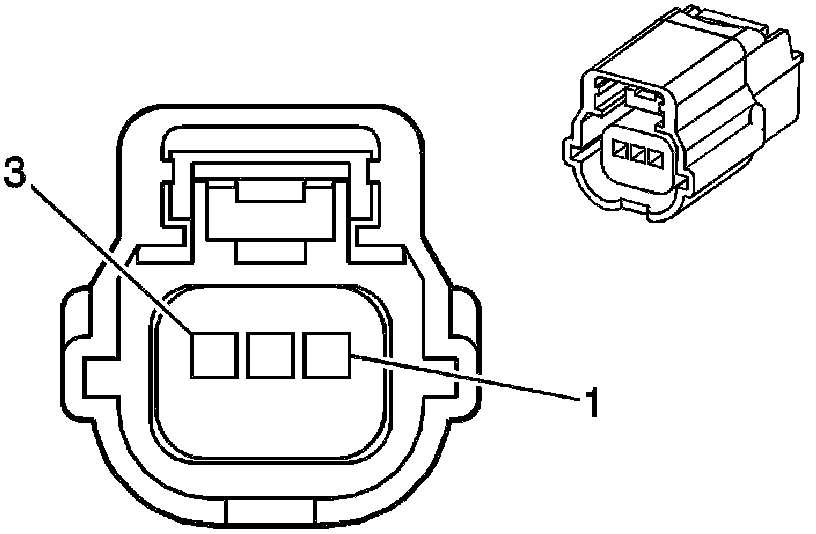

Component Connector End Views

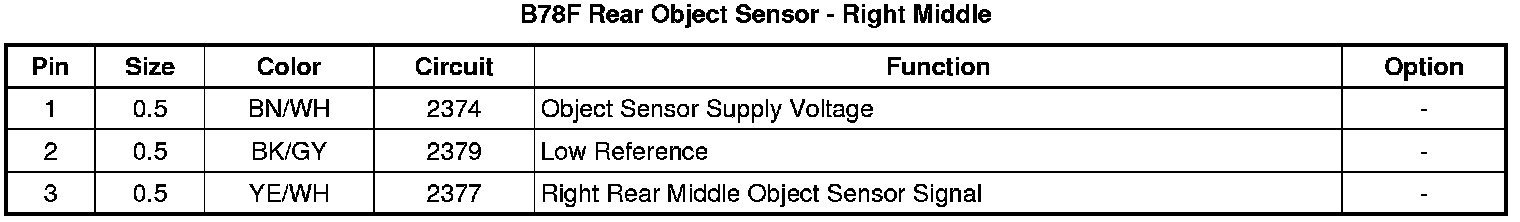

B78F Rear Object Sensor - Right Middle
