Audio Jacks (Without KTA)

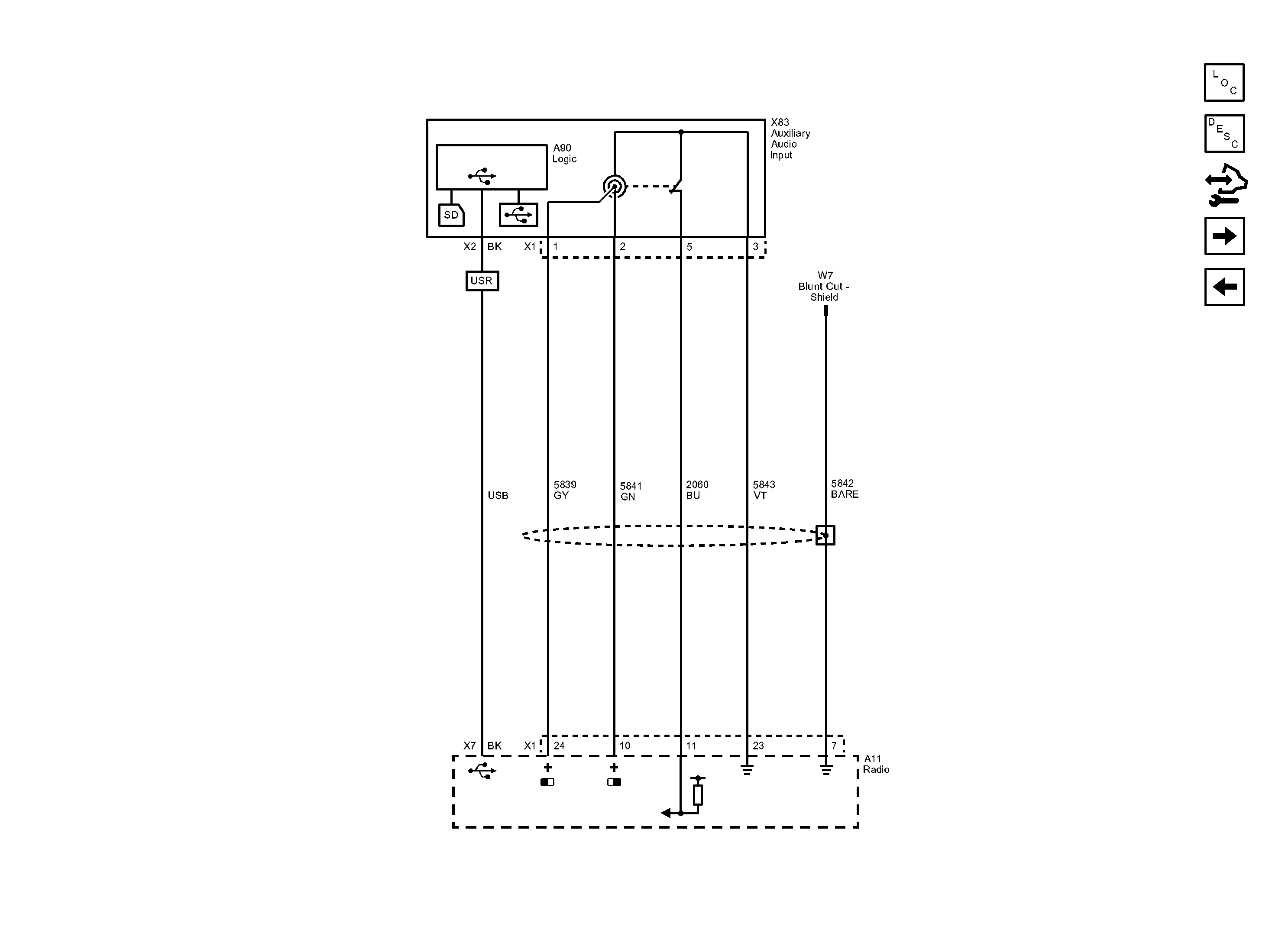

Fig 1: Audio Jacks (Without KTA) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
