Power, Ground And Antennas

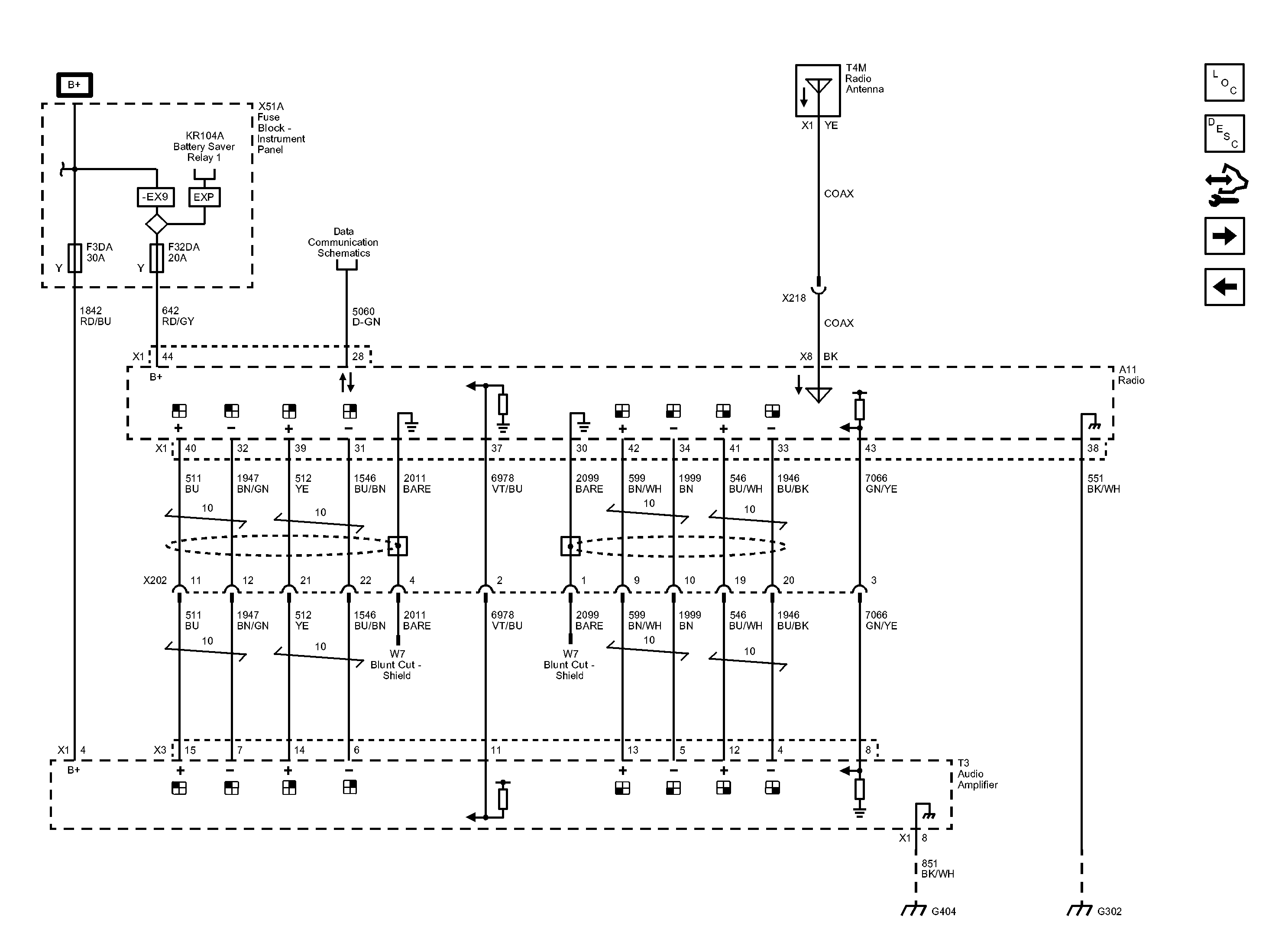

Fig 1: Power, Ground And Antennas Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
