Speakers (UQ3/UW6)

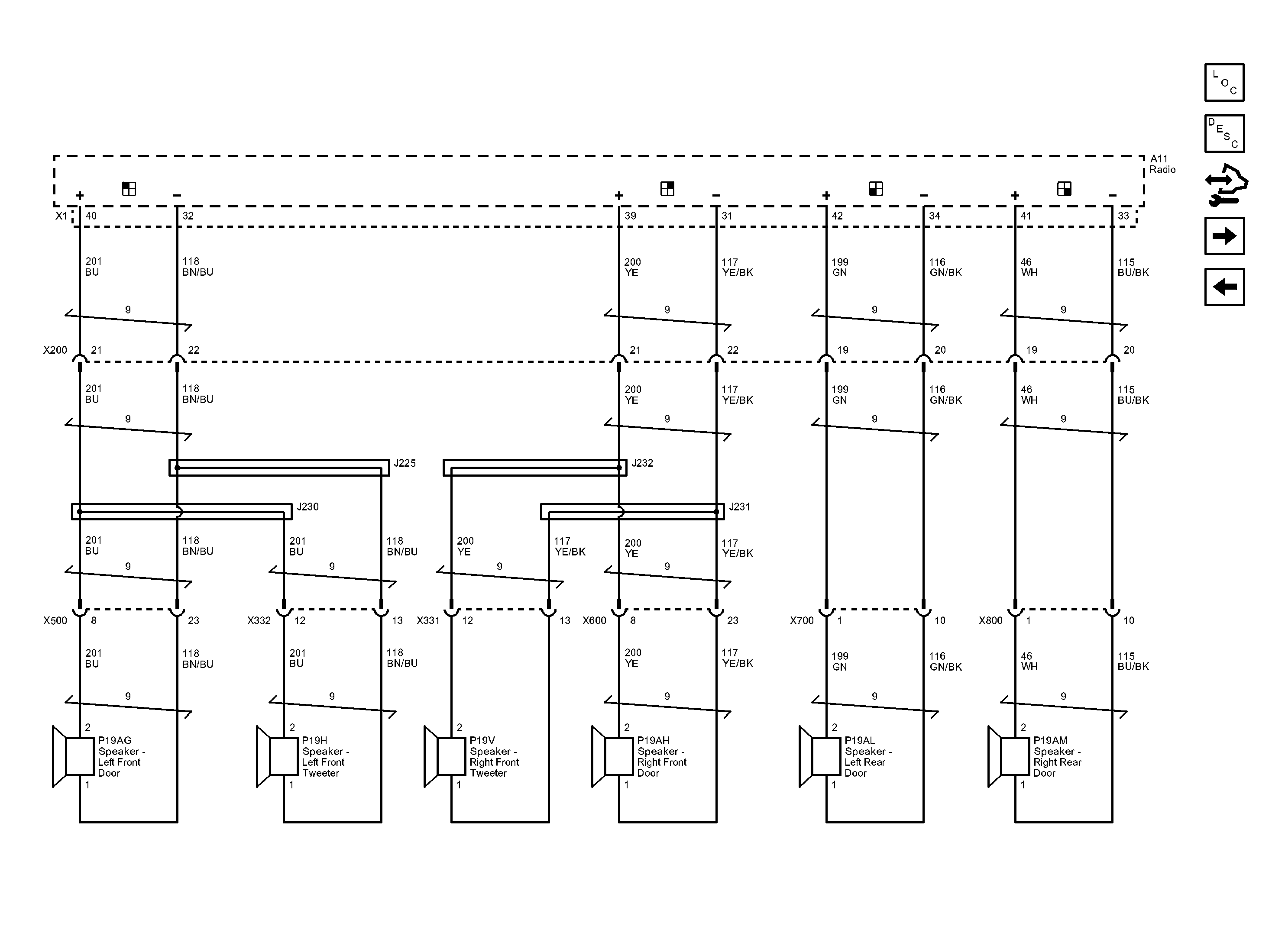

Fig 1: Speakers (UQ3/UW6) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
