Communication Interface Module Replacement (Chevrolet)
Courtesy of GENERAL MOTORS COMPANY Communication Interface Module Replacement (Chevrolet)
| Callout |
Component Name |
Preliminary Procedure
Remove the communication interface module bracket. Refer to Communication Interface Module Bracket Replacement (Buick) . |
| 1 |

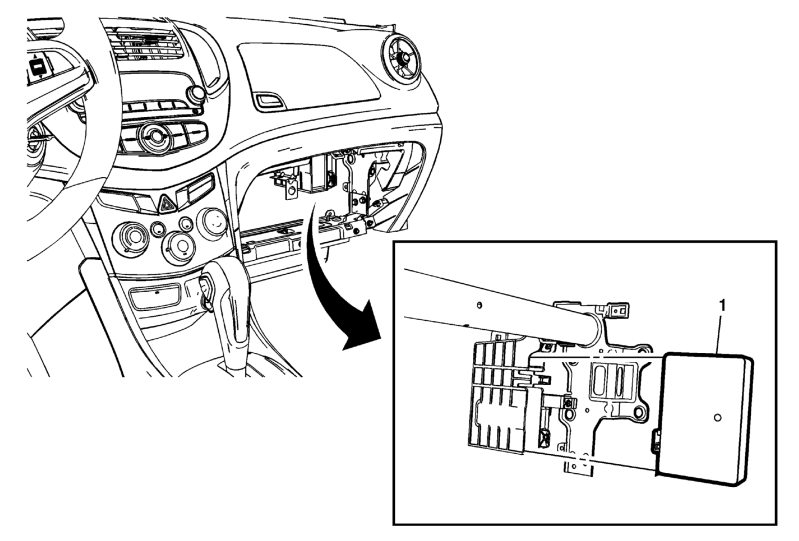

Communication Interface Module Procedure
- Slide the module out of the bracket.
- Disconnect the electrical connections.
- If replacing the communication interface module be sure to transfer wireless communication interface antenna, if equipped.
- For programming and set up procedures, refer to Control Module References
.
|
