Starting and Charging Schematics: Charging

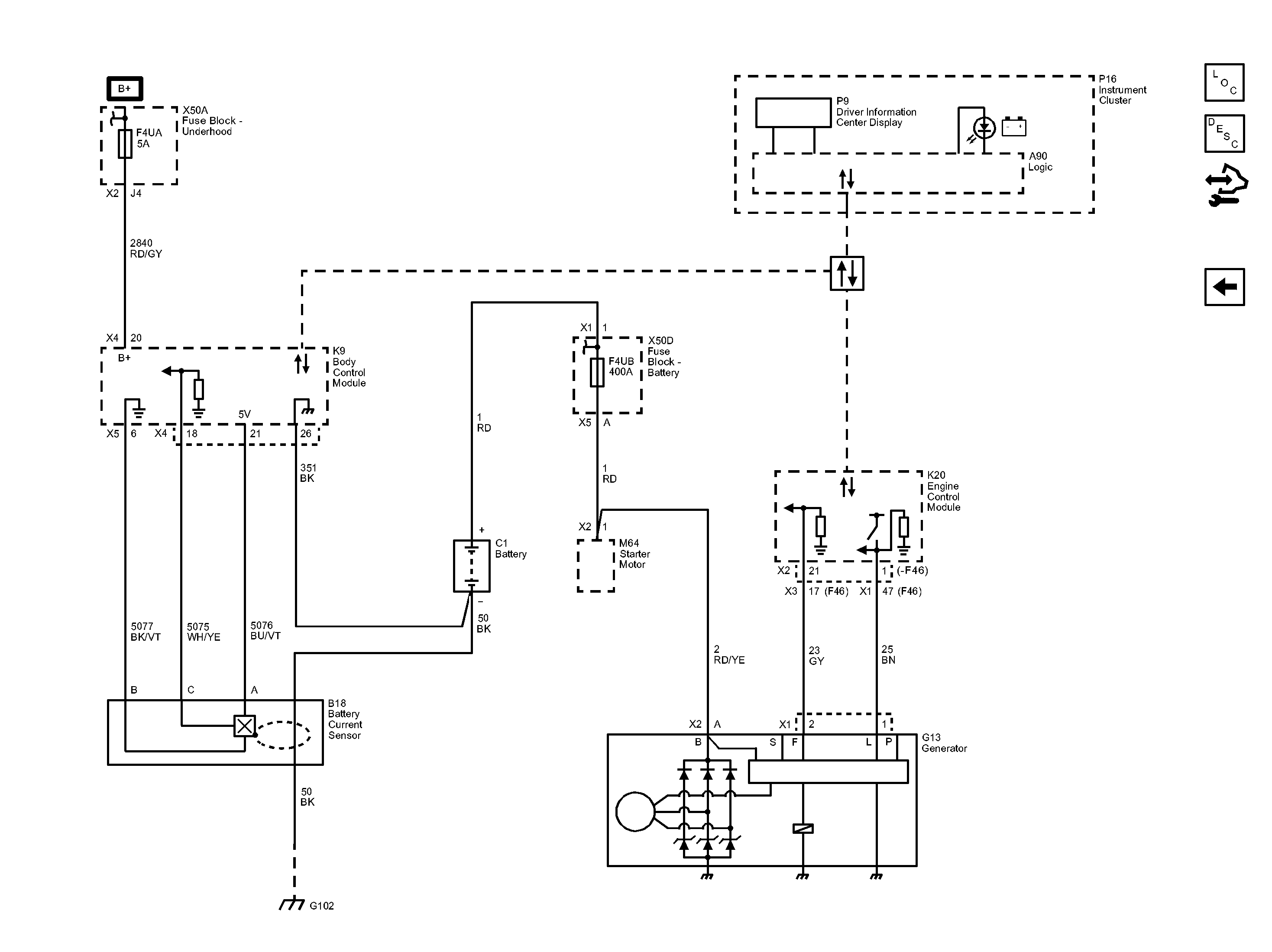

Fig 1: Charging System Wiring Schematic
GM2884978Courtesy of GENERAL MOTORS COMPANY
