Blower Motor Control Module Replacement
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

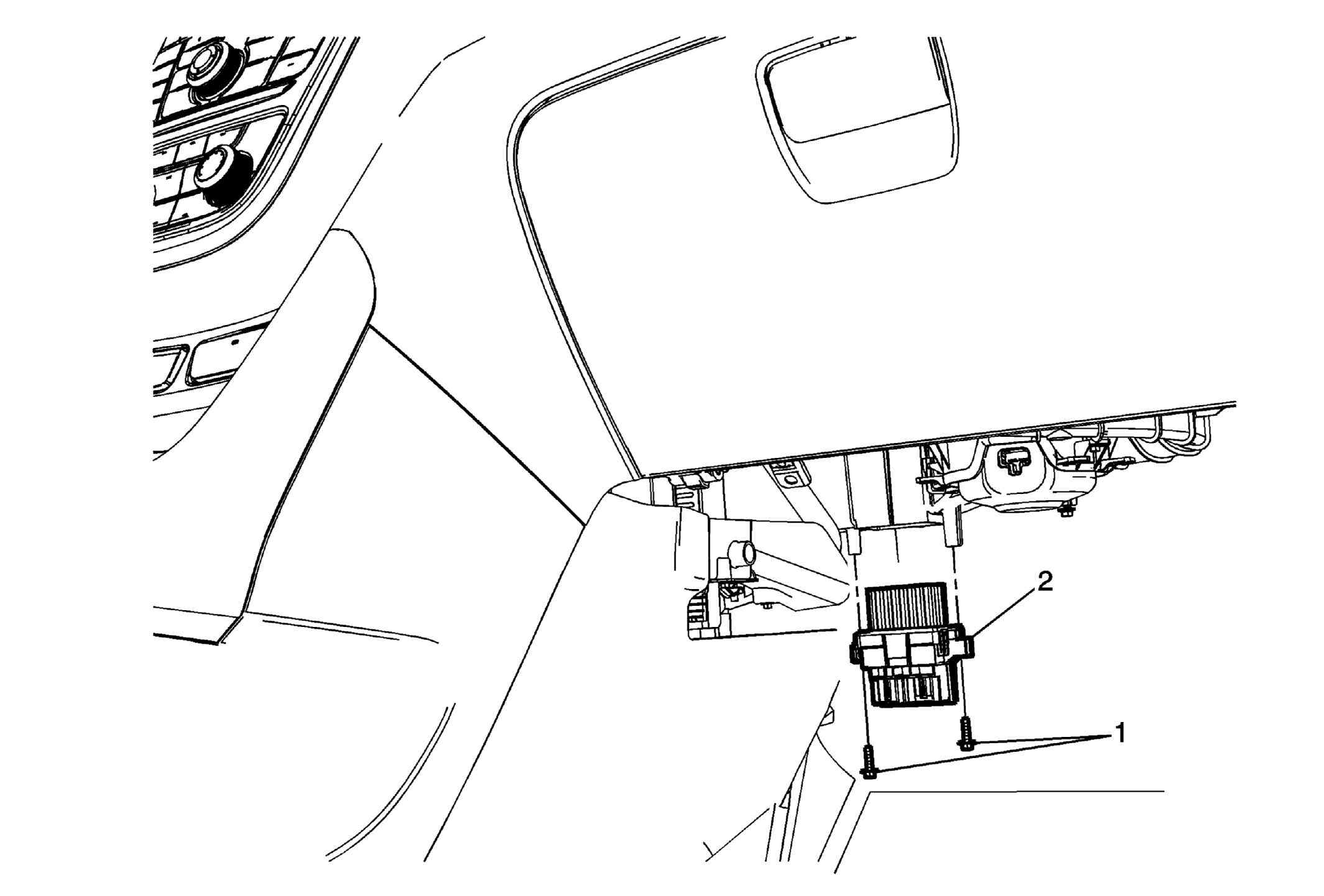

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement . |
|
| 1 | Blower Motor Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Blower Motor Control Module Procedure Disconnect the blower motor control module connector. |
