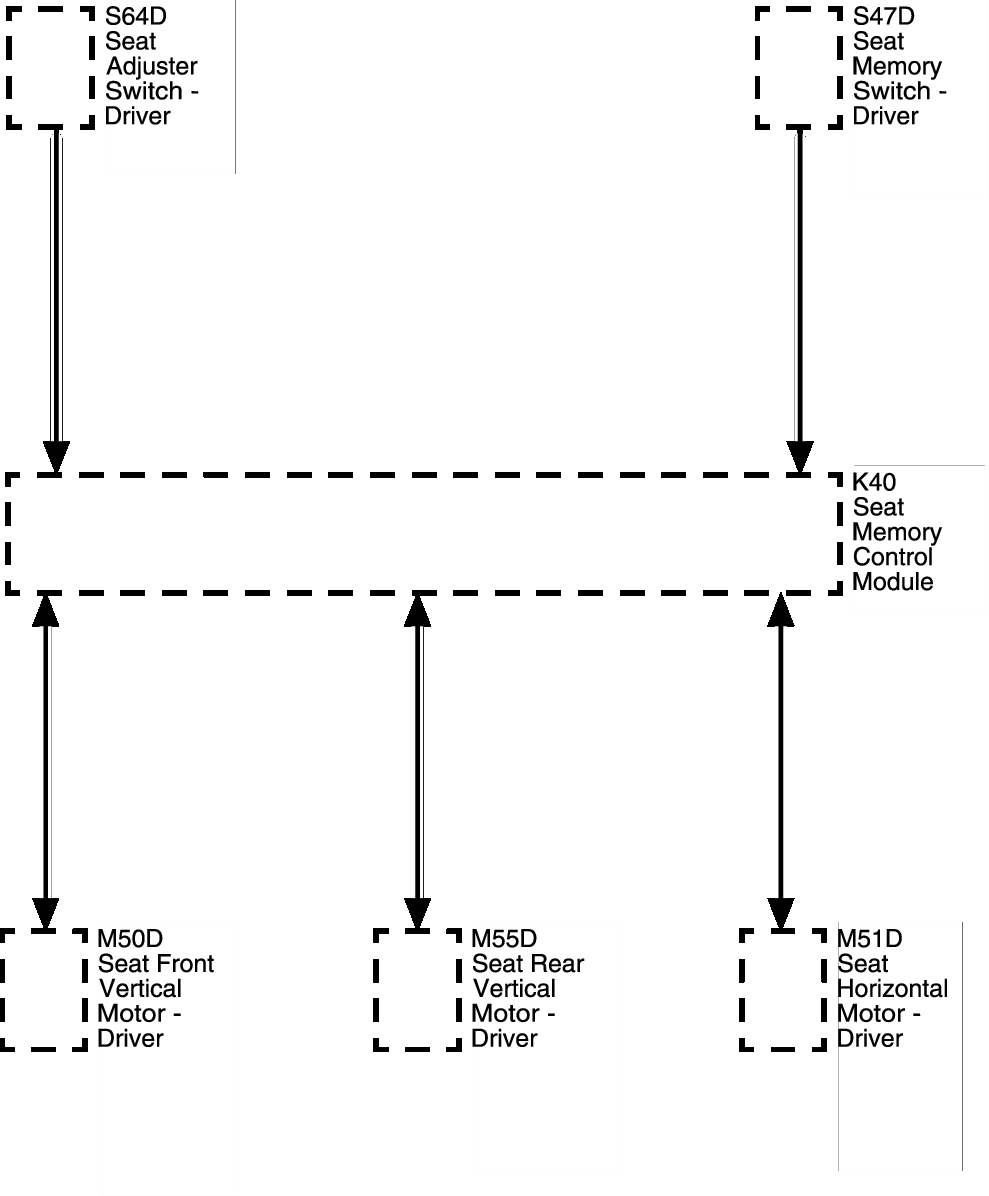

Memory Seats Description and Operation: Notes
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| S64D |
S64D Seat Adjuster Switch - Driver |
| S47D |
S47D Seat Memory Switch - Driver |
| K40 |
K40 Seat Memory Control Module |
| M50D |
M50D Seat Front Vertical Motor - Driver |
| M55D |
M55D Seat Rear Vertical Motor - Driver |
| M51D |
M51D Seat Horizontal Motor - Driver |
