Assembly Procedure

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

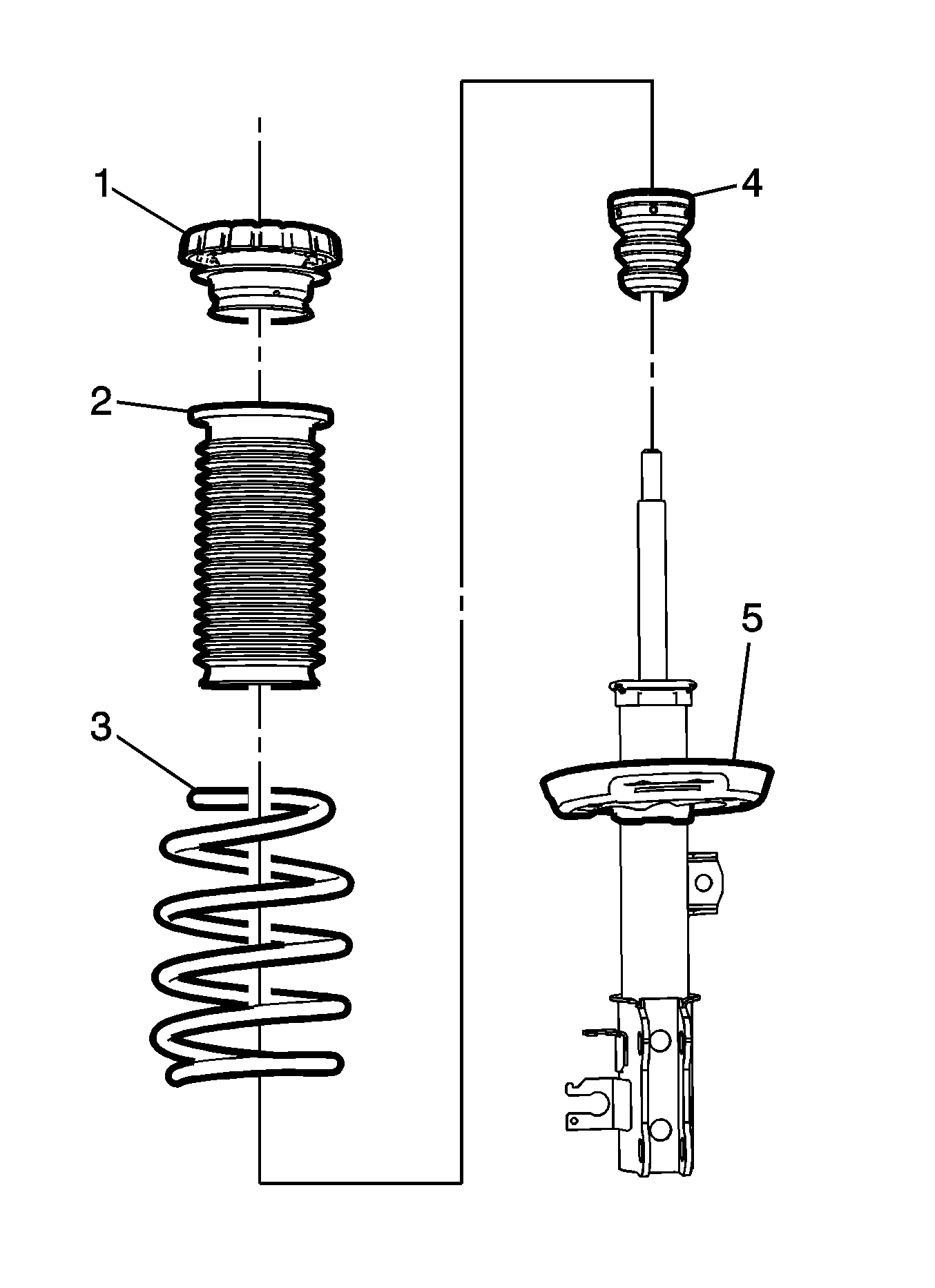

Fig 1: Strut Components

Courtesy of GENERAL MOTORS COMPANY

Install the following components:
Front Suspension Strut (5)
Front Suspension Strut Bumper (4)
Front Coil Spring (3)
Front Coil Spring Upper Insulator (2)
Front Suspension Strut Mount (1)

Fig 2: View Of Compressor Forcing Screw & Coil Spring

Courtesy of GENERAL MOTORS COMPANY

Slowly tighten the spring compressor (1) until the front suspension strut mount nut can be started by hand.

Fig 3: TORX ® Bit And Special Wrench

Courtesy of GENERAL MOTORS COMPANY

Install the front suspension strut mount nut and tighten it as much as possible by hand.

Fig 4: TORX ® Bit And Special Wrench

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Use a suitable bit (1) and socket (2) to tighten the front suspension strut mount nut to 65 N.m (48 lb ft).
Remove the strut assembly from the spring compressor.
Strut Assembly - Install - Strut Assembly Removal and Installation
