Rearview Camera

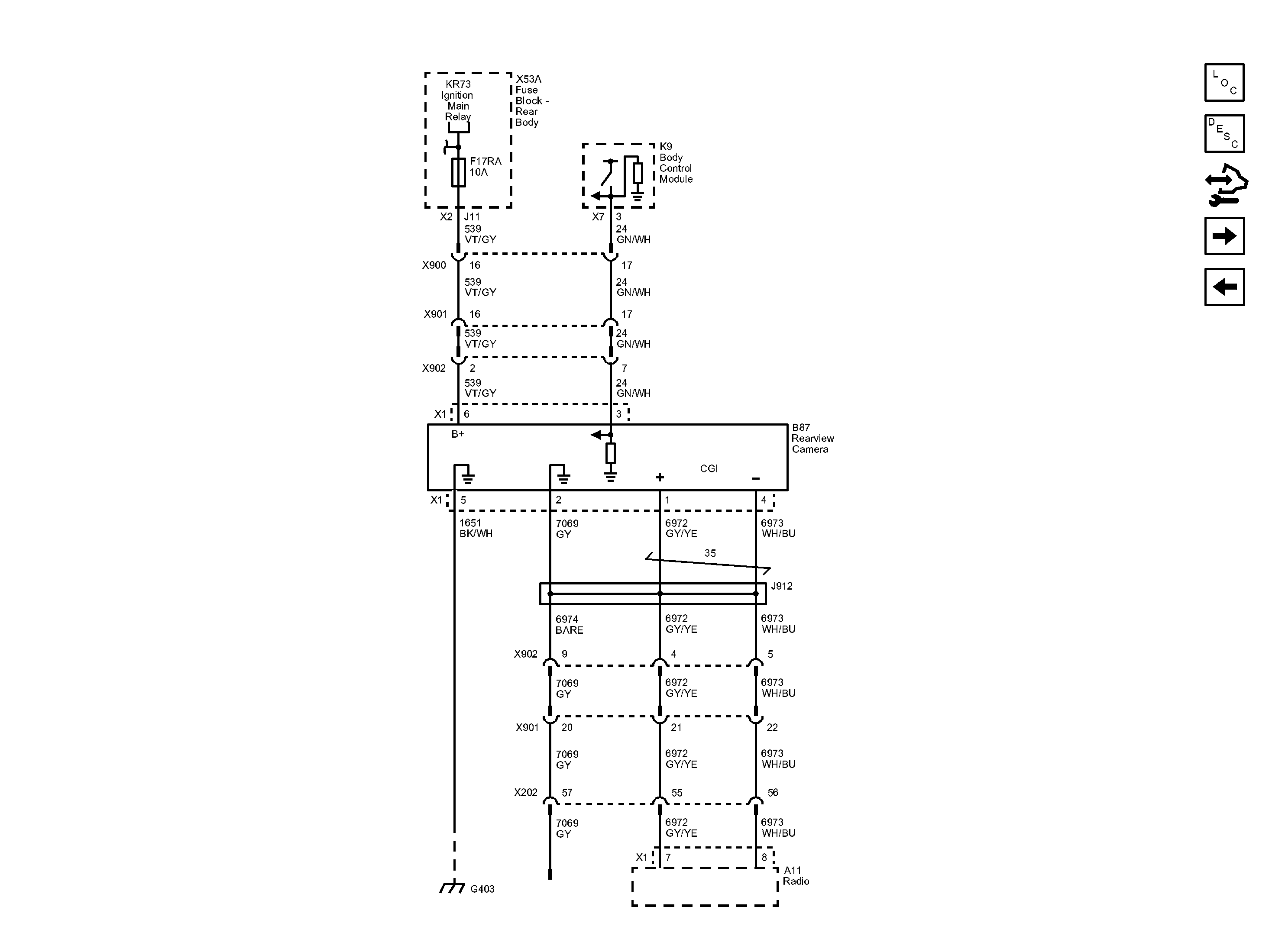

Fig 1: Rearview Camera Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
