Theft Deterrent Module Replacement (Without BTM)

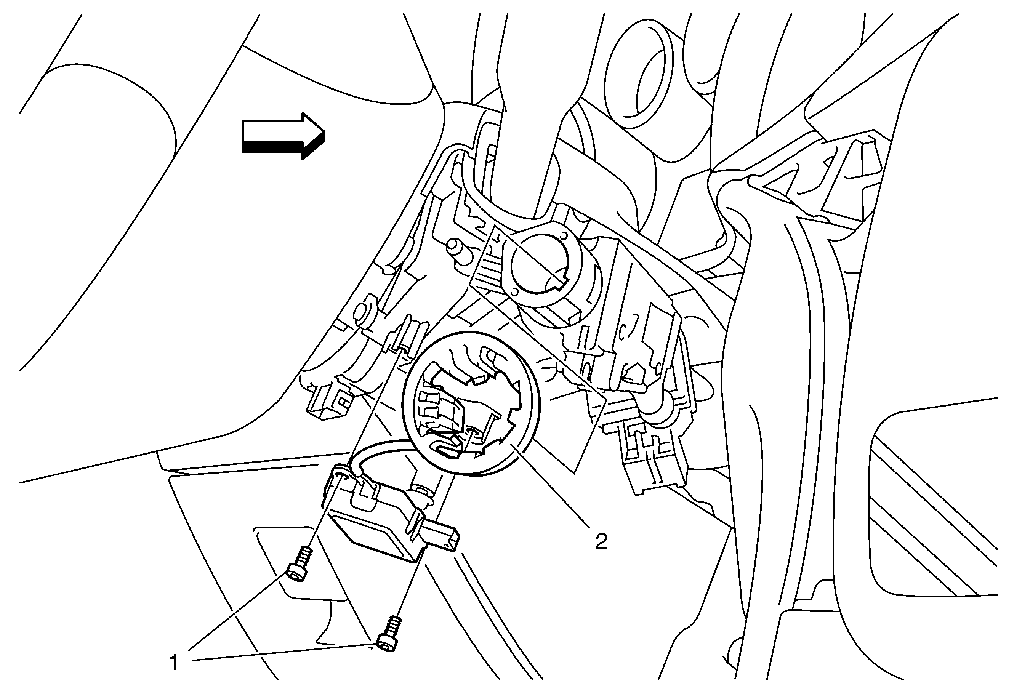

Fig 1: Theft Deterrent Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Theft Deterrent Module Replacement (Without BTM)

Callout	Component Name
Preliminary Procedure  Remove the lower steering column trim cover. Refer to Steering Column Trim Cover Replacement .
1	Theft Deterrent Module Fastener (Qty: 2) Procedure  Disconnect the electrical connector.
2	Theft Deterrent Module Procedure  Release the theft deterrent module from the ignition switch.
