Engine Components - Front (LDK)

Items
1: B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LUK)B47B Fuel Rail Pressure Sensor LHU/LDK
2: B68A Knock Sensor 1 (LHU/ LDK) B68A Knock Sensor 1 LHU/LDK
3: Q38 Throttle Body Q38 Throttle Body (LAF/LDK)Q38 Throttle Body (LHU)Q38 Throttle Body (LLU)Q38 Throttle Body (LTD)Q38 Throttle Body (LUK)
4: B68B Knock Sensor 2 (LHU/ LDK) B68B Knock Sensor 2 LHU/LDK
5: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LLU)B37 Engine Oil Pressure Switch LUK/LHU/LAF/LDK/LTD
6: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LDK)B26 Crankshaft Position Sensor (LLU)B26 Crankshaft Position Sensor (LTD)B26 Crankshaft Position Sensor LAF/LUK B26 Crankshaft Position Sensor LHU
7: M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X1 M64 Starter Motor X1 (LLU)M64 Starter Motor X2 M64 Starter Motor X2 (Generator Harness) (LAF)M64 Starter Motor X2 (Positive Battery Cable) (LAF)
8: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LLU)B35 Engine Oil Level Switch LHU/LDK
9: B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor (LDK)B65 Intake Manifold Pressure and Air Temperature Sensor (LLU)
10: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LDK/LLU)Q2 A/C Compressor Clutch (LTD/LAF)Q2 A/C Compressor Clutch (LUK/LHU)
11: G13 Generator G13 Generator X1 LHU/LDK G13 Generator X1 LLU G13 Generator X1 LTD G13 Generator X2

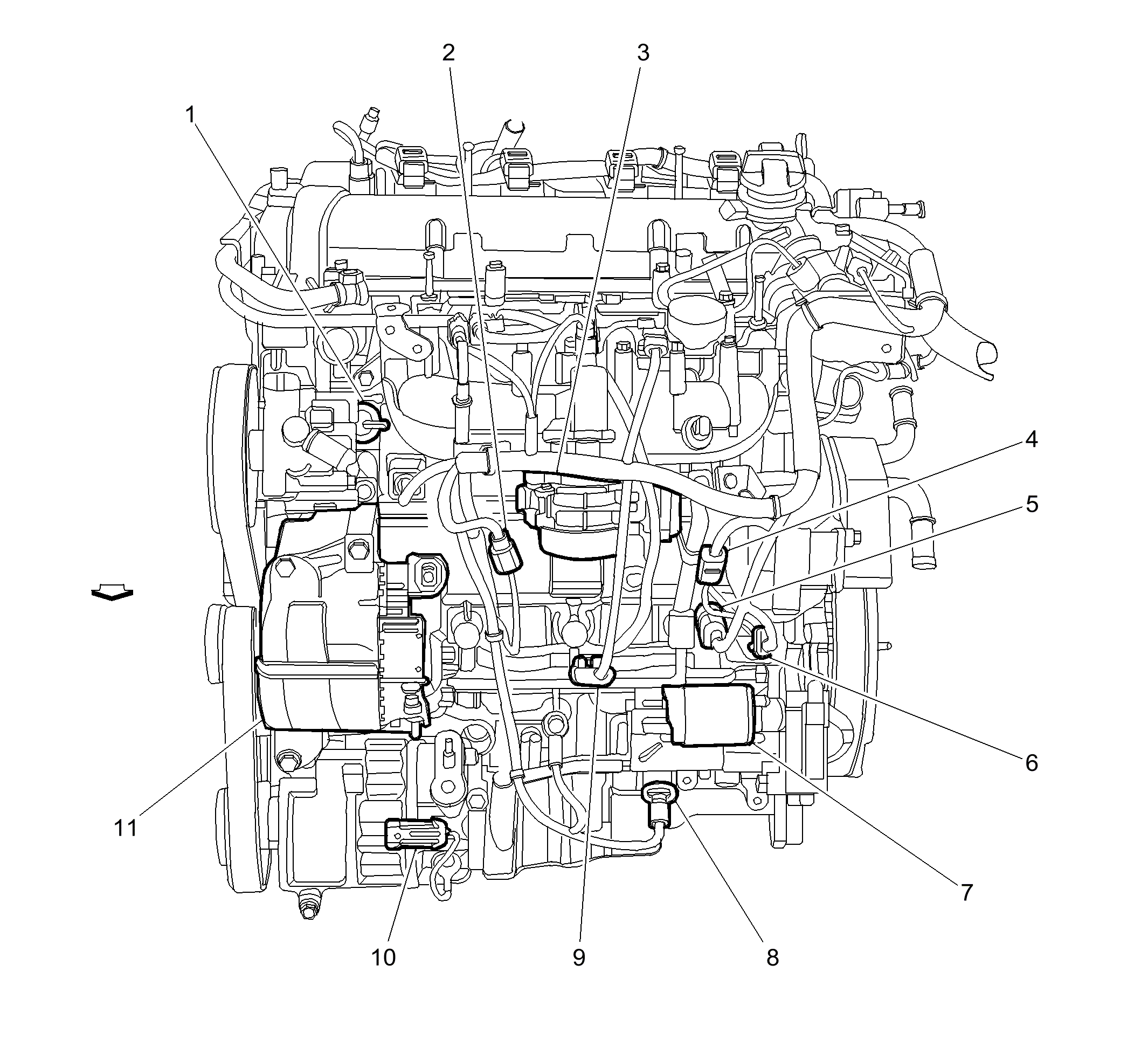

Fig 1: Engine Components - Front (LDK)

Courtesy of GENERAL MOTORS COMPANY
