Engine Components - Front (LLU)

Items
1: E45 Positive Crankcase Ventilation Heater (LLU) E45 Positive Crankcase Ventilation Heater LLU
2: K35 Ignition Coil Module (LLU) K35 Ignition Control Module (LLU)
3: Q38 Throttle Body Q38 Throttle Body (LAF/LDK)Q38 Throttle Body (LHU)Q38 Throttle Body (LLU)Q38 Throttle Body (LTD)Q38 Throttle Body (LUK)
4: B111B Turbocharger Boost/Intake Air Temperature Sensor (LHU) B111B Turbocharger Boost/Intake Air Temperature Sensor (LHU)
5: E41 Engine Coolant Thermostat Heater (LLU)
6: B23 Camshaft Position Sensor (LLU) B23 Camshaft Position Sensor (LLU)
7: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LLU)B52A Heated Oxygen Sensor 1 LUK/LHU/LAF/LDK/LTD
8: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch (LLU)B37 Engine Oil Pressure Switch LUK/LHU/LAF/LDK/LTD
9: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (LHU/LUK)
10: Q42 Turbocharger Wastegate Solenoid Valve (LHU/ LDK/ LLU) Q42 Turbocharger Wastegate Solenoid Valve (LHU)Q42 Turbocharger Wastegate Solenoid Valve (LLU)

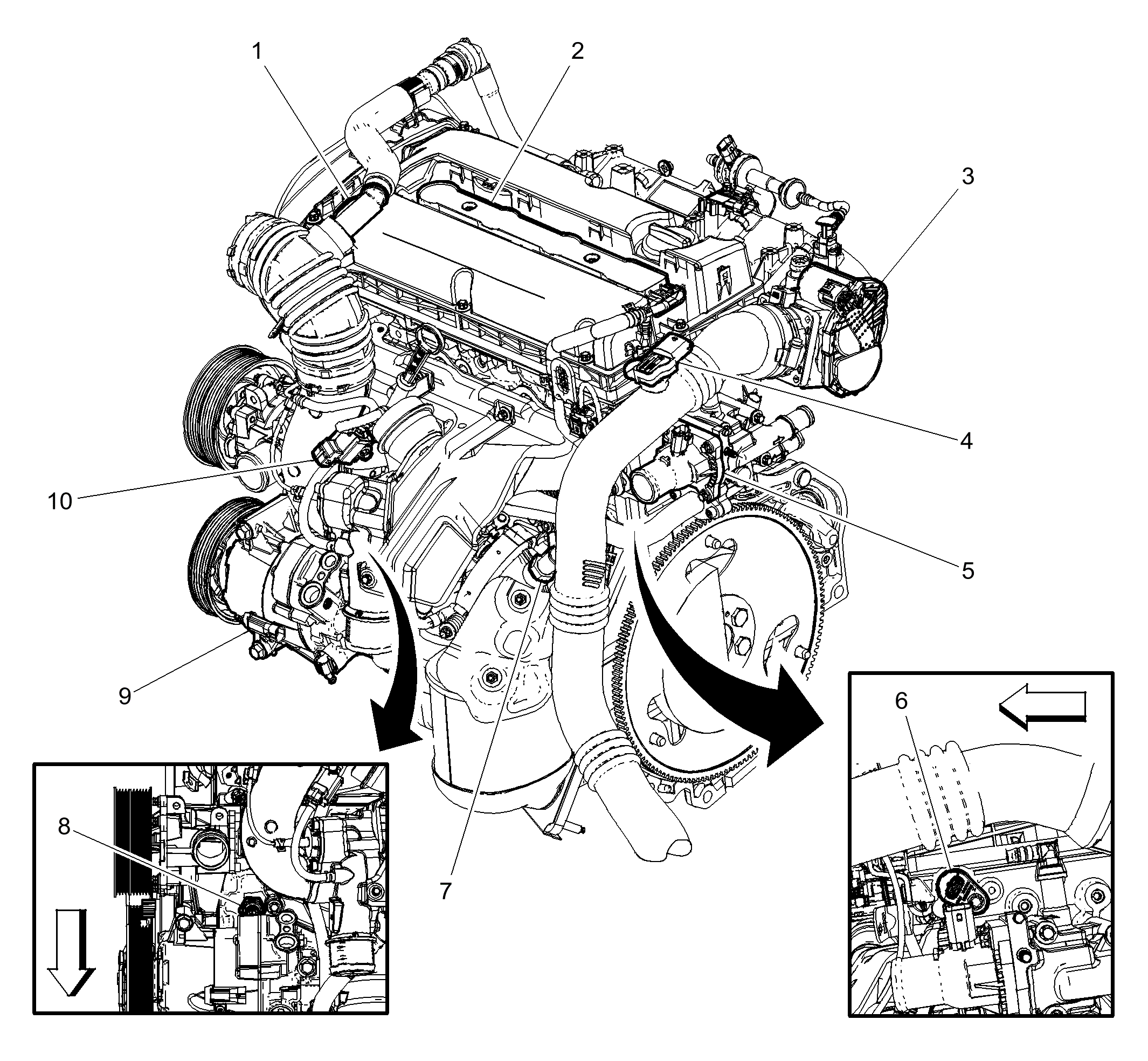

Fig 1: Engine Components - Front (LLU)

Courtesy of GENERAL MOTORS COMPANY
