Engine Components - Rear (LAF)

Items
1: T8D Ignition Coil 4 T8D Ignition Coil 4
2: T8C Ignition Coil 3 T8C Ignition Coil 3
3: T8B Ignition Coil 2 T8B Ignition Coil 2
4: T8A Ignition Coil 1 T8A Ignition Coil 1
5: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake (LAF)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LDK)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LDK/LTD)Q6F Camshaft Position Actuator Solenoid Valve - Intake (LUK/LHU)
6: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LAF)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LDK)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTD)Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LUK/LHU)
7: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 (LLU)B52A Heated Oxygen Sensor 1 LUK/LHU/LAF/LDK/LTD
8: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LLU)B52B Heated Oxygen Sensor 2 (LTD)B52B Heated Oxygen Sensor 2 LUK/LHU/LAF/LDK
9: B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LDK)B34 Engine Coolant Temperature Sensor (LLU)B34 Engine Coolant Temperature Sensor LAF/LUK B34 Engine Coolant Temperature Sensor LTD
10: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust (LDK)B23E Camshaft Position Sensor - Exhaust (LTD)B23E Camshaft Position Sensor - Exhaust LAF B23E Camshaft Position Sensor - Exhaust LUK/LHU
11: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LAF/LDK/LTD)Q12 Evaporative Emission Purge Solenoid Valve (LLU)Q12 Evaporative Emission Purge Solenoid Valve (LUK/LHU)

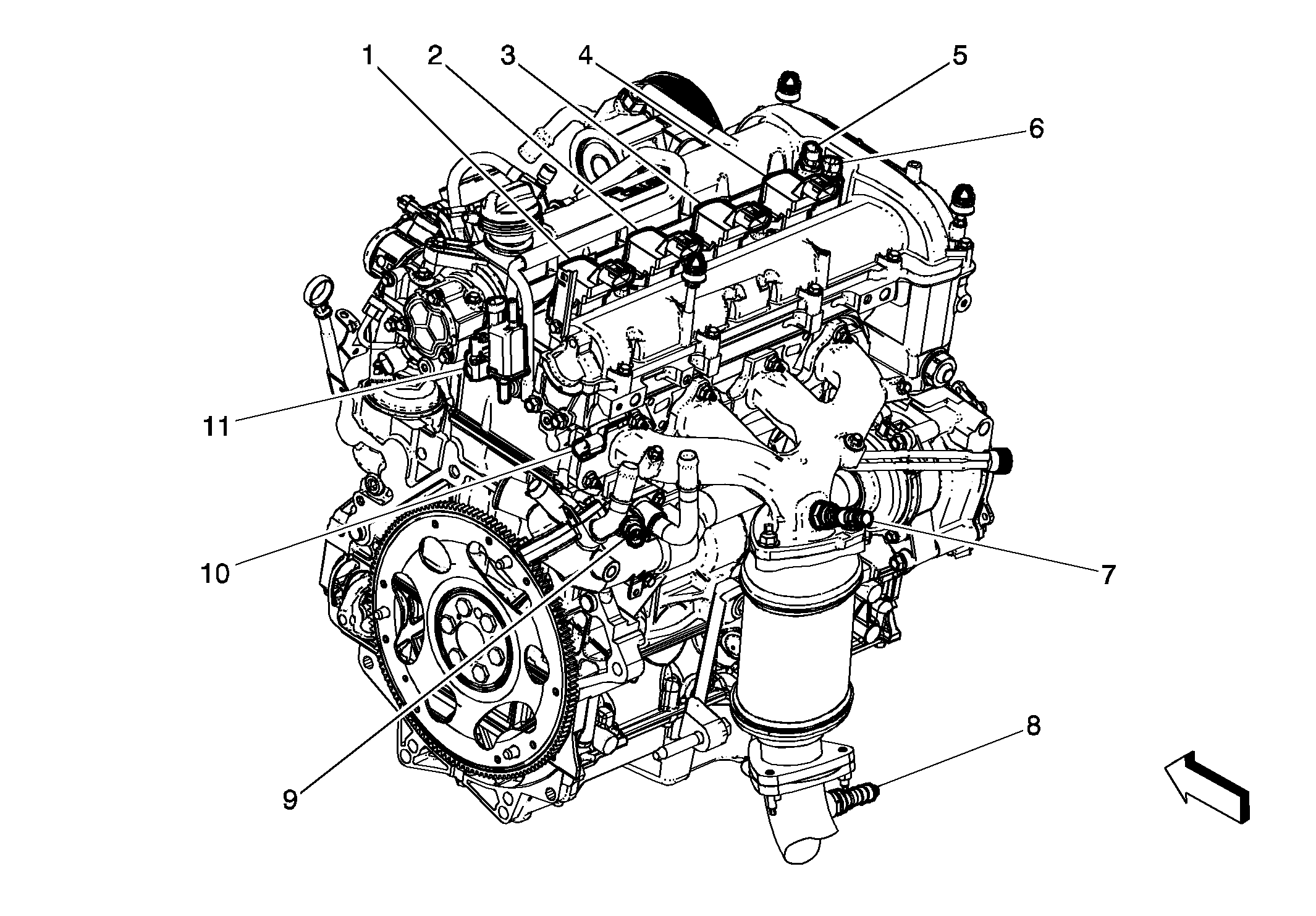

Fig 1: Left Rear Engine Components (LEA)

Courtesy of GENERAL MOTORS COMPANY
