Engine Components - Rear (LLU)

Items
1: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LHU/LDK)Q17D Fuel Injector 4 (LLU)Q17D Fuel Injector 4 (LTD)Q17D Fuel Injector 4 (LUK/LAF)
2: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LHU/LDK)Q17C Fuel Injector 3 (LLU)Q17C Fuel Injector 3 (LTD)Q17C Fuel Injector 3 (LUK/LAF)
3: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LHU/LDK)Q17B Fuel Injector 2 (LLU)Q17B Fuel Injector 2 (LTD)Q17B Fuel Injector 2 (LUK/LAF)
4: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LHU/LDK)Q17A Fuel Injector 1 (LLU)Q17A Fuel Injector 1 (LTD)Q17A Fuel Injector 1 (LUK/LAF)
5: B17 Barometric Pressure Sensor B17 Barometric Pressure Sensor (LDK)
6: G13 Generator G13 Generator X1 LHU/LDK G13 Generator X1 LLU G13 Generator X1 LTD G13 Generator X2
7: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LLU)B35 Engine Oil Level Switch LHU/LDK
8: B68 Knock Sensor B68 Knock Sensor (LLU)B68 Knock Sensor LUK/LAF/LTD
9: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 (LLU)B52B Heated Oxygen Sensor 2 (LTD)B52B Heated Oxygen Sensor 2 LUK/LHU/LAF/LDK
10: M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X1 M64 Starter Motor X1 (LLU)M64 Starter Motor X2 M64 Starter Motor X2 (Generator Harness) (LAF)M64 Starter Motor X2 (Positive Battery Cable) (LAF)
11: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LDK)B26 Crankshaft Position Sensor (LLU)B26 Crankshaft Position Sensor (LTD)B26 Crankshaft Position Sensor LAF/LUK B26 Crankshaft Position Sensor LHU
12: Q40 Turbocharger Bypass Solenoid Valve (LHU/ LDK/ LLU) Q40 Turbocharger Bypass Solenoid Valve (LHU)Q40 Turbocharger Bypass Solenoid Valve (LLU)
13: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LAF/LDK/LTD)Q12 Evaporative Emission Purge Solenoid Valve (LLU)Q12 Evaporative Emission Purge Solenoid Valve (LUK/LHU)
14: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor LHU/LDK B74 Manifold Absolute Pressure Sensor LUK/LTD

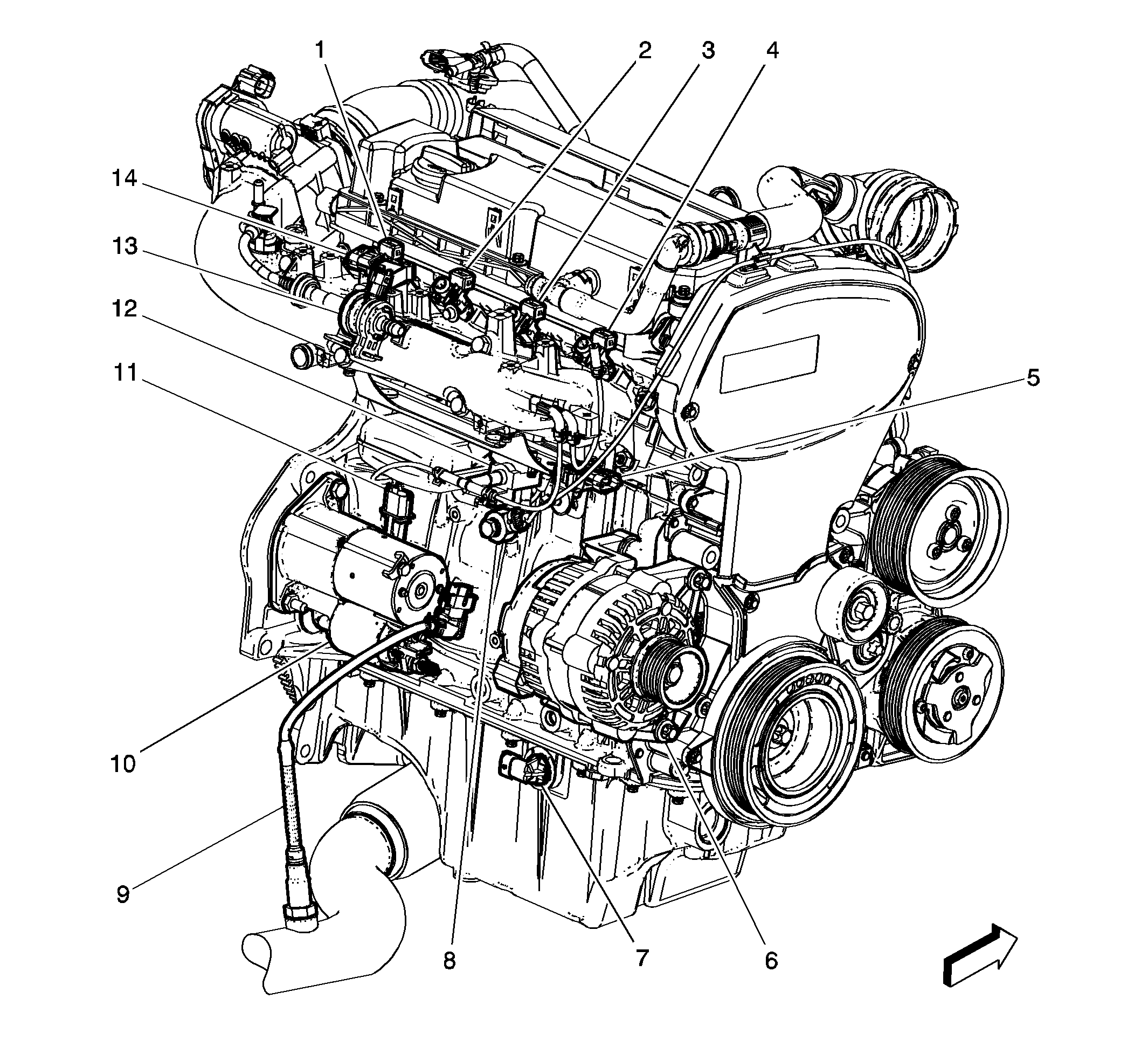

Fig 1: Engine Components - Rear (LLU)

Courtesy of GENERAL MOTORS COMPANY
