Keyless Entry Receiver: Diagrams

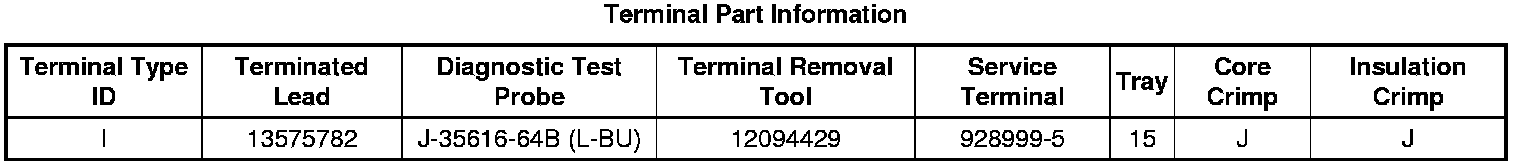

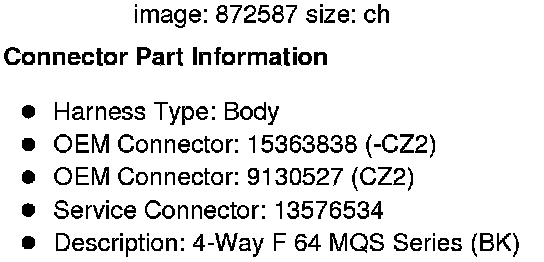

Component Connector End Views

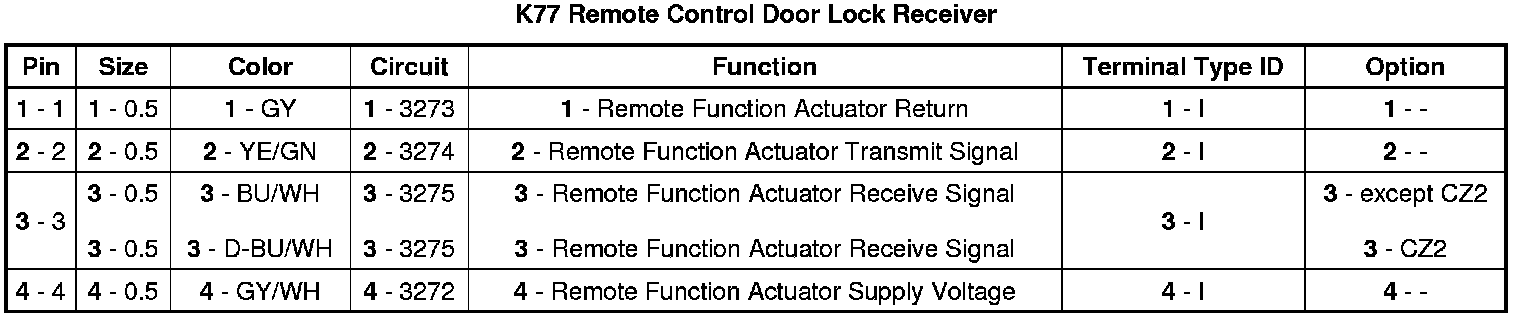

K77 Remote Control Door Lock Receiver
