Multimedia Player Interface Module X1 (KTA)

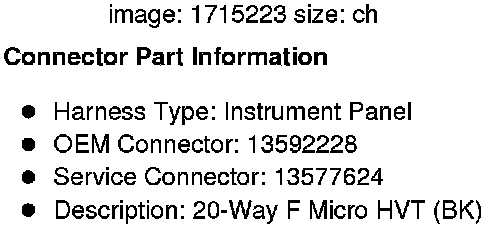

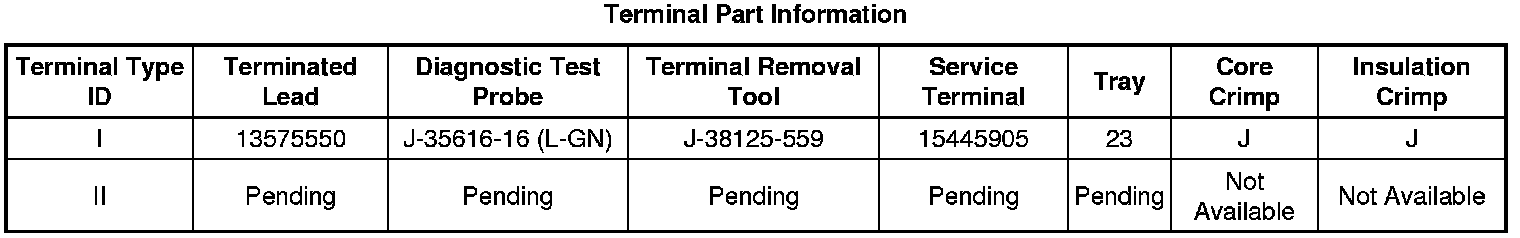

Component Connector End Views

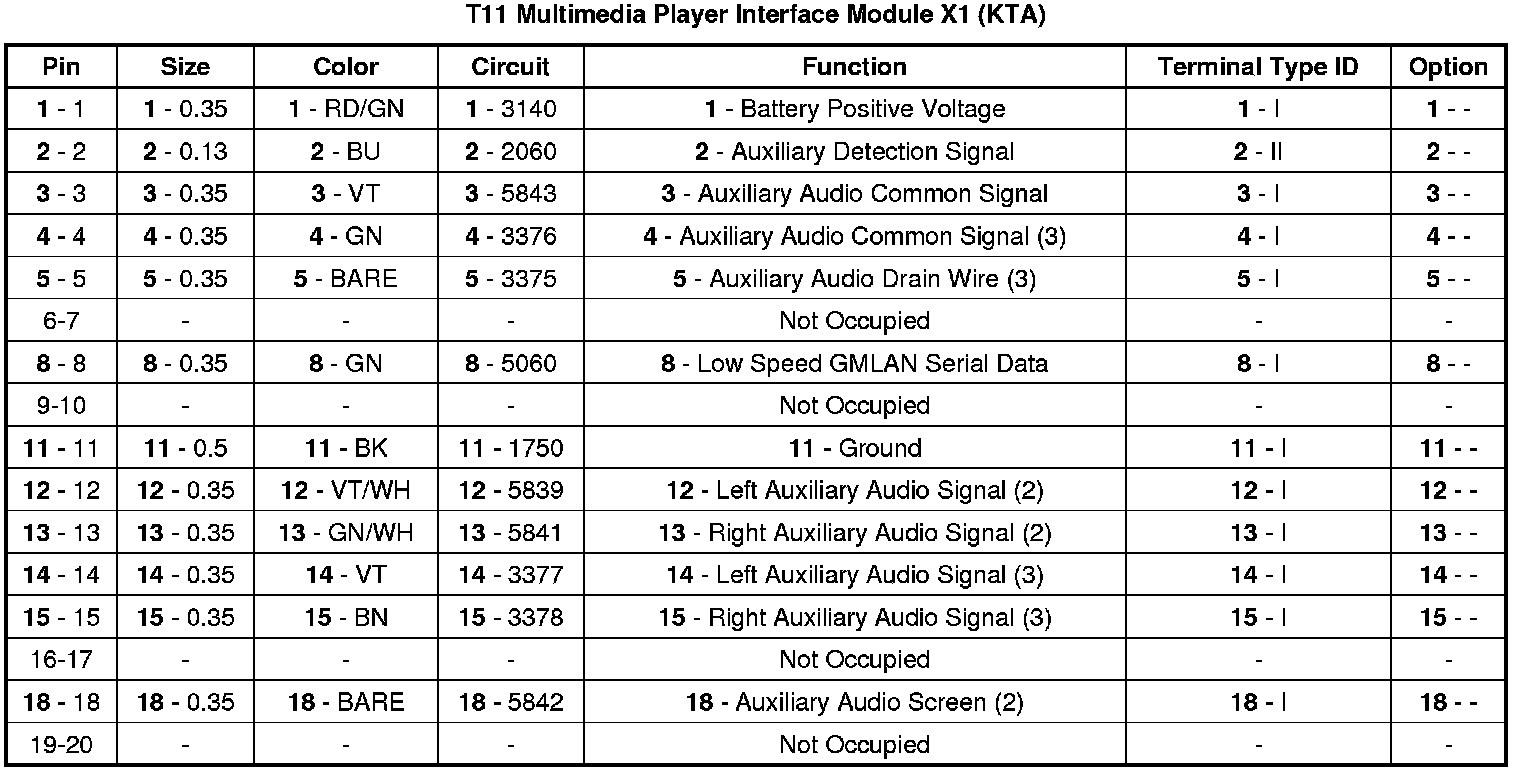

T11 Multimedia Player Interface Module X1 (KTA)
