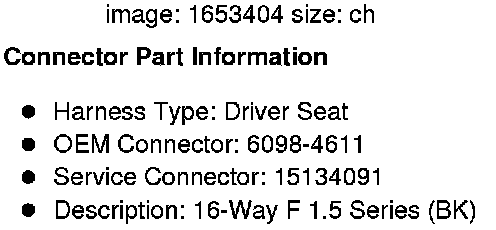

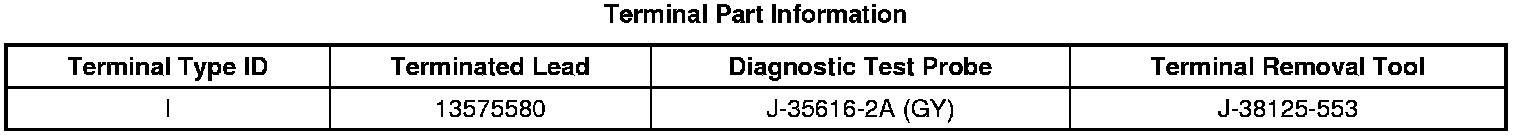

Seat Memory Control Module X3 A45/CZ2 KA1
Component Connector End Views

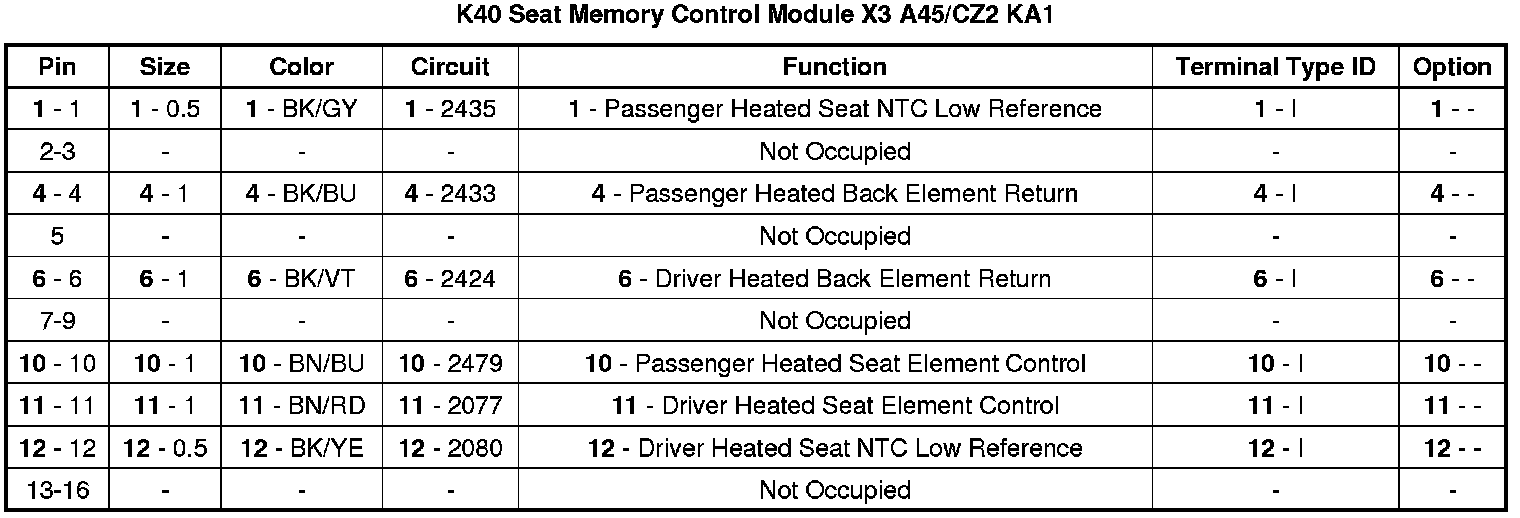

K40 Seat Memory
Control Module
X3 A45/CZ2 KA1
