Home >> Buick >> 2013 >> Regal L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Control Module >> Seat Memory Control Module X4 A45/CZ2
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

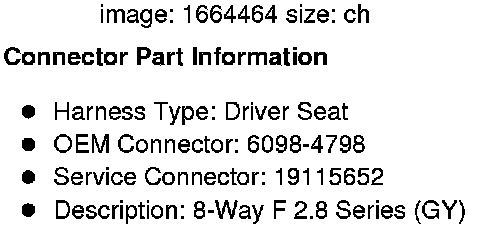

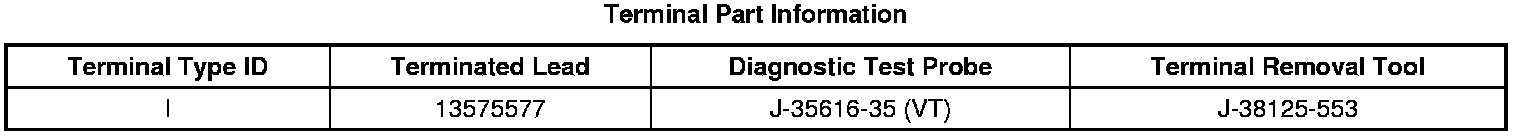

Seat Memory Control Module X4 A45/CZ2





Component Connector End Views

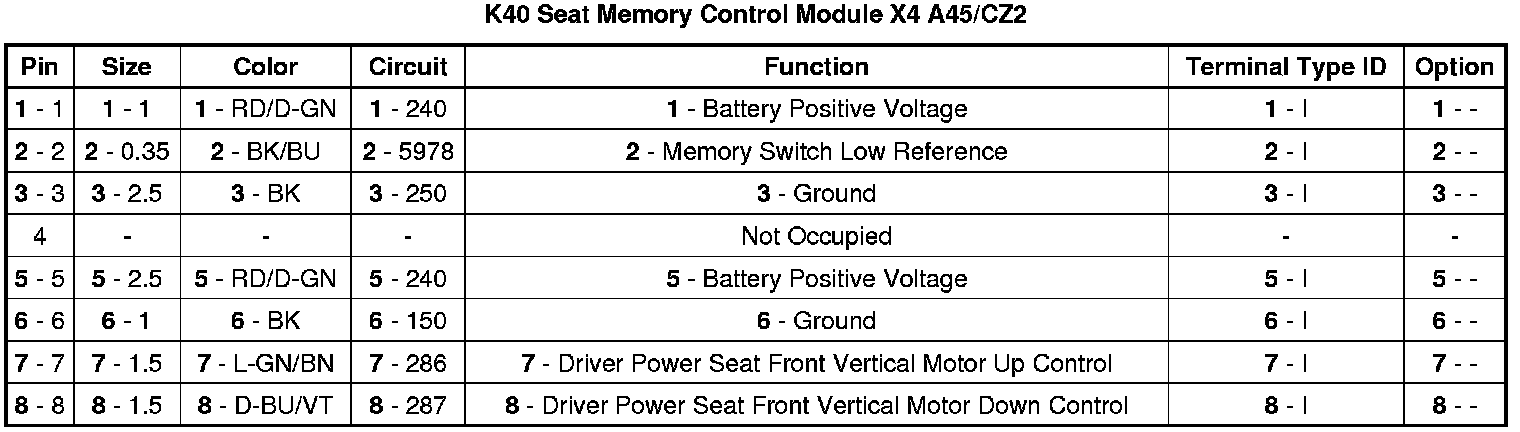

K40 Seat Memory Control Module X4 A45/CZ2
