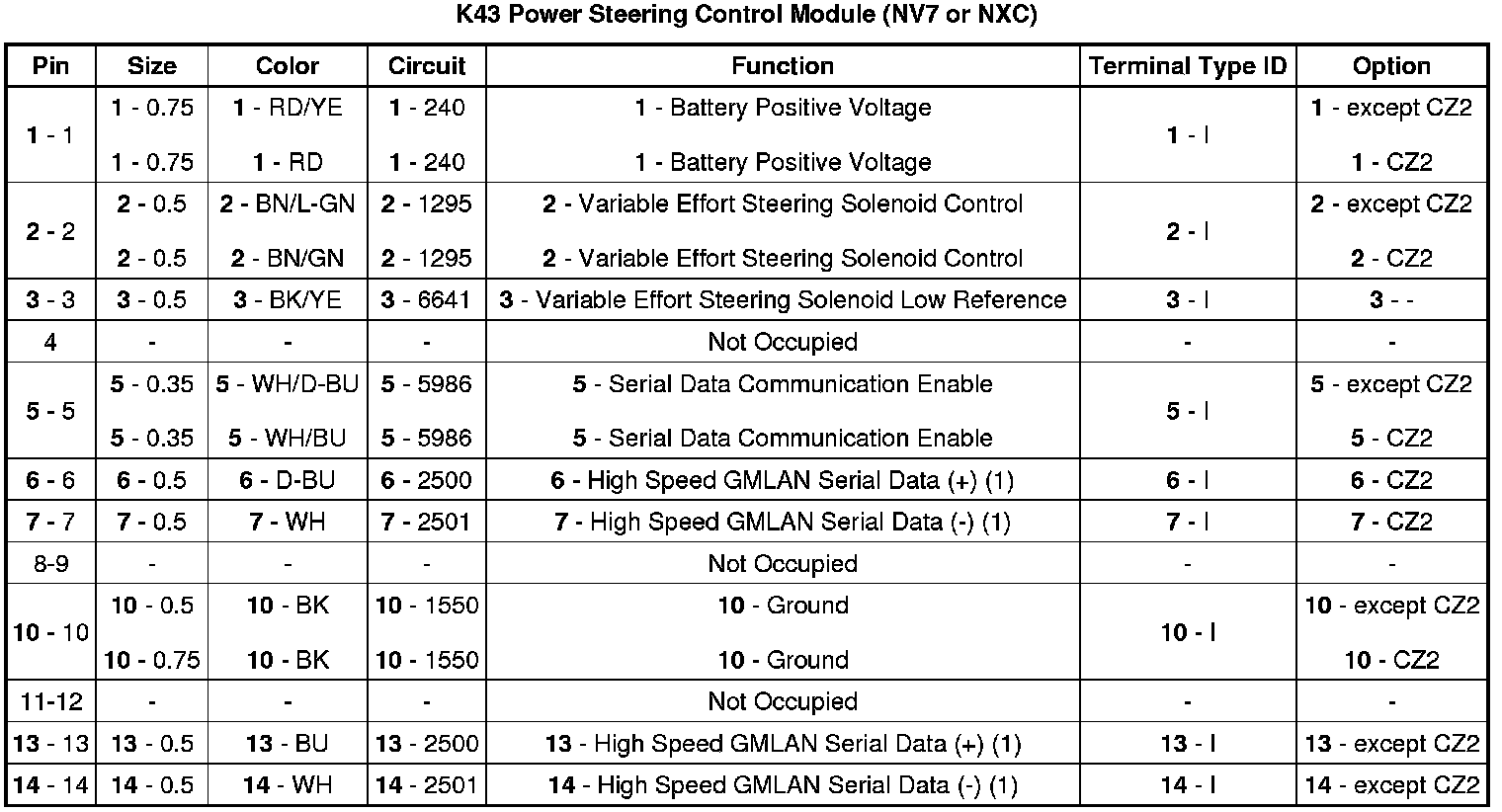

Power Steering Control Module (NV7 or NXC)
Component Connector End Views
K43 Power Steering
Control Module
(NV7 or NXC)
