Steering Wheel Heater Control Module

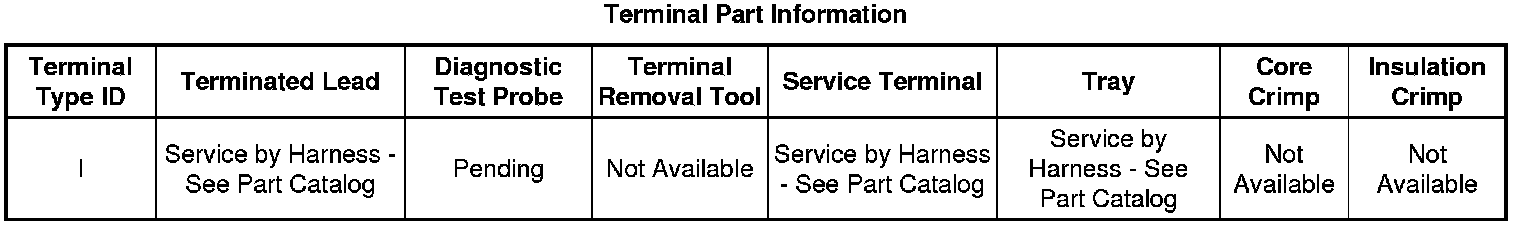

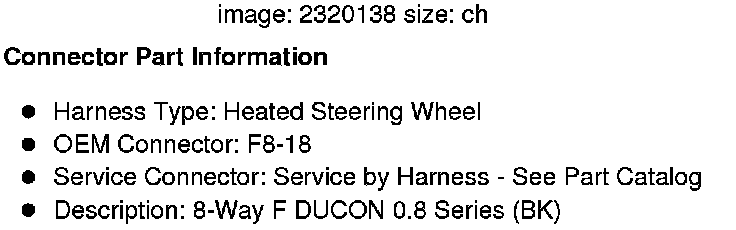

Component Connector End Views

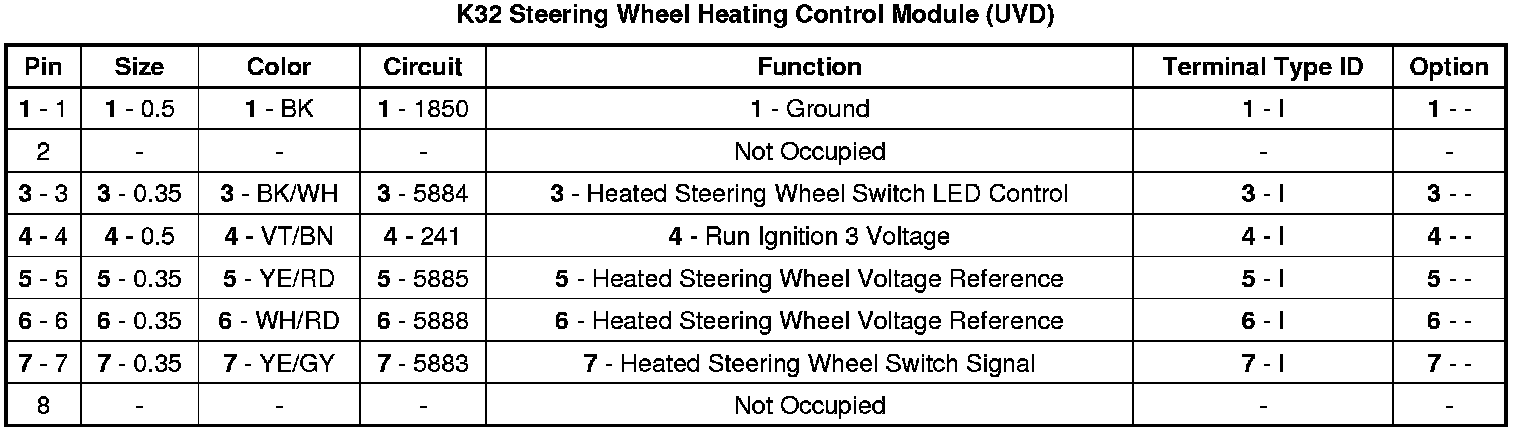

K32 Steering Wheel Heating Control Module (UVD)
