Absolute Pressure Sensor: Diagrams

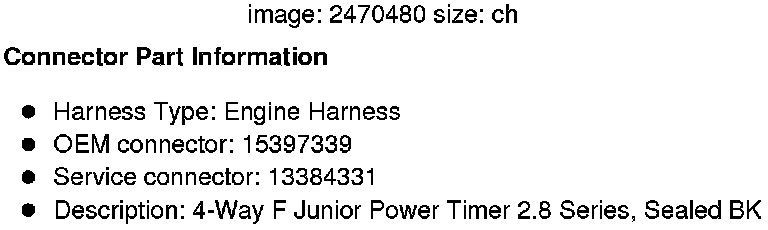

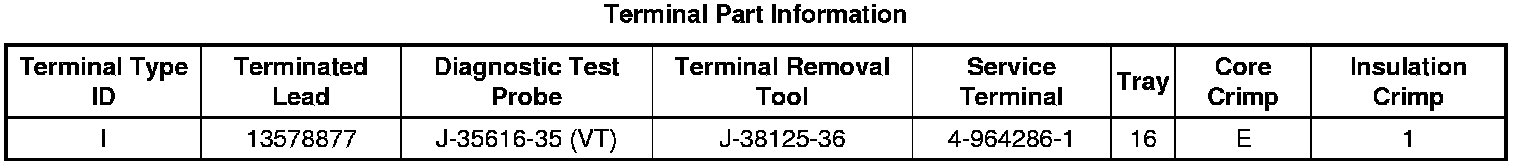

Component Connector End Views

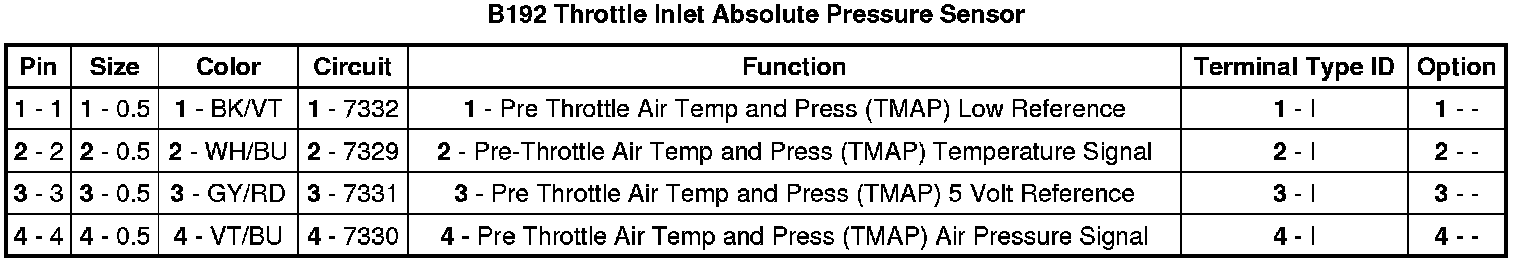

B192 Throttle Inlet Absolute Pressure Sensor
