Power, Ground, Serial Data, Antennas and Display (UAG)

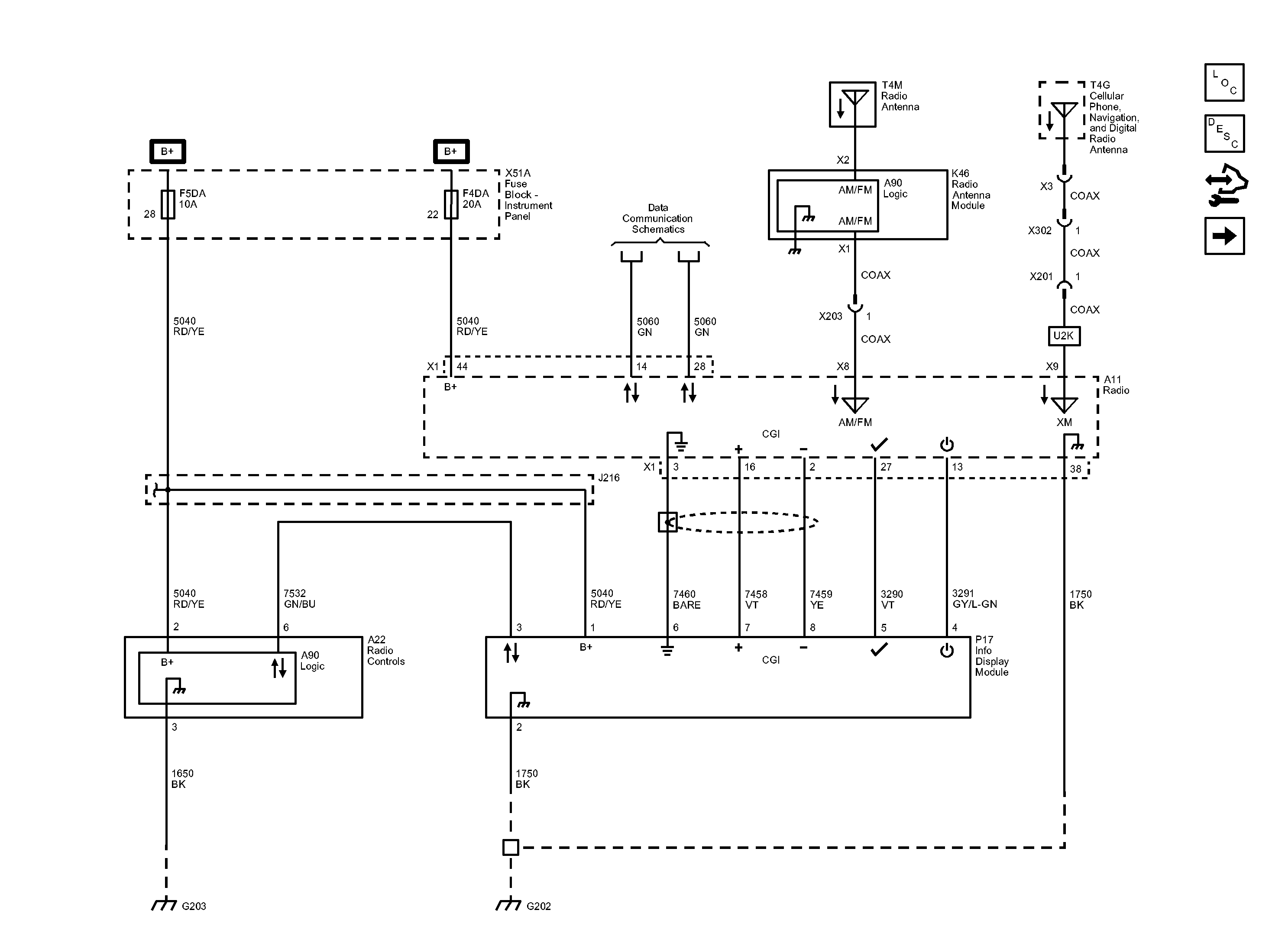

Fig 1: Power, Ground, Serial Data, Antennas and Display Wiring Schematic (UAG)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
