Removal Procedure

  1. Open the hood.
  2. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
    3. Fig 1: Battery Fuse Box Cover
    GM2577153Courtesy of GENERAL MOTORS COMPANY
  3. Unlock the retaining tab (1) on the battery fuse box cover.
  4. Use a suitable screwdriver (2) to unlock the clip (4) through the window (3).

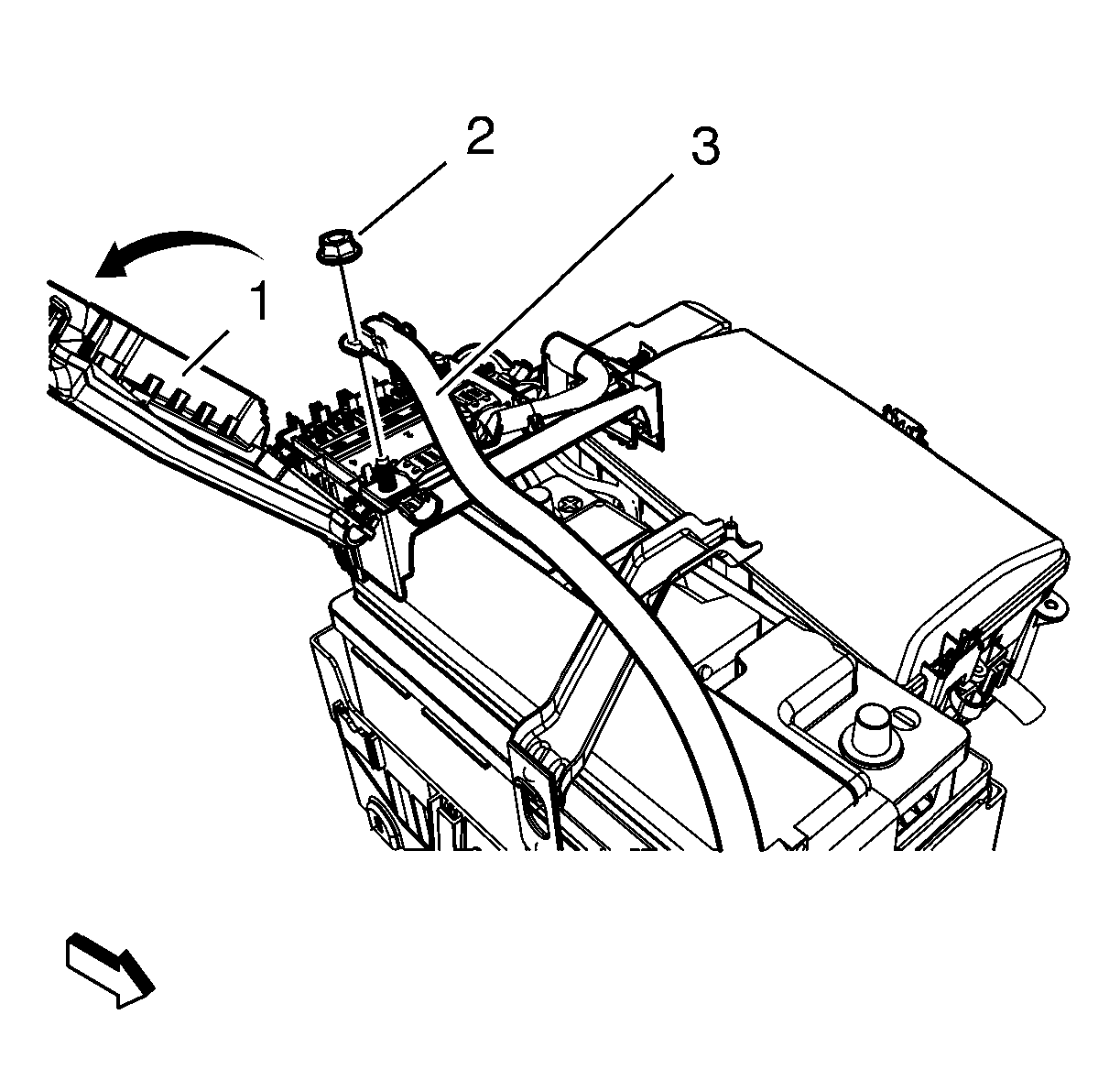

    5. Fig 2: View Of Fuse Box Cover, Battery Cable And Nut
    GM2027594Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Pull the battery fuse box housing. DO NOT pull the flap.

  5. Open the battery fuse box cover (1).

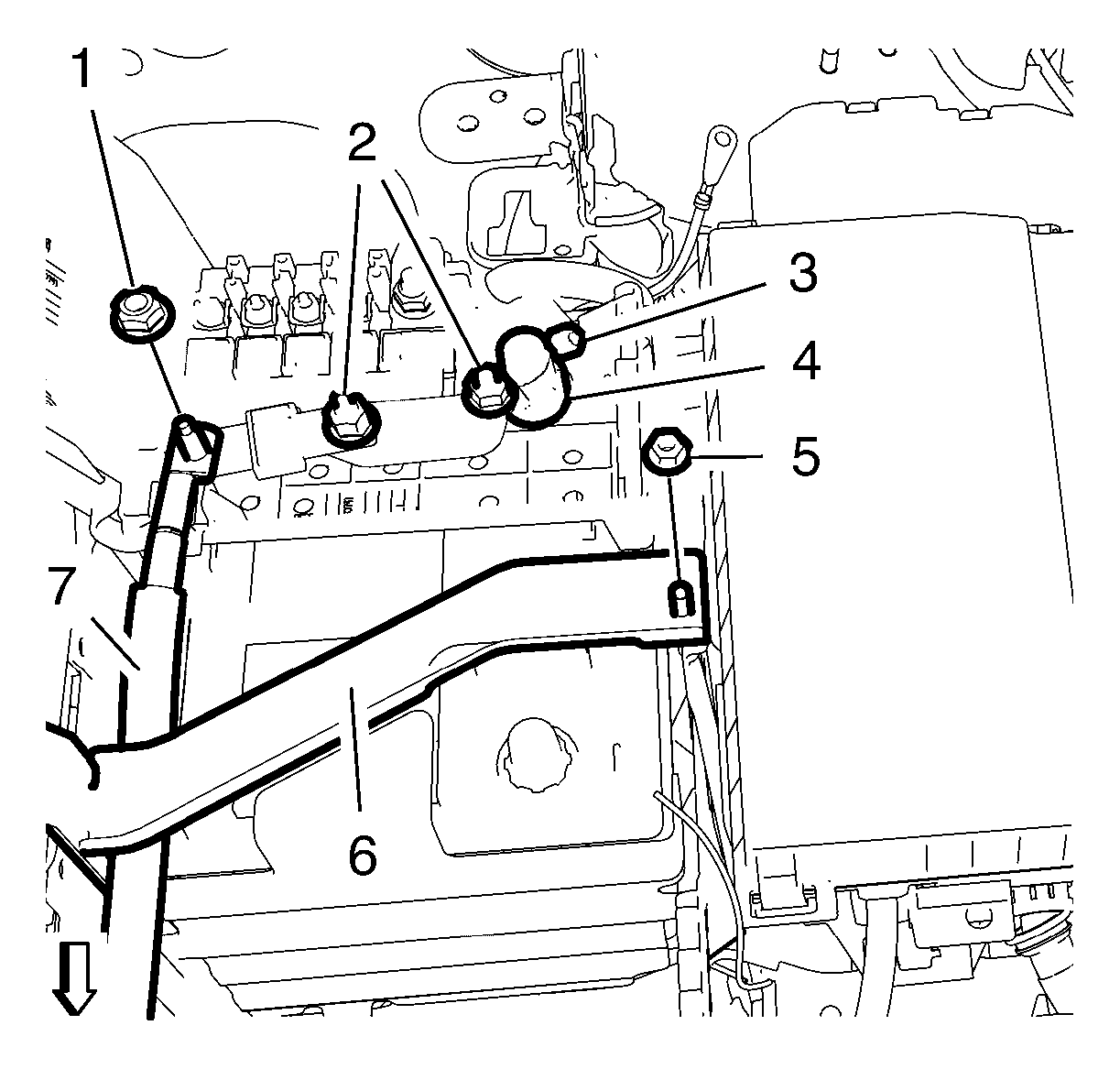

    6. Fig 3: Starter Cable, Battery Positive Cable And Retainer
    GM2372588Courtesy of GENERAL MOTORS COMPANY
  6. Remove the battery hold down retainer nut (5).
  7. Remove the battery hold down retainer (6).
  8. Remove the battery positive cable to starter cable nut (1).
  9. Remove the battery positive cable to starter cable (7).
  10. Loosen the 2 battery positive plate nuts (2).
  11. Loosen the battery positive cable nut (3).
  12. Remove the battery positive cable (4).

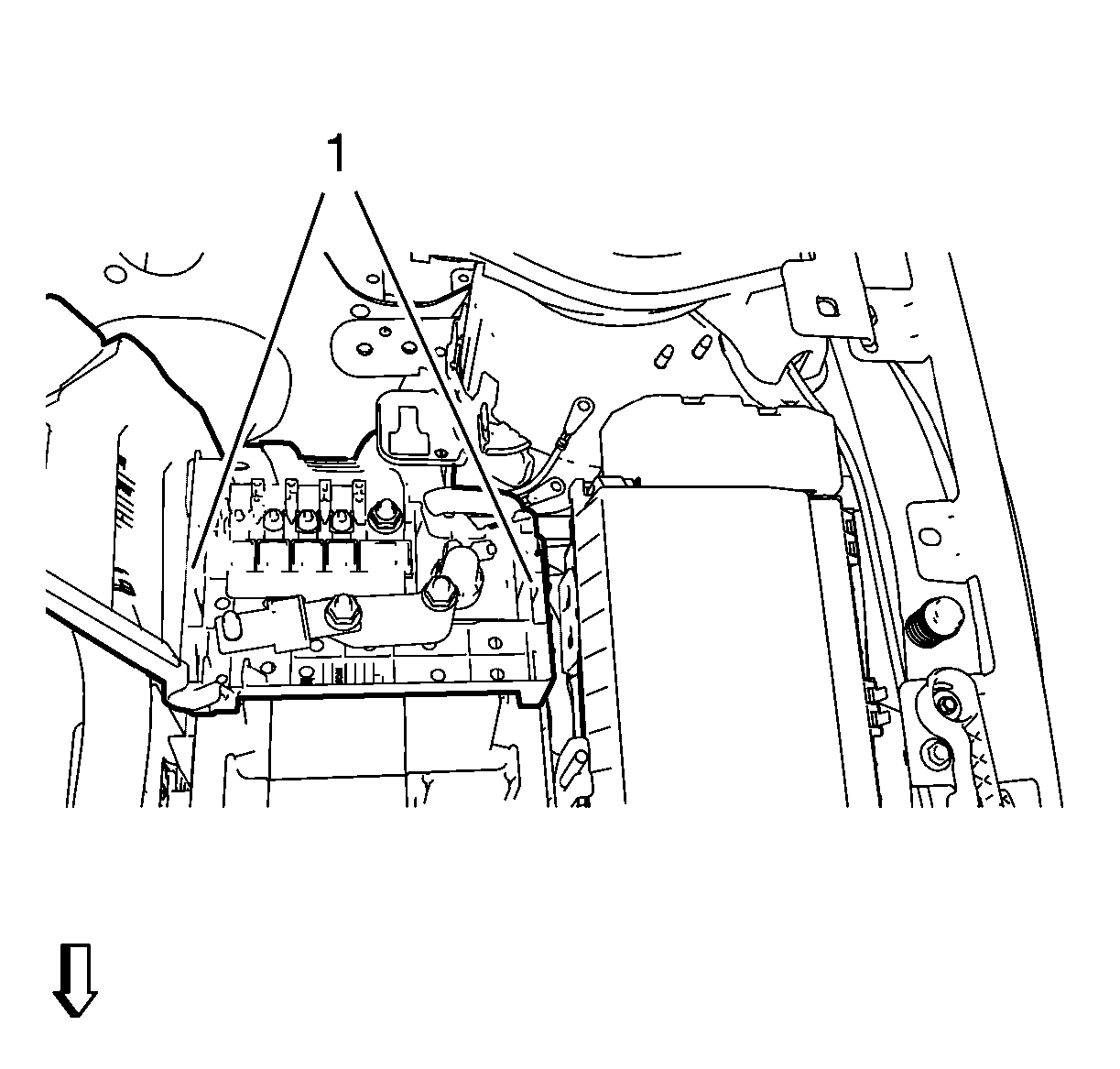

    13. Fig 4: Fuse Block Retainer Clips
    GM2191743Courtesy of GENERAL MOTORS COMPANY
  13. Unclip the battery fuse block retainer clips (1) from the battery and reposition the battery fuse block along with the battery positive cable.

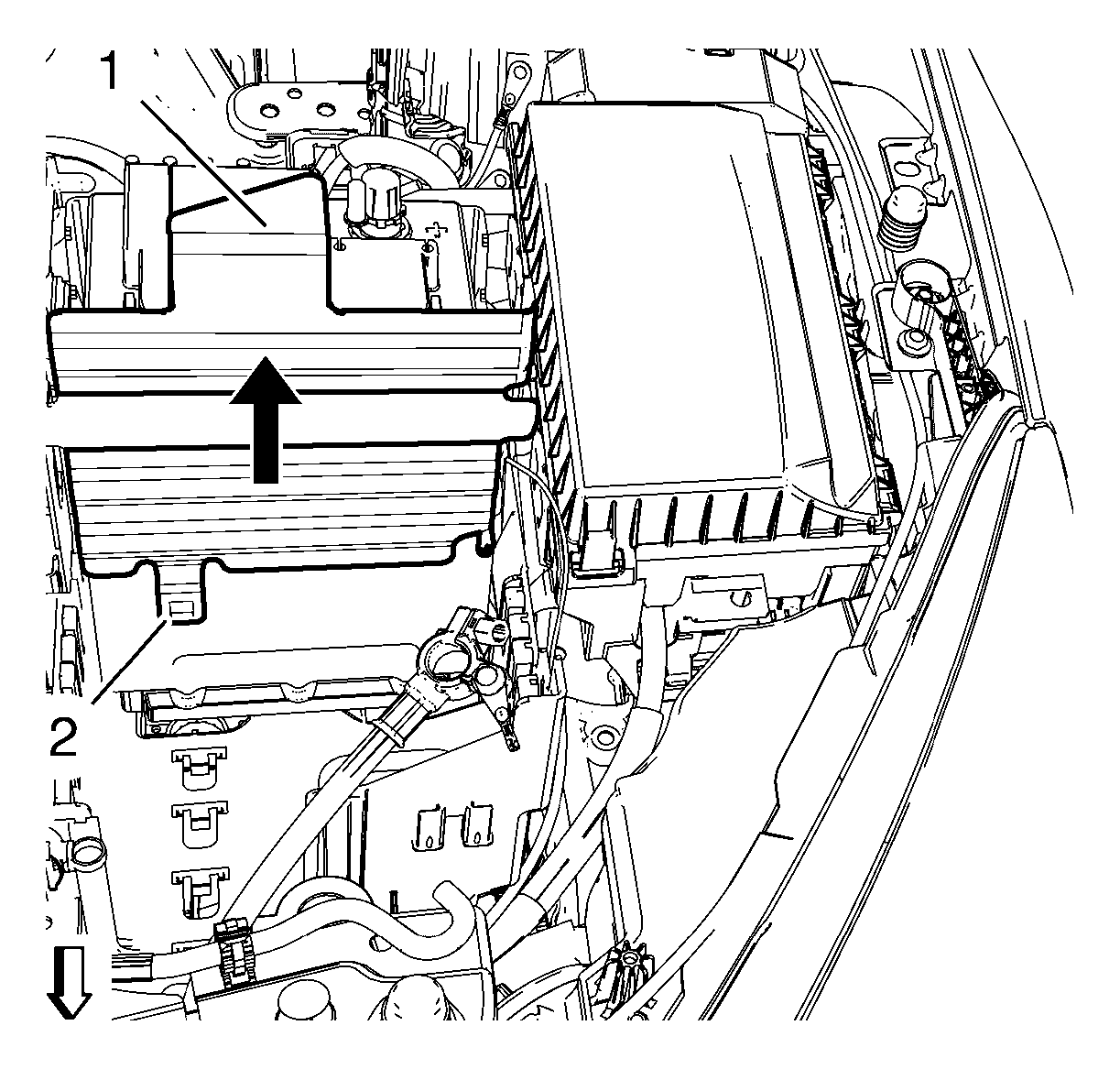

    14. Fig 5: Battery Tray Protector & Retainer
    GM2191744Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Only necessary if vehicle is equipped with a short battery.

  14. Unclip the battery tray protector retainer (2) from battery tray.
  15. Remove the battery tray protector (1) by moving rearward, in the direction of the arrow.

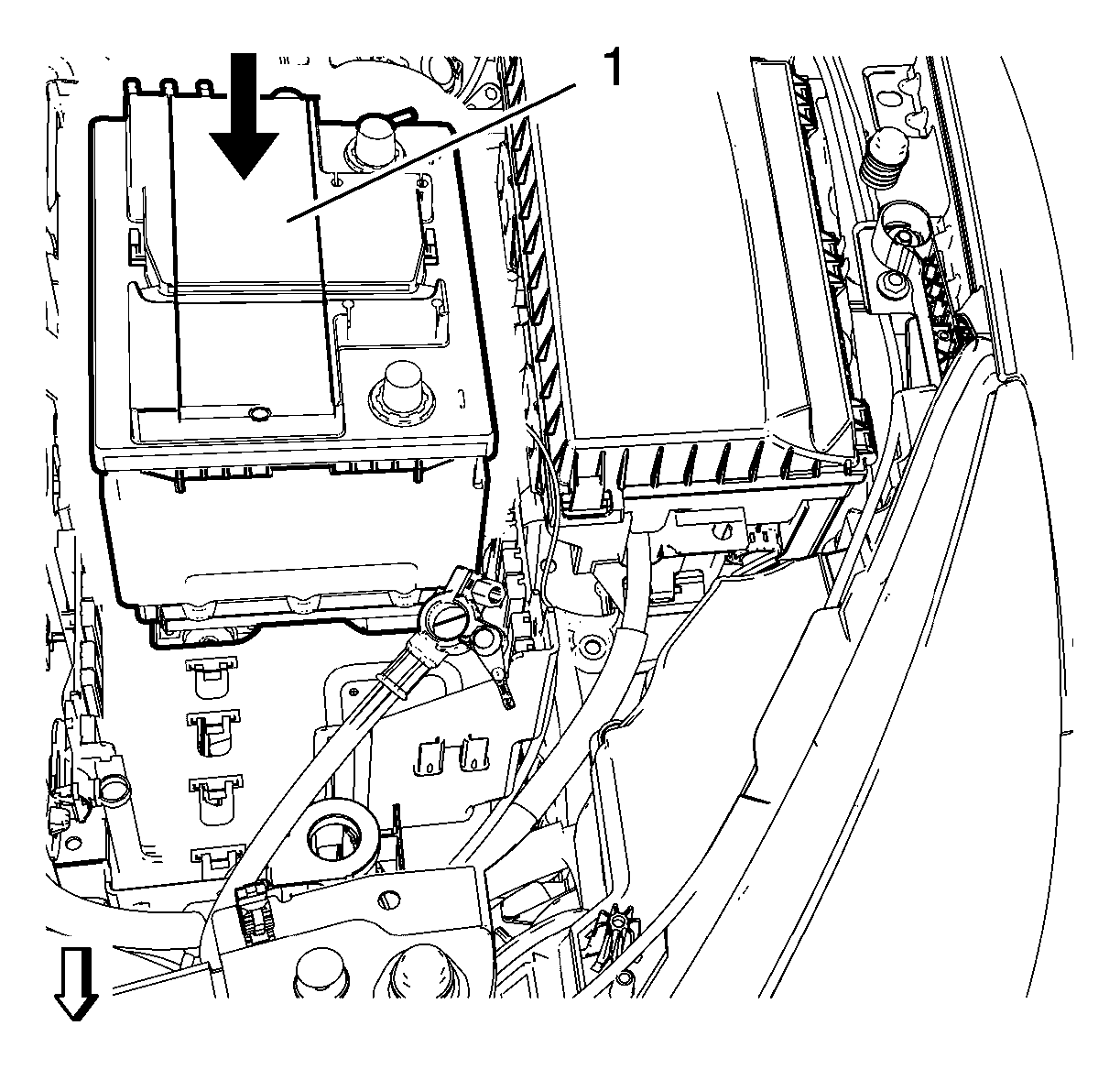

    16. Fig 6: Battery Position
    GM2191745Courtesy of GENERAL MOTORS COMPANY
  16. Move the battery (1) forward, in the direction of the arrow and lift to remove.
