Communication Interface Module Bracket Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

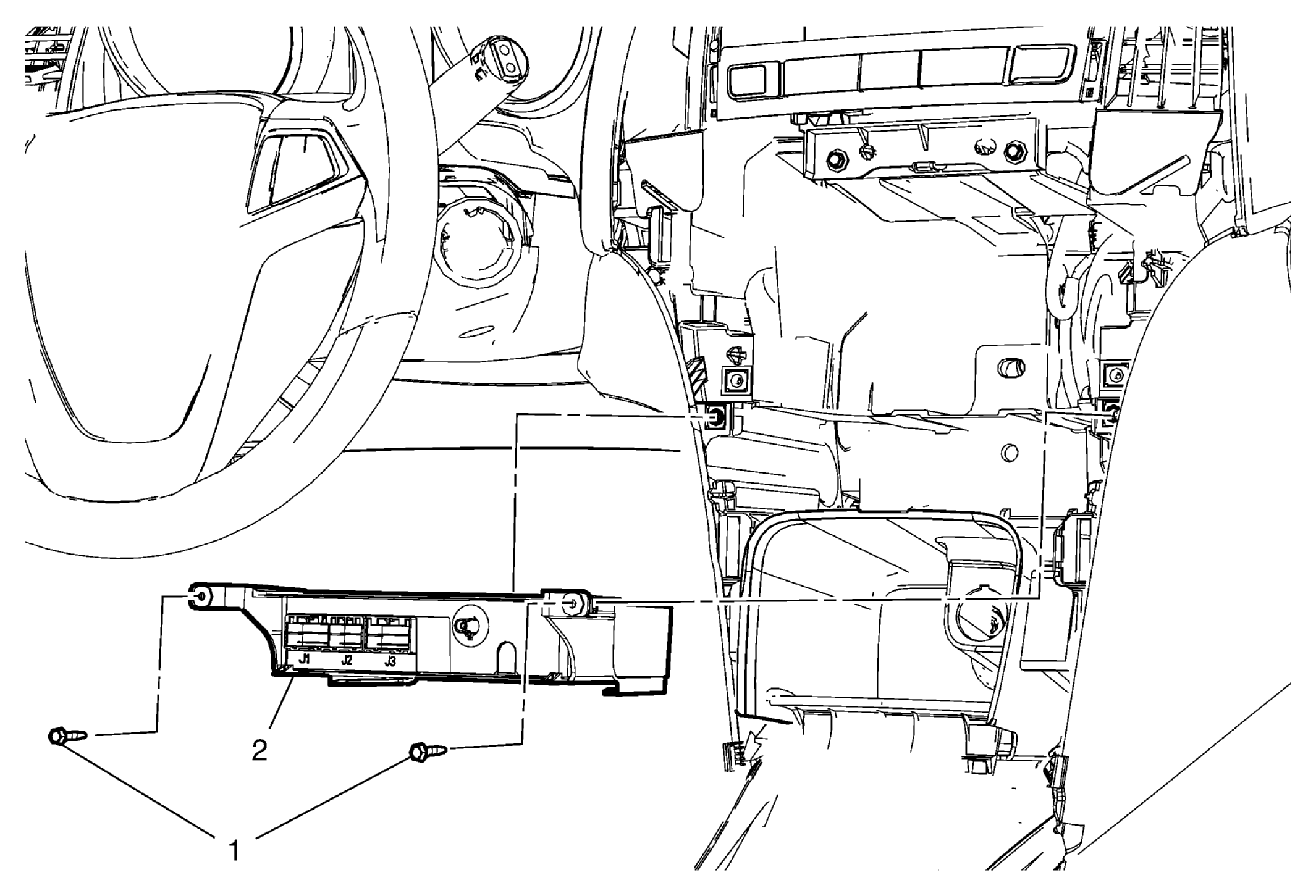

Fig 1: Communication Interface Module Bracket & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the radio control assembly. Refer to Radio Control Assembly Replacement .
1	Communication Interface Module Bracket Bolts (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Communication Interface Module Bracket Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures
Remove the radio control assembly. Refer to Radio Control Assembly Replacement .

Communication Interface Module Bracket Bolts (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Communication Interface Module Bracket

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
