Navigation Signal Splitter Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

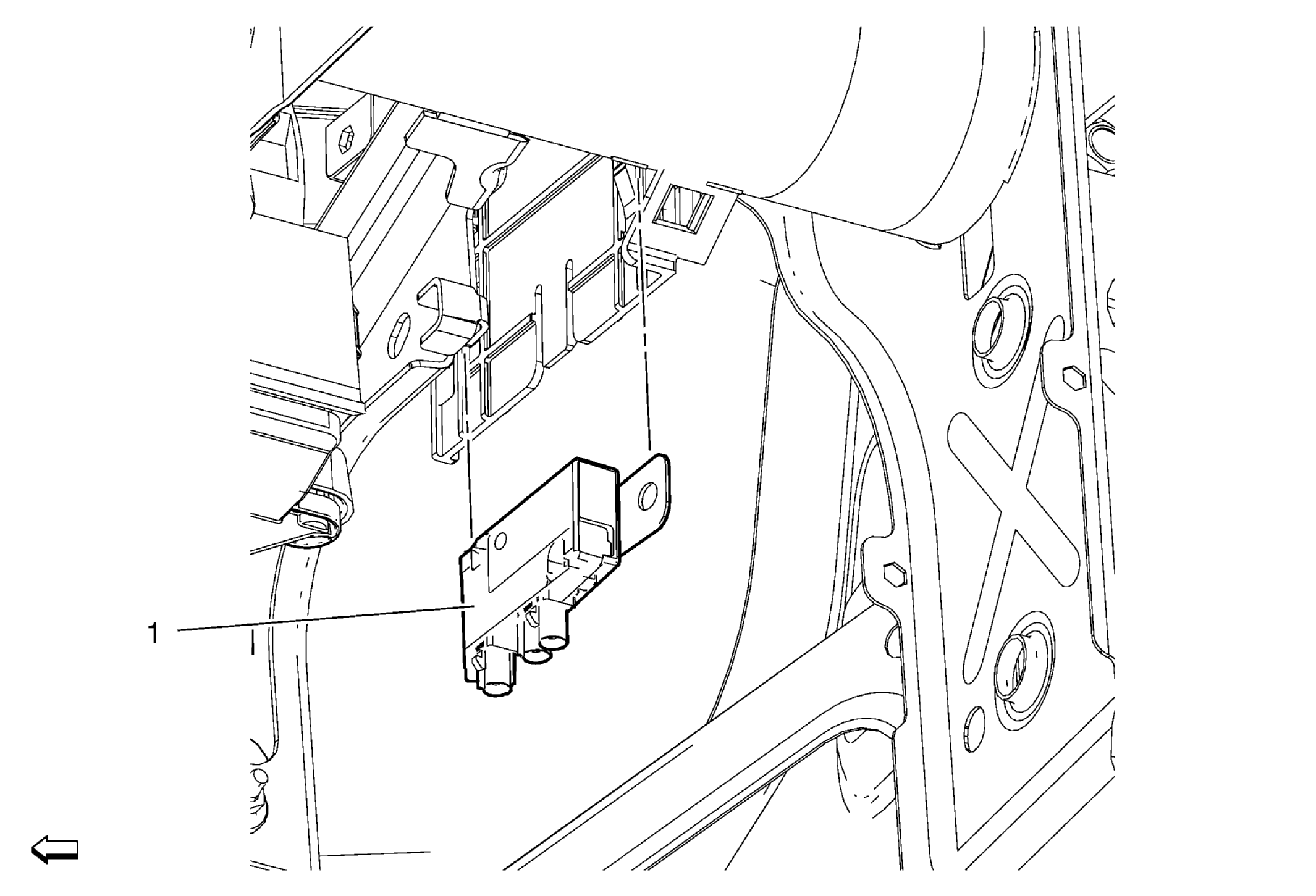

Fig 1: Navigation Signal Splitter
GM2191550Courtesy of GENERAL MOTORS COMPANY
Navigation Signal Splitter Replacement

Callout Component Name
Preliminary Procedure
Remove instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Navigation Signal Splitter
Procedure
Disconnect electrical connector.
