Power, Ground, Serial Data, Microphone, and Display (UE1)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

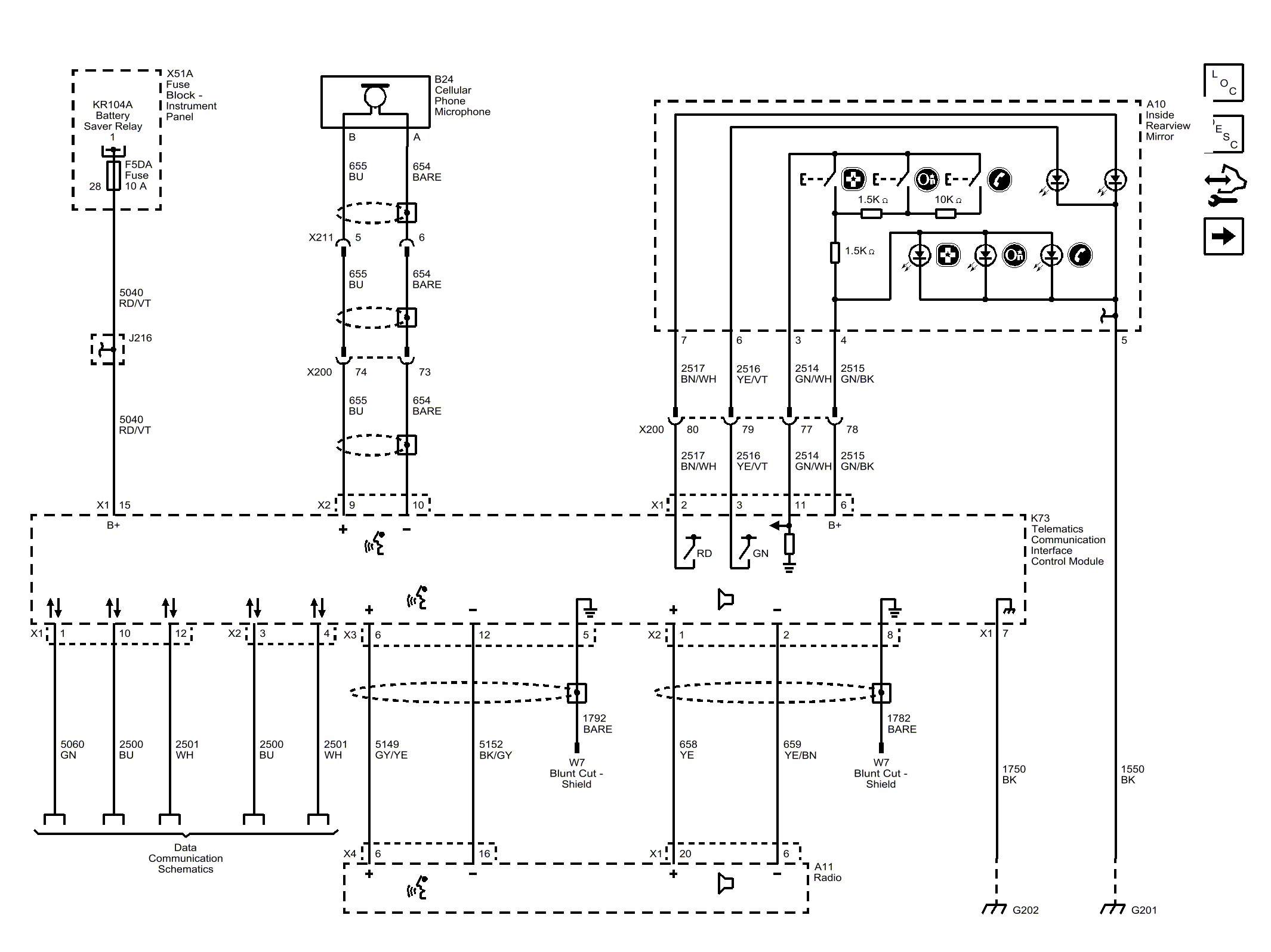

Fig 1: Power, Ground, Serial Data, Microphone, And Display (UE1) Wiring Schematic
GM2689648Courtesy of GENERAL MOTORS COMPANY
