Power, Ground, Serial Data, Antennas, and Display (UAG)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

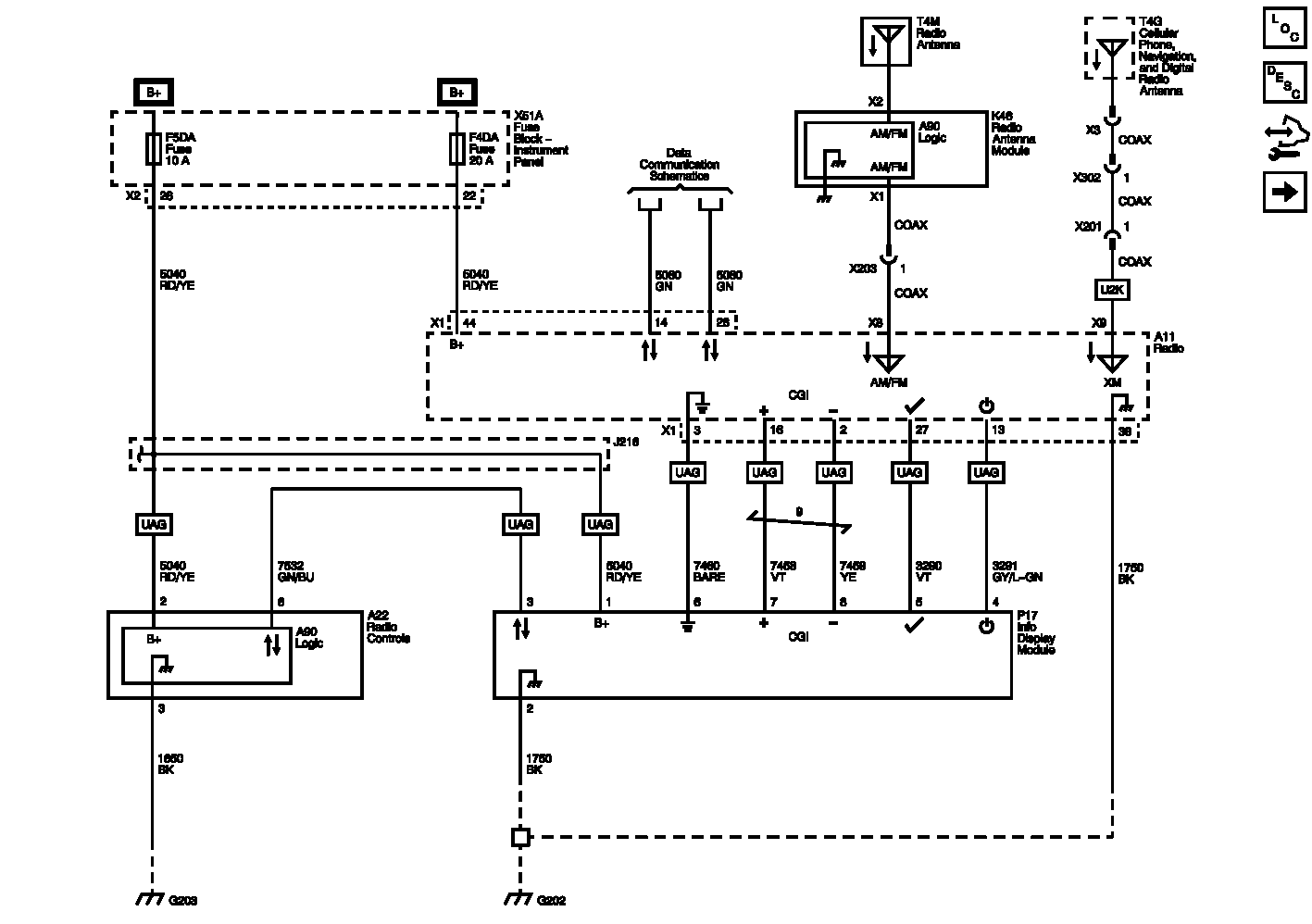

Fig 1: Power, Ground, Serial Data, Antennas, And Display (UAG) Wiring Schematic
GM2689628Courtesy of GENERAL MOTORS COMPANY
