Blower Motor Control Module Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

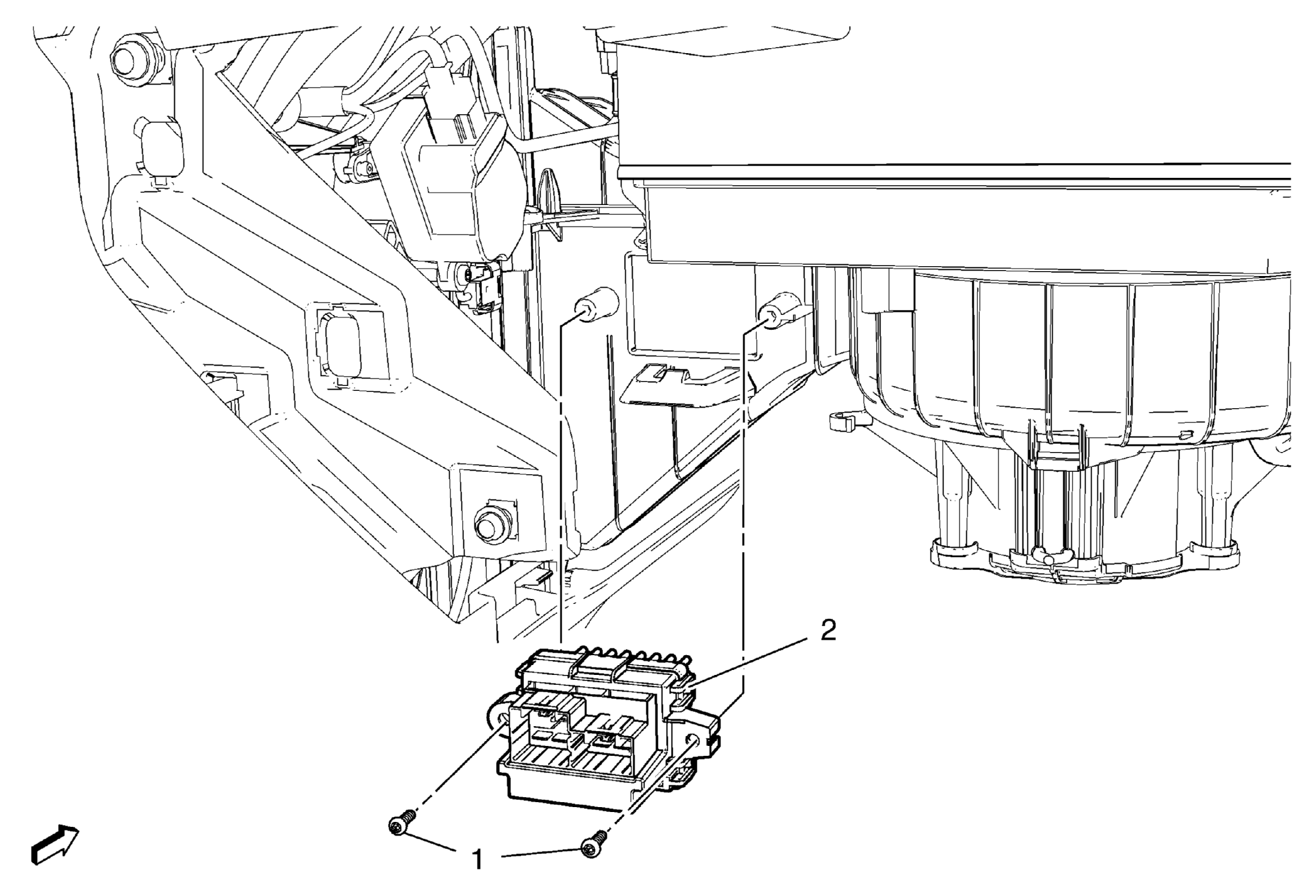

Fig 1: Blower Control Module & Bolts (Left Hand Drive)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1	Blower Motor Control Module Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Blower Motor Control Module Procedure Disconnect the electrical connectors.
