Mode Control Cam Replacement

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

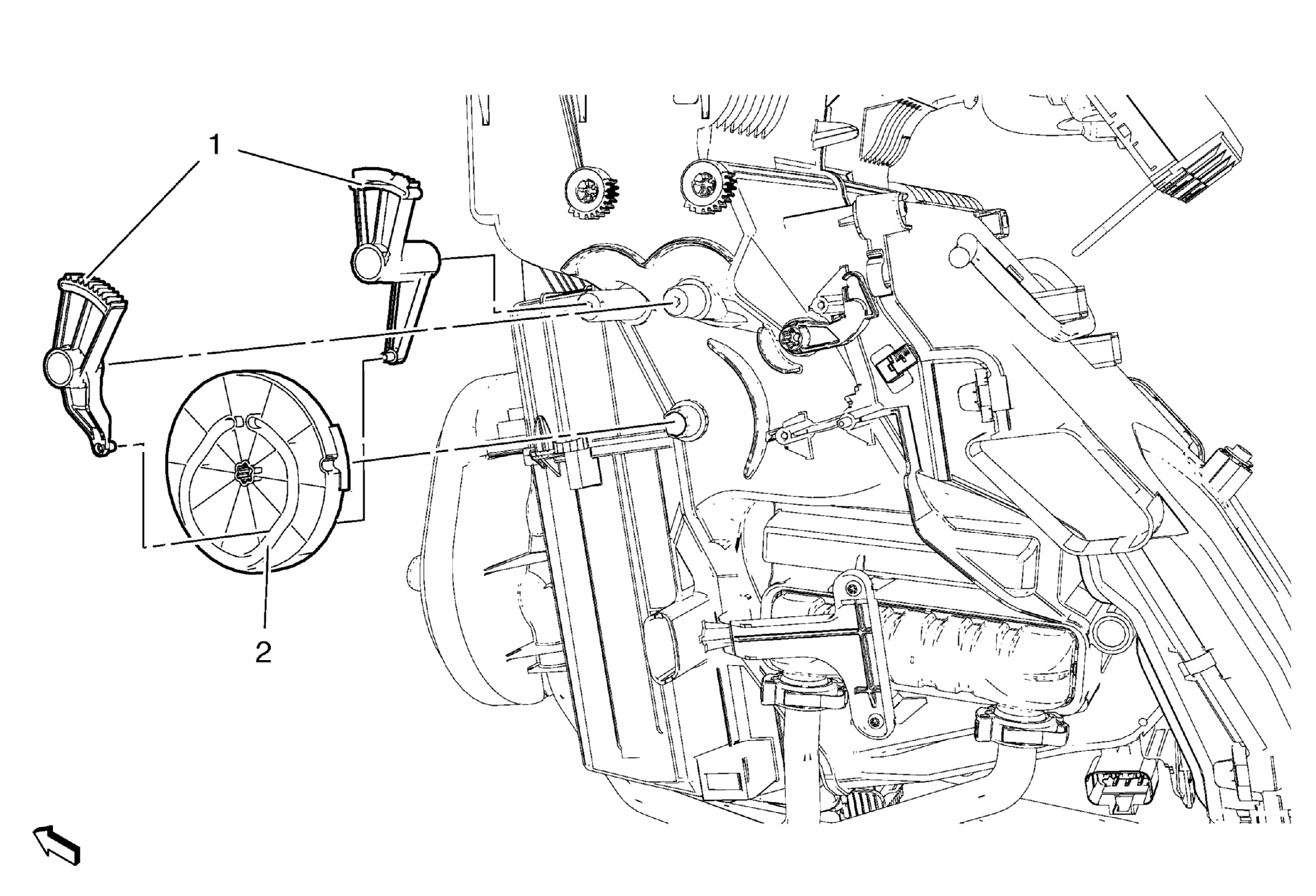

Fig 1: HVAC Mode Control Cam & Vent Valve Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove mode control cam actuator mounting plate. Refer to Mode Control Cam Actuator Mounting Plate Replacement .
1	Vent Valve Lever (Qty: 2)
2	Heater and Air Conditioning Mode Control Cam Procedure Lubricate the mode control cam in order to assure proper operation. Refer to Adhesives, Fluids, Lubricants, and Sealers .
