K43 Power Steering Control Module X1

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

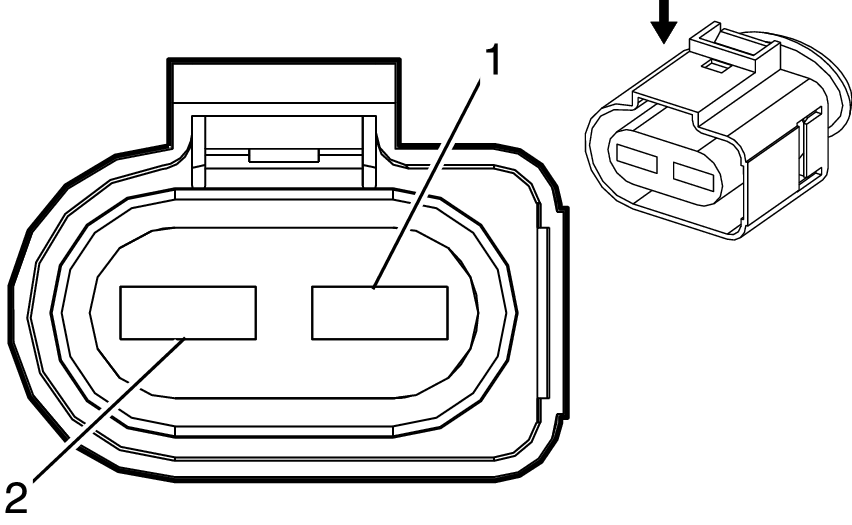

GM2399962
Connector Part Information
  • Harness Type: Power Steering
  • OEM Connector: 13663324
  • Service Connector: 13577532
  • Description: 2-Way F ASM CONN 2 F DUCON 9.5 BLK SLD (BK)
 Terminal Part Information
  • Terminated Lead: Service by Connector Assembly - 13577532
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-22 (RD)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
K43 Power Steering Control Module X1

Pin Size Color Circuit Function Option
1 10 BK 350 Ground -
2 10 RD/GY 2840 Battery Positive Voltage -
