K43 Power Steering Control Module X2
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

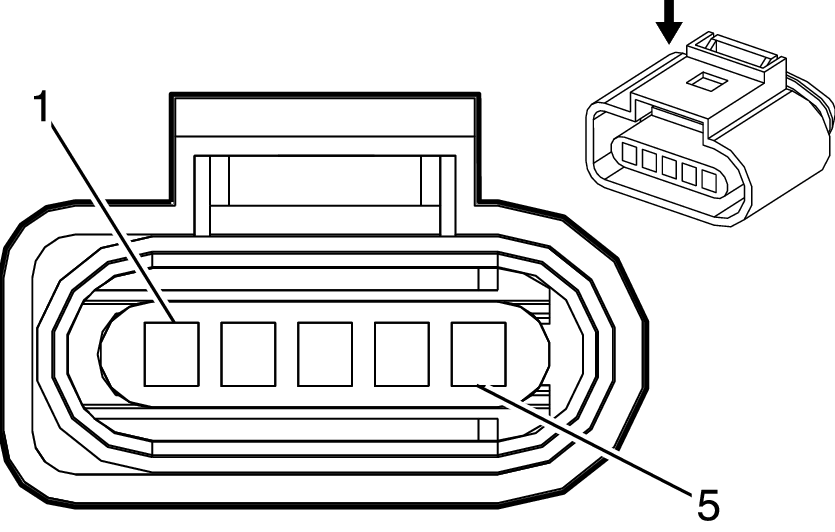

Connector Part Information
|
Terminal Part Information
|
K43 Power Steering Control Module X2
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | 0.5 | WH/BU | 5986 | Serial Data Communication Enable | - |
| 2 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) (1) | - |
| 3 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) (1) | - |
| 4 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | - |
| 5 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | - |
