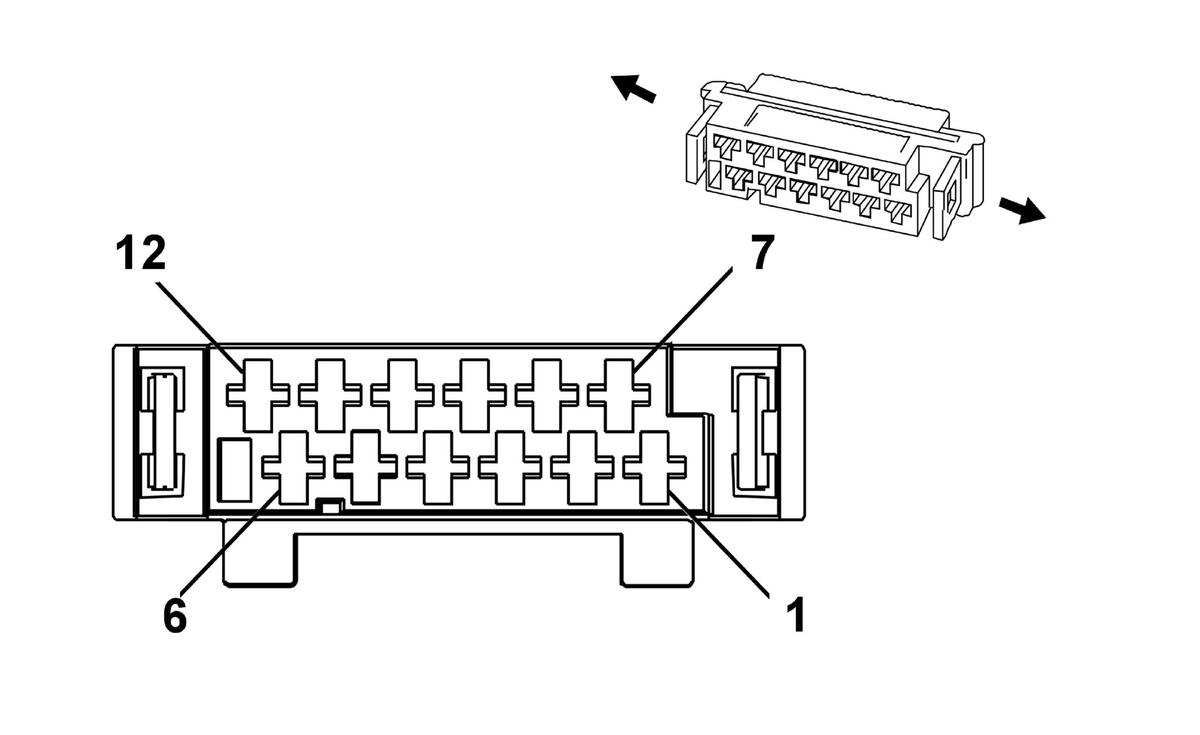

K61 Sunroof Control Module (CF5)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 929012-1
Service Connector: 90221505
Description: 12-Way F 2.8 Junior Power Timer Series (BK)

Terminal Part Information

Pins: 1, 2
Terminated Lead: 13575582
Release Tool: J-38125-36
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: 4-965999-1/25
Core/Insulation Crimp: 4/A

Pins: 3-6
Terminated Lead: 13575583
Release Tool: J-38125-36
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: 2-964284-1/25
Core/Insulation Crimp: E/A

K61 Sunroof Control Module (CF5)

Pin	Size	Color	Circuit	Function	Option
1	2.5	RD/BN	440	Battery Positive Voltage	-
2	2.5	BK	1550	Ground	-
3	0.5	BK/GY	128	Low Reference	-
4	0.5	GN/BN	6132	Linear Interconnect Network Bus 1	-
5	0.5	BU/VT	5027	Sunroof Switch Data (1)	-
6	0.5	WH/GN	3031	Sunroof Vent Switch Signal	-
7-12	-	-	-	Not Used	-
