K84 Keyless Entry Control Module X3 (ATH)
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.
Connector Part Information
|
Terminal Part Information
|

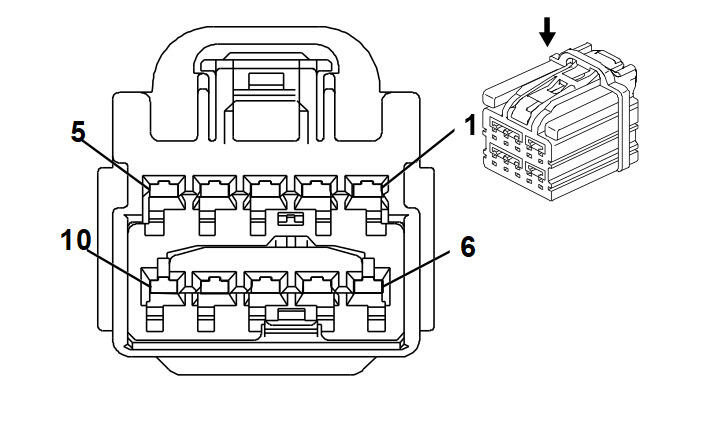

K84 Keyless Entry Control Module X3 (ATH)
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | - | - | - | Not Used | - |
| 2 | 0.5 | GN/BK | 6669 | Right Rear Door Unlatch Motor Unlatch Control | - |
| 3 | 0.5 | BU/WH | 6667 | Left Rear Door Unlatch Motor Unlatch Control | - |
| 4 | 0.5 | YE/GN | 3583 | Co Driver Door Unlatch Motor Unlatch Control | - |
| 5 | 0.5 | VT/BU | 6666 | Driver Door Unlatch Motor Unlatch Control | - |
| 6 | - | - | - | Not Used | - |
| 7 | 0.5 | GN/WH | 3581 | Right Rear Door Unlatch Motor Unlatch Return | - |
| 8 | 0.5 | BU/YE | 3580 | Left Rear Door Unlatch Motor Unlatch Return | - |
| 9 | 0.5 | GY/BK | 3579 | Co Driver Door Unlatch Motor Unlatch Return | - |
| 10 | 0.5 | GY | 3578 | Driver Door Unlatch Motor Unlatch Return | - |
