P17 Info Display Module (UAG)

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

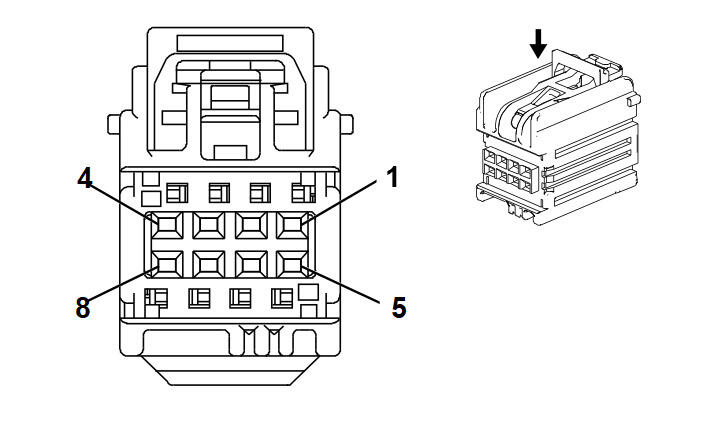

GM1716517
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 7283-9028-30
  • Service Connector: 13576542
  • Description: 8-Way F YESC Kaizen Series (BK)
 Terminal Part Information
  • Terminated Lead: 13575867
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: Pins 1, 2 - Not Available
  • Terminal/Tray: Pins 3-8 - SAIT-A03T-M064/14
  • Core/Insulation Crimp: Pins 1, 2 - Not Available
  • Core/Insulation Crimp: Pins 3-8 - P/P
P17 Info Display Module (UAG)

Pin Size Color Circuit Function Option
1 0.75 RD/YE 5040 Battery Positive Voltage -
2 0.75 BK 1750 Ground -
3 0.5 GN/BU 7532 Linear Interconnect Network Bus 10 -
4 0.5 GY/GN 3291 Integrated Center Stack Wake Up Signal -
5 0.5 VT 3290 Integrated Center Stack Reset Signal -
6 0.5 BARE 7460 Integrated Center Stack Serial Data Shield -
7 0.5 VT 7458 Center Integrated Center Stack Serial Data High -
8 0.5 YE 7459 Integrated Center Stack Serial Data Low -
