S78 Turn Signal/Multifunction Switch
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

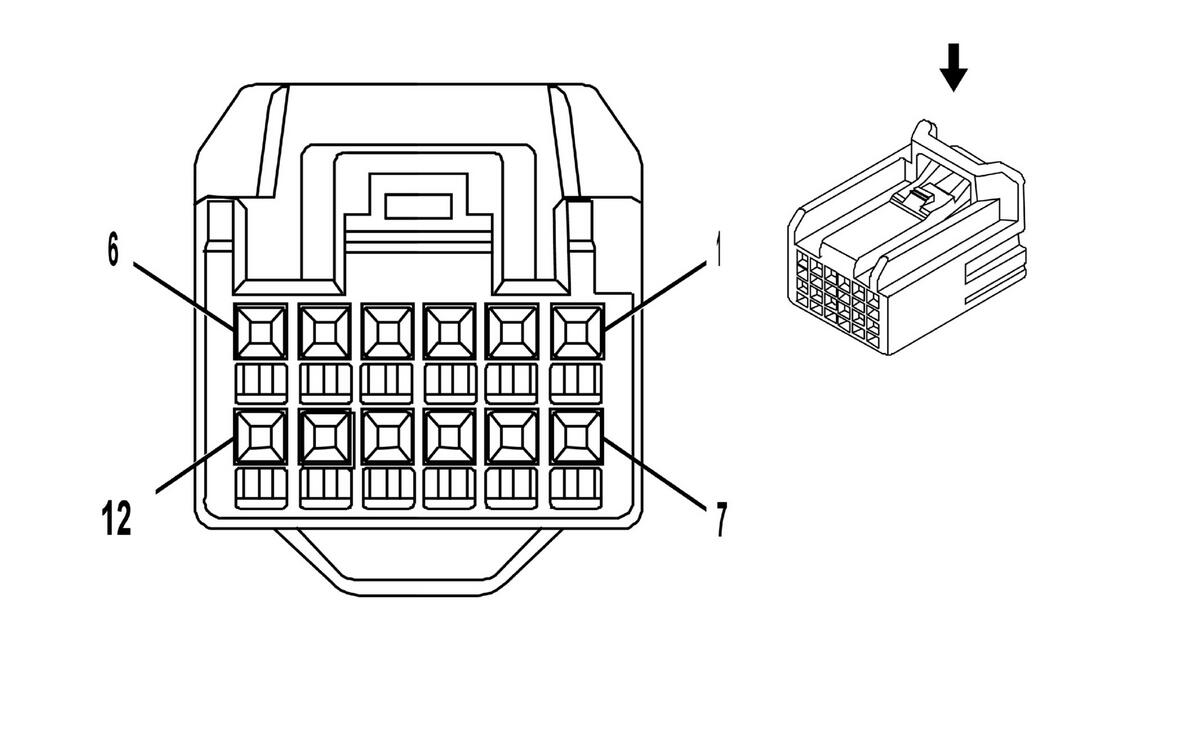

Connector Part Information
|
Terminal Part Information
|
S78 Turn Signal/Multifunction Switch
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | 0.5 | WH/GN | 663 | Hazard Switch Left Turn Signal | - |
| 2 | 0.5 | WH | 524 | Headlamp Dimmer Switch High Beam Signal | - |
| 3 | 0.5 | BK | 1650 | Ground | - |
| 4 | 0.5 | YE/BN | 307 | Headlamp Switch Flash To Pass Signal | - |
| 5 | 0.5 | GY/BU | 893 | Driver Information Center Select Menu Switch Signal | - |
| 6 | 0.5 | BK/BN | 897 | Low Reference | - |
| 7 | 0.5 | VT/BU | 664 | Hazard Switch Right Turn Signal | - |
| 8-11 | - | - | - | Not Used | - |
| 12 | 0.5 | GN/WH | 1358 | Driver Information Center Switch Signal | - |
