K17 Electronic Brake Control Module

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: 19178995
Service Connector: 13355847
Description: 38-Way F Mixed Series (BK)

Terminal Part Information

Pins: 1, 13
Terminated Lead: 13582183
Release Tool: J-38125-11A
Diagnostic Test Probe: J-35616-40 (BU)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

Pins: 5, 6, 8-12, 15, 26-30, 33, 34, 36, 37
Terminated Lead: Pending
Release Tool: Pending
Diagnostic Test Probe: Pending
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

Pins: 25
Terminated Lead: Pending
Release Tool: J-38125-36
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: 4-964273-1/15
Core/Insulation Crimp: C/5

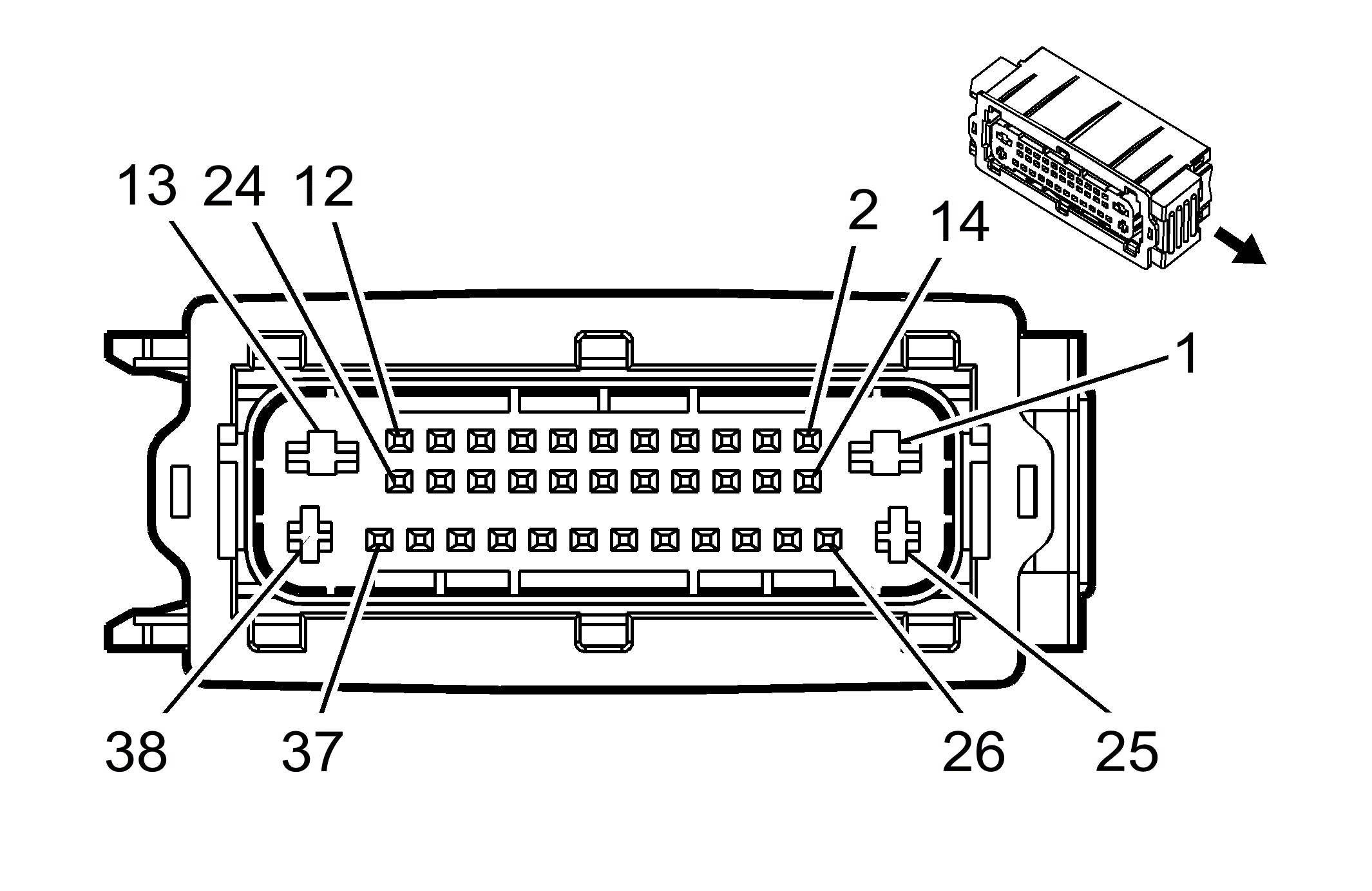

K17 Electronic Brake Control Module

Pin	Size	Color	Circuit	Function	Option
1	6	RD/VT	340	Battery Positive Voltage	-
2-4	-	-	-	Not Used	-
5	0.5	BU/YE	6105	High Speed GMLAN Serial Data (+) (2)	-
6	0.5	WH	6106	High Speed GMLAN Serial Data (-) (2)	-
7	-	-	-	Not Used	-
8	0.5	WH/BU	5986	Serial Data Communication Enable	-
9	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
10	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
11	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	-
12	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	-
13	6	BK	1450	Ground	-
14	-	-	-	Not Used	-
15	0.5	GN/BN	2087	Combined Vehicle Inertial Sensor Supply Voltage	-
16-24	-	-	-	Not Used	-
25	2.5	RD/WH	342	Battery Positive Voltage	-
26	0.5	BK/YE	833	Low Reference	-
27	0.5	YE	872	Wheel Speed Sensor Signal Right Front	-
28	0.5	GN/GY	333	Brake Fluid Level Sensor Signal	-
29	0.5	BU	884	Wheel Speed Sensor Signal Left Rear	-
30	0.5	BK/BU	885	Low Reference	-
31-32	-	-	-	Not Used	-
33	0.5	BK/VT	883	Low Reference	-
34	0.5	VT	882	Wheel Speed Sensor Signal Right Rear	-
35	-	-	-	Not Used	-
36	0.5	GY	830	Wheel Speed Sensor Signal Left Front	-
37	0.5	BK/GY	873	Low Reference	-
38	-	-	-	Not Used	-
