K9 Body Control Module X1
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

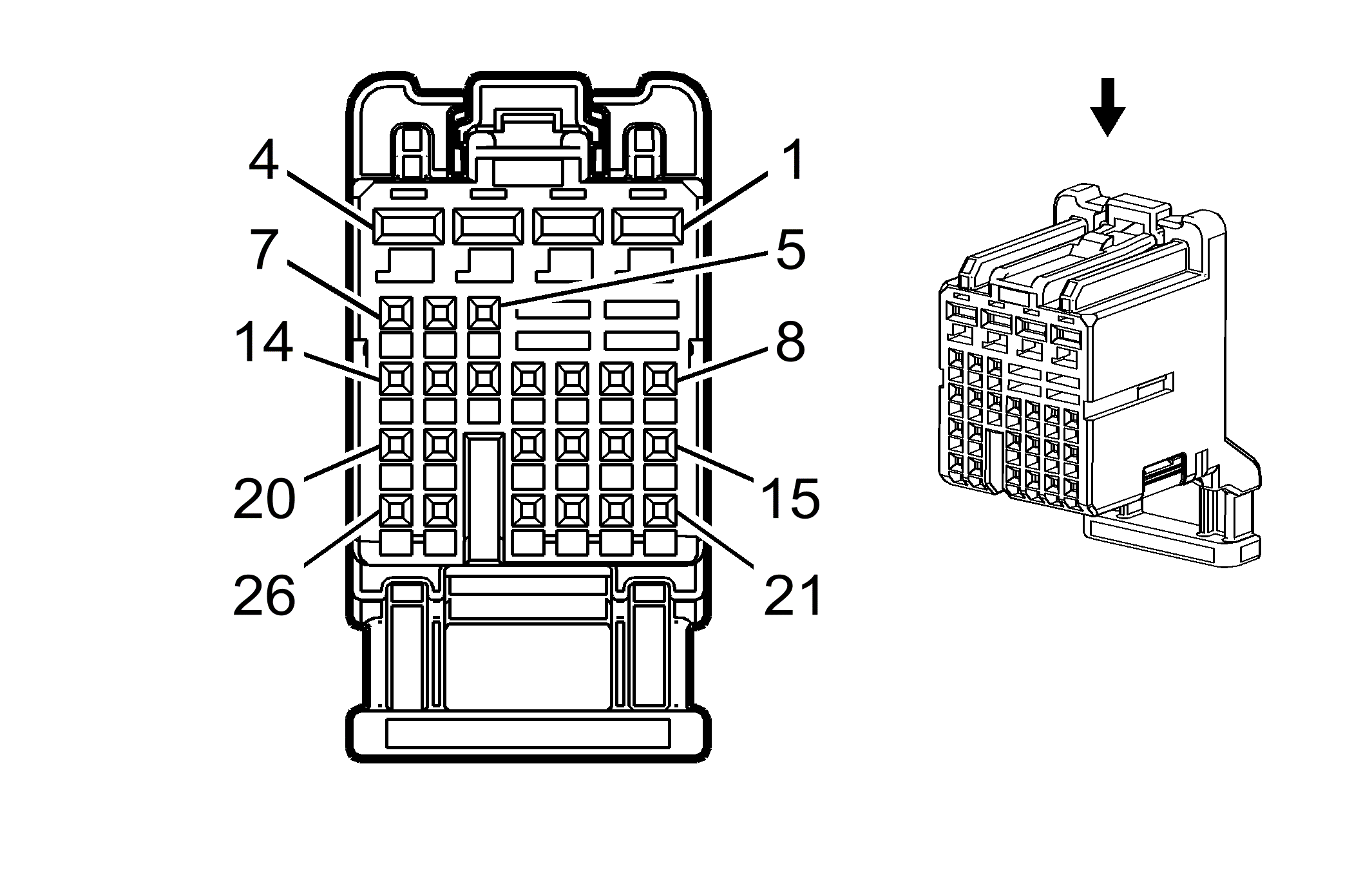

Connector Part Information
|
Terminal Part Information
|
K9 Body Control Module X1
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | 2.5 | BK | 2150 | Ground | - |
| 2 | 2.5 | RD/BU | 4540 | Battery Positive Voltage | - |
| 3 | 2.5 | RD/GN | 4440 | Battery Positive Voltage | - |
| 4 | 2.5 | RD/YE | 4340 | Battery Positive Voltage | - |
| 5 | - | - | - | Not Used | - |
| 6 | 0.5 | YE | 7554 | Park Lock Solenoid Soft Control | - |
| 7 | - | - | - | Not Used | - |
| 8 | 0.5 | BN/BK | 5720 | Ignition Mode Switch Accessory LED Signal | BTM |
| 9 | 0.5 | WH/BN | 7555 | Lighting Control Switch Signal | - |
| 10 | - | - | - | Not Used | - |
| 11 | 0.5 | GN/BN | 306 | Headlamp Switch Headlamps Off Signal Control | - |
| 12-15 | - | - | - | Not Used | - |
| 16 | 0.5 | WH/VT | 103 | Headlamp Switch On Signal | - |
| 17 | 0.5 | GY/YE | 7543 | Hazard LED Dimming Signal | - |
| 18 | - | - | - | Not Used | - |
| 19 | 0.5 | BN | 5360 | Low Reference | - |
| 20 | 0.5 | BU/BK | 5719 | Ignition Mode Switch Start LED Signal | BTM |
| 21 | 0.5 | GY | 728 | Security Indicator Control | - |
| 22 | 0.5 | GN/GY | 13 | Headlamp Switch Park Lamp Signal | - |
| 23 | - | - | - | Not Used | - |
| 24 | 0.5 | WH | 2501 | High Speed GMLAN Serial Data (-) (1) | - |
| 25 | 0.5 | BU | 2500 | High Speed GMLAN Serial Data (+) (1) | - |
| 26 | 0.35 | BU/WH | 3275 | Remote Function Actuator Receive Signal | - |
