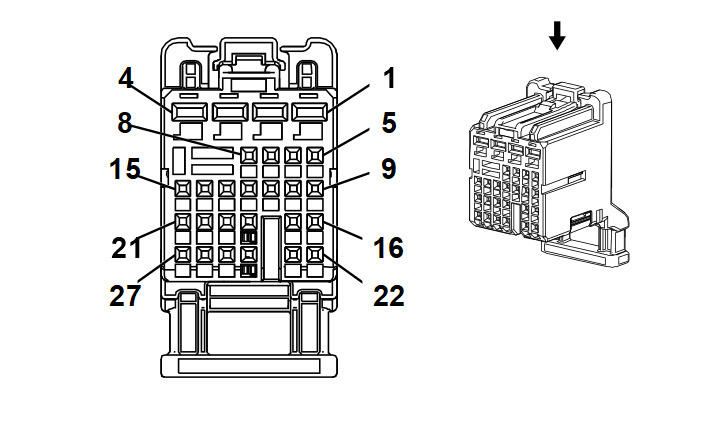

K9 Body Control Module X2

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: HIT2PB-27-3C-LE
Service Connector: 13576637
Description: 27-Way F 64 Series (BU)

Terminal Part Information

Pins: 1-4
Terminated Lead: 13575872
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: SNAC-A081T-M2.8/20
Core/Insulation Crimp: A/D

Pins: 7, 8, 10, 11, 13-17, 19, 21-27
Terminated Lead: 13582341
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

K9 Body Control Module X2

Pin	Size	Color	Circuit	Function	Option
1	2.5	RD/BN	4240	Battery Positive Voltage	-
2	2.5	BK	2150	Ground	-
3	2.5	RD/VT	4640	Battery Positive Voltage	-
4	2.5	RD/BN	4940	Battery Positive Voltage	-
5-6	-	-	-	Not Used	-
7	0.5	BU/YE	5361	Brake Apply Sensor Signal	-
8	0.5	YE	6817	LED Backlight Dimming Control	-
9	-	-	-	Not Used	-
10	0.5	WH/BU	278	Ambient Light Sensor Signal	-
11	0.5	VT/YE	5526	Tap Up/Tap Down Switch Signal	-
12	-	-	-	Not Used	-
13	0.5	WH	5359	Brake Apply Sensor Supply Voltage	-
14	0.5	BU/VT	1788	Traction Control Switch Signal (1)	-
15	0.5	BN/VT	245	Passenger Door Lock Switch Unlock Control	-
16	0.35	GY	3273	Remote Function Actuator Return	-
17	0.5	BU/GN	5723	Ignition Mode Switch Mode Voltage	BTM
18	-	-	-	Not Used	-
19	0.5	YE/VT	244	Passenger Door Lock Switch Lock Control	-
20	-	-	-	Not Used	-
21	0.5	GN/GY	6135	Linear Interconnect Network Bus 4	-
22	0.5	GN	5060	Low Speed GMLAN Serial Data	-
23	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
24	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	-
25	0.35	GY/WH	3272	Remote Function Actuator Supply Voltage	-
26	0.5	GN/WH	111	Hazard Switch Signal	-
27	0.35	YE/GN	3274	Remote Function Actuator Transmit Signal	-
