K9 Body Control Module X3
WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

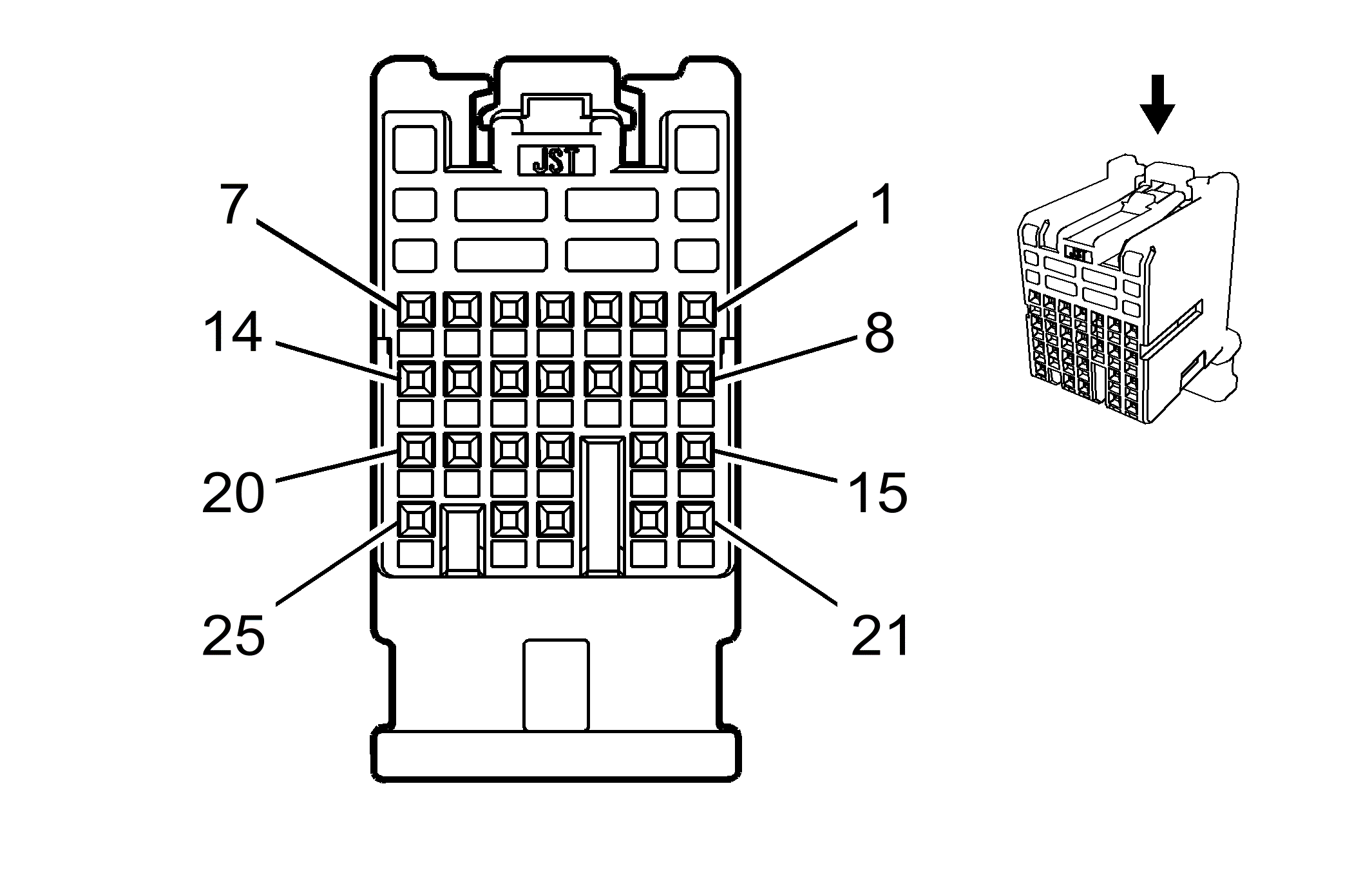

Connector Part Information
|
Terminal Part Information
|
K9 Body Control Module X3
| Pin | Size | Color | Circuit | Function | Option |
|---|---|---|---|---|---|
| 1 | 0.5 | GN/GY | 3277 | Vehicle Anti-Theft System Immobilizer Return | - |
| 2 | 0.5 | GN/VT | 7533 | Linear Interconnect Network Bus 11 | - |
| 3 | 0.5 | GY/BK | 3276 | Vehicle Anti-Theft System Immobilizer Supply Voltage | - |
| 4 | 0.5 | YE | 7556 | Lighting Control Switch Reference | - |
| 5 | 0.5 | VT/YE | 4 | Accessory Voltage | - |
| 6 | 0.5 | VT/BK | 3 | Run/Crank Ignition 1 Voltage | - |
| 7 | 0.5 | VT/YE | 143 | Accessory Voltage | - |
| 8 | 0.5 | GN/WH | 6819 | Steering Wheel Resistor Ladder Signal #2 | - |
| 9 | 0.35 | BN/GN | 1884 | Cruise Control Set/Coast/Resume/Accelerate Switch Signal | - |
| 10 | 0.5 | BK/GY | 6009 | Low Reference | - |
| 11 | 0.5 | WH | 524 | Headlamp Dimmer Switch High Beam Signal | - |
| 12 | 0.5 | WH/GN | 663 | Hazard Switch Left Turn Signal | - |
| 13 | 0.5 | YE/BU | 1714 | Windshield Wiper Switch Low Signal | - |
| 14 | - | - | - | Not Used | - |
| 15 | 0.5 | WH/VT | 1020 | Off/Run/Crank Voltage | - |
| 16 | - | - | - | Not Used | - |
| 17 | 0.5 | YE/BN | 307 | Headlamp Switch Flash To Pass Signal | - |
| 18 | 0.5 | GN/WH | 3287 | Horn Switch Signal | - |
| 19 | - | - | - | Not Used | - |
| 20 | 0.5 | GY | 1715 | Windshield Wiper Switch High Signal | - |
| 21 | - | - | - | Not Used | - |
| 22 | 0.5 | WH/BK | 1073 | Ignition Key Resistor Signal | - |
| 23 | - | - | - | Not Used | - |
| 24 | 0.5 | VT/BU | 664 | Hazard Switch Right Turn Signal | - |
| 25 | 0.5 | WH/BK | 94 | Windshield Washer Switch Signal | - |
