K9 Body Control Module X4

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

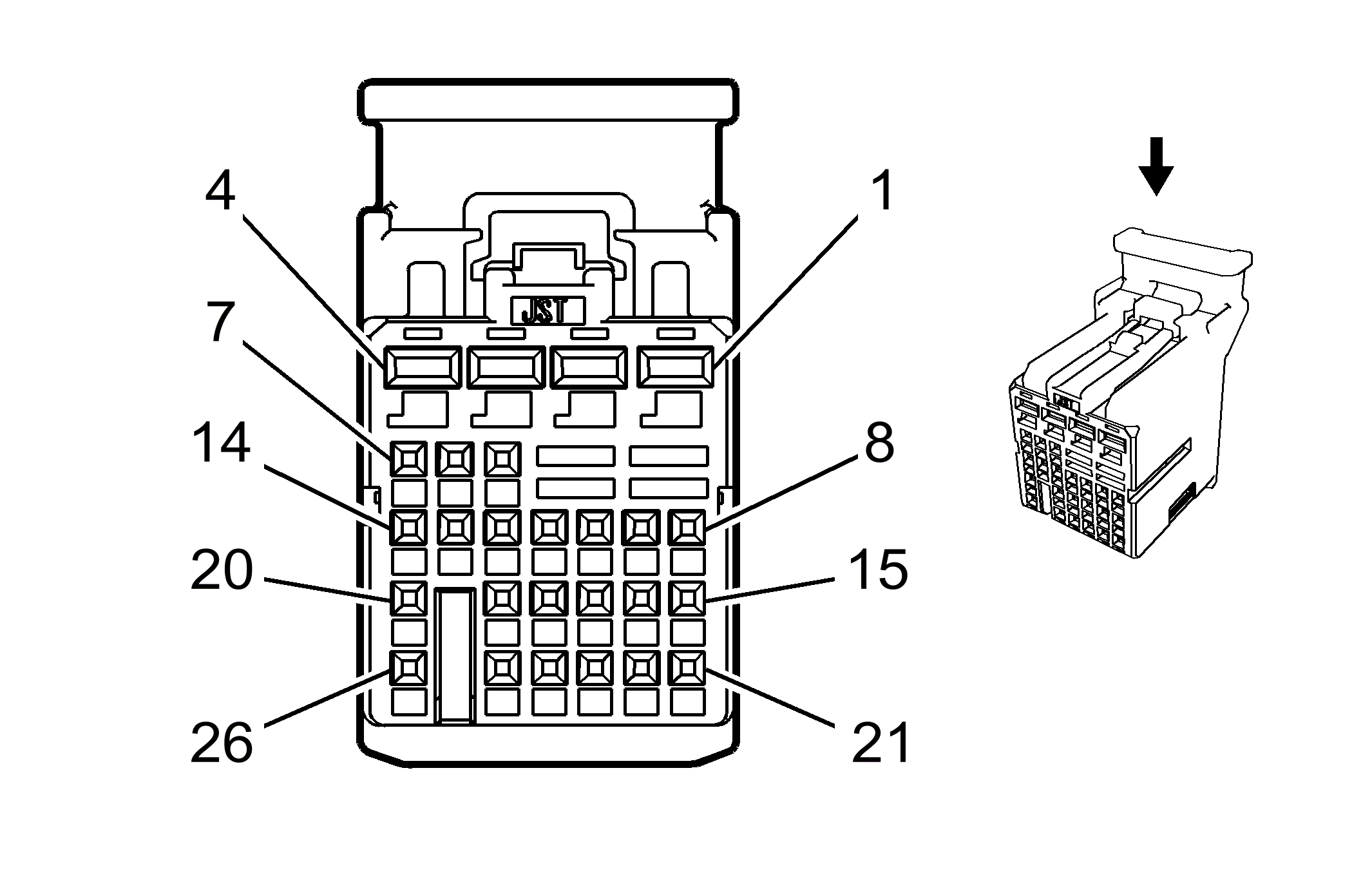

Connector Part Information

Harness Type: Body
OEM Connector: HIT2PB-26-2D-K
Service Connector: 13576640
Description: 26-Way F 64 Series (BK)

Terminal Part Information

Pins: 1-4
Terminated Lead: 13575871
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: E/A

Pins: 5-7, 10-16, 18, 20-24, 26
Terminated Lead: 13582341
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

K9 Body Control Module X4

Pin	Size	Color	Circuit	Function	Option
1	0.75	YE	312	Right Headlamp Low Beam Supply Voltage	-
2	0.75	YE	712	Left Headlamp Low Beam Supply Voltage	-
3	0.75	GN/VT	1315	Right Front Turn Signal Lamp Supply Voltage	-
4	0.75	GN/VT	619	Right Rear Turn Signal Lamp Supply Voltage	-
5	0.5	VT	1203	Right Park Lamp Supply Voltage	-
6	0.5	WH/YE	1204	Left Park Lamp Supply Voltage	-
7	0.5	BN/YE	5221	Left Brake Lamp Supply Voltage	-
8-9	-	-	-	Not Used	-
10	0.5	VT/YE	3267	Child Security Lock Relay Control	-
11	0.5	VT/WH	5065	Stop Lamp Relay Coil Supply Voltage	-
12	0.5	VT/YE	43	Accessory Voltage	-
13	0.5	GN/YE	6846	Rear License Lamp Supply Voltage	-
14	0.5	BN/GY	2268	Windshield Washer Relay Control	-
15	0.5	GN/VT	5199	Run/Crank Relay Coil Control	-
16	0.5	BN/GN	196	Windshield Wiper Motor Park Switch Signal	-
17	-	-	-	Not Used	-
18	0.5	WH/YE	5075	Current Sensor Signal	-
19	-	-	-	Not Used	-
20	0.5	RD/WH	2740	Battery Positive Voltage	-
21	0.5	BU/VT	5076	Current Sensor Supply Voltage	-
22	0.5	VT/YE	5985	Accessory Wakeup Serial Data	-
23	0.5	WH/BU	5986	Serial Data Communication Enable	-
24	0.5	BN/GN	109	Hood Ajar Switch Signal	-
25	-	-	-	Not Used	-
26	0.5	BK/BN	1798	Low Reference	-
