K9 Body Control Module X5

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

GM2180235

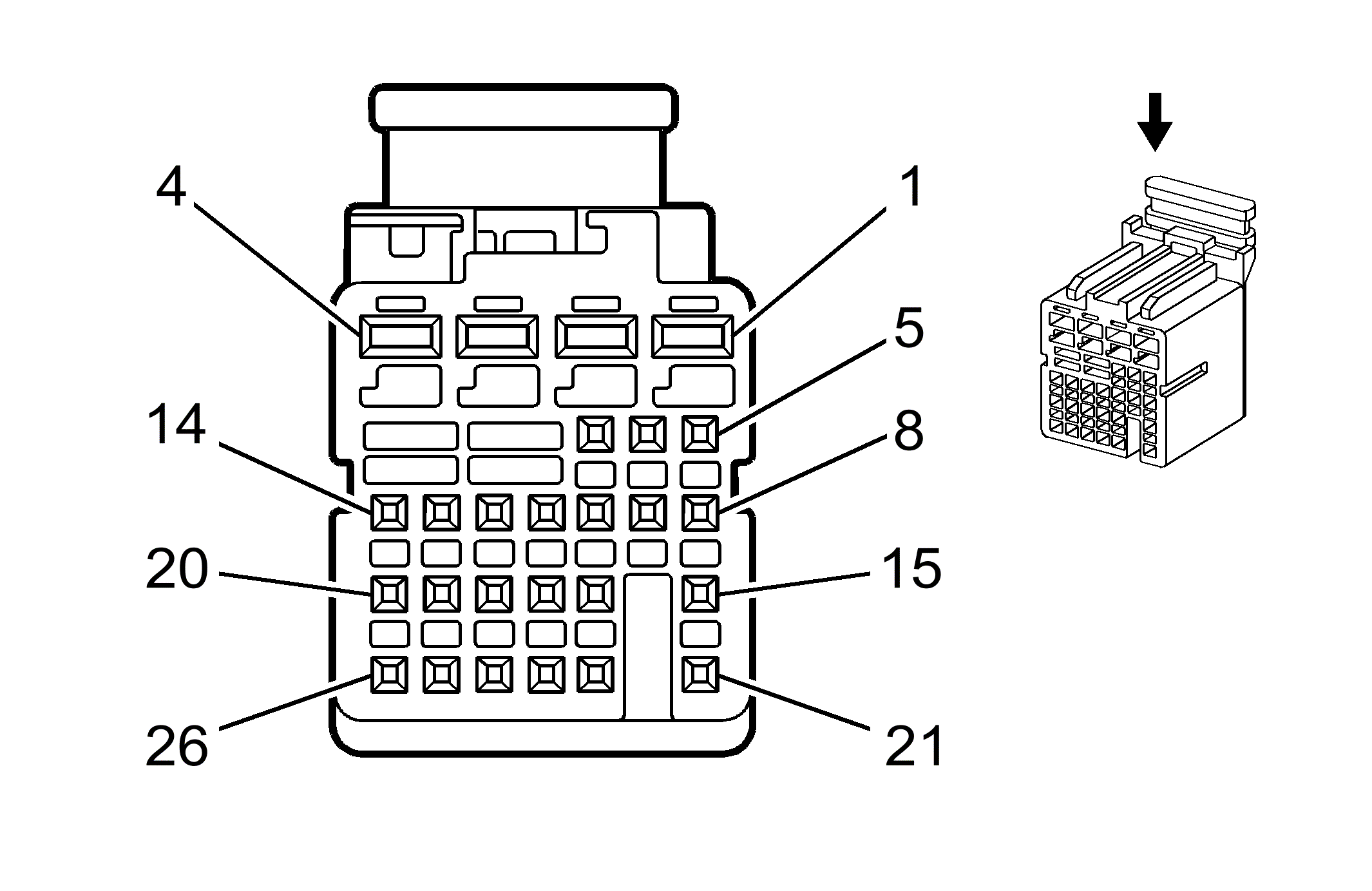

Connector Part Information

Harness Type: Body
OEM Connector: HIT2PB-26-2E-N
Service Connector: 13576641
Description: 26-Way F 64 Series (BN)

Terminal Part Information

Pins: 1, 2
Terminated Lead: 13575871
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: E/A

Pins: 3, 4
Terminated Lead: 13575872
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: SNAC-A081T-M2.8/20
Core/Insulation Crimp: A/D

Pins: 6, 7, 10, 12, 14, 18, 19, 25
Terminated Lead: 13582341
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

K9 Body Control Module X5

Pin	Size	Color	Circuit	Function	Option
1	0.75	YE/BN	618	Left Rear Turn Signal Lamp Supply Voltage	-
2	0.75	BU/WH	1314	Left Front Turn Signal Lamp Supply Voltage	-
3	2.5	RD/GY	4840	Battery Positive Voltage	-
4	2.5	RD/WH	4740	Battery Positive Voltage	-
5	-	-	-	Not Used	-
6	0.5	BK/VT	5077	Low Reference	-
7	0.5	VT/BK	5222	Right Brake Lamp Supply Voltage	-
8-9	-	-	-	Not Used	-
10	0.5	BN/WH	1317	Fog Lamp Relay Control	-
11	-	-	-	Not Used	-
12	0.5	WH/BU	6311	Cruise/ETC/TCC Brake Signal	-
13	-	-	-	Not Used	-
14	0.5	BN/VT	5486	Run Relay Coil Control	UVD
15-17	-	-	-	Not Used	-
18	0.5	BN/VT	1969	Headlamp High Beam Relay Control	-
19	0.5	BN/WH	28	Horn Relay Control	-
20-24	-	-	-	Not Used	-
25	0.5	GN/BN	5706	Endgate Latch Relay Supply Voltage	-
26	-	-	-	Not Used	-
