K9 Body Control Module X6

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

GM2180239

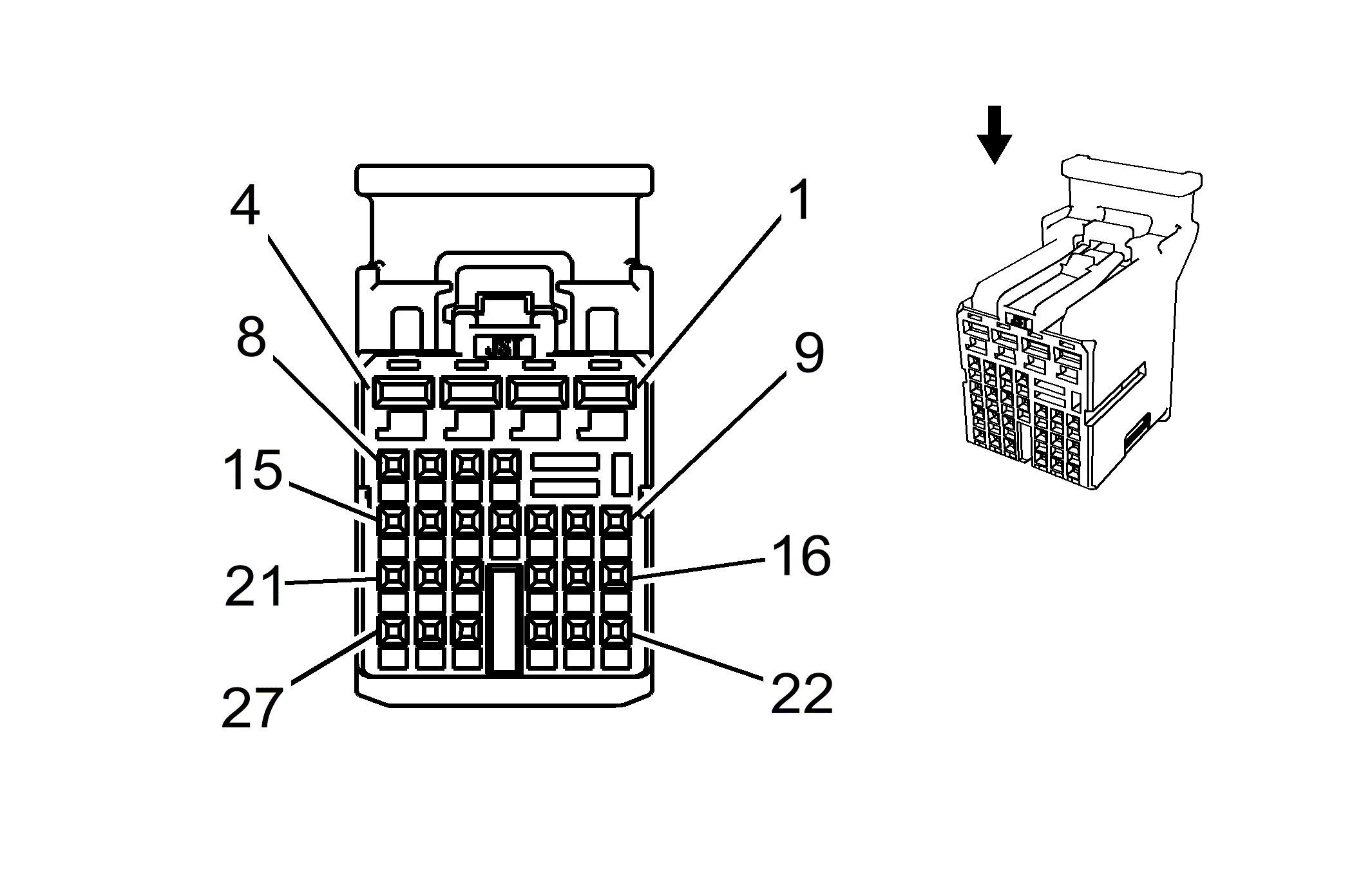

Connector Part Information

Harness Type: Body
OEM Connector: HIT2PB-27-2F-PK
Service Connector: 13576638
Description: 27-Way F 64 Series (PK)

Terminal Part Information

Pins: 1, 2, 4
Terminated Lead: 13575871
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: Pins 1, 4 - E/A
Core/Insulation Crimp: Pins 2 - C/A

Pins: 3
Terminated Lead: 13575872
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

Pins: 5, 9, 10, 13-16, 22, 24, 25
Terminated Lead: 13582341
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

K9 Body Control Module X6

Pin	Size	Color	Circuit	Function	Option
1	0.75	BU/WH	195	Door Lock Control	-
2	1	GY/GN	3271	Door Lock Control (2)	-
3	1.5	BK	2150	Ground	-
4	0.75	BN/YE	294	Door Lock Actuator Unlock Control	-
5	0.5	VT/GY	1303	Lift Gate Ajar Switch Signal (1)	-
6-8	-	-	-	Not Used	-
9	0.5	GN/BU	6133	Linear Interconnect Network Bus 2	-
10	0.5	GN/YE	6134	Linear Interconnect Network Bus 3	-
11-12	-	-	-	Not Used	-
13	0.5	BN/WH	781	Driver Door Lock Switch Unlock Signal	-
14	0.5	BN/YE	780	Driver Door Lock Switch Lock Signal	-
15	0.5	VT/BU	6189	Lift Glass/Trunk Interior Release Signal	-
16	0.5	GN/BN	6132	Linear Interconnect Network Bus 1	-
17-21	-	-	-	Not Used	-
22	0.5	GY/GN	328	Interior Lamp Defeat Switch Signal	-
23	-	-	-	Not Used	-
24	0.5	BU	2500	High Speed GMLAN Serial Data (+) (1)	-
25	0.5	WH	2501	High Speed GMLAN Serial Data (-) (1)	-
26-27	-	-	-	Not Used	-
