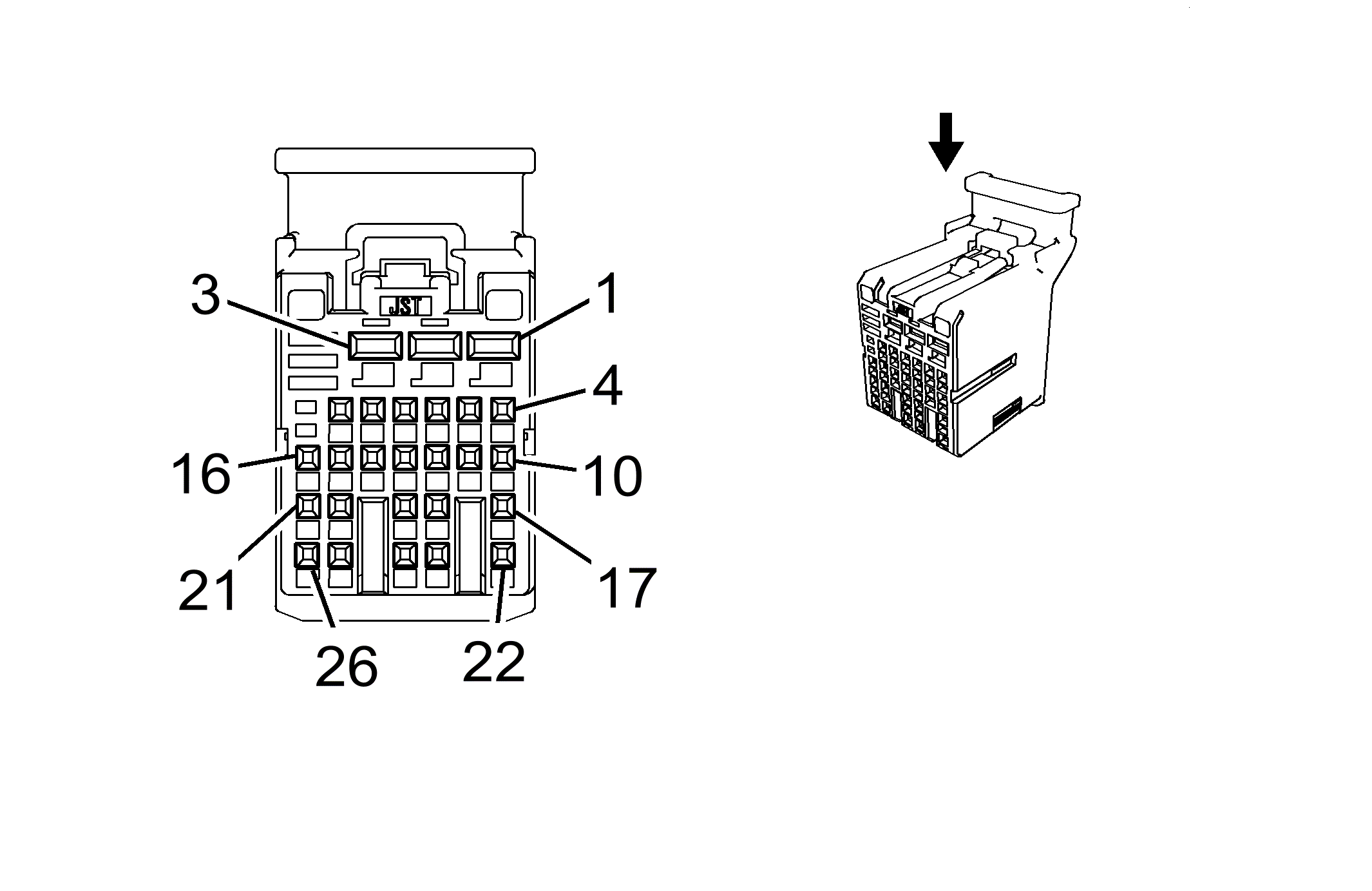

K9 Body Control Module X7

WARNING: This page is about a different car, the 2012 Buick Verano. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Body
OEM Connector: HIT2PB-26-2G-H
Service Connector: 13576642
Description: 26-Way F 64 Series (GY)

Terminal Part Information

Pins: 1-3
Terminated Lead: 13575871
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-35 (VT)
Terminal/Tray: SNAC-A061T-M2.8/20
Core/Insulation Crimp: E/A

Pins: 5-7, 9, 12, 13, 17-19, 22, 23
Terminated Lead: 13582341
Release Tool: J-38125-12A
Diagnostic Test Probe: J-35616-64B (L-BU)
Terminal/Tray: Not Available
Core/Insulation Crimp: Not Available

K9 Body Control Module X7

Pin	Size	Color	Circuit	Function	Option
1	0.75	GY	157	Interior Lamp Control	-
2	0.75	WH/BN	6815	Inadvertent Power Control	-
3	0.75	GN/WH	1324	Backup Lamp Supply Voltage	-
4	-	-	-	Not Used	-
5	0.5	WH/BN	3572	Driver Door Unlatch Enable Signal	ATH
6	0.5	VT/BK	7553	Park Lock Solenoid Control	-
7	0.5	GN/GY	737	Trunk Lamp Control	-
8	-	-	-	Not Used	-
9	0.5	YE	6817	LED Backlight Dimming Control	-
10-11	-	-	-	Not Used	-
12	0.35	BN/WH	3269	Child Security Lock Motor Status Signal Left Rear	-
13	0.5	WH/VT	5905	Key Capture/Column Lock Shift Position Signal	ATH
14-16	-	-	-	Not Used	-
17	0.5	BU	3573	Non Driver Door Unlatch Enable Signal	ATH
18	0.35	GY/BK	3268	Child Security Lock Motor Status Signal Right Rear	-
19	0.5	GY	156	Courtesy Lamp Switch Signal	-
20-21	-	-	-	Not Used	-
22	0.5	WH/YE	7557	LED Ambient Lighting Control 1	-
23	0.5	GN	5060	Low Speed GMLAN Serial Data	-
24-26	-	-	-	Not Used	-
