Steering Wheel Inflatable Restraint Module Coil Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

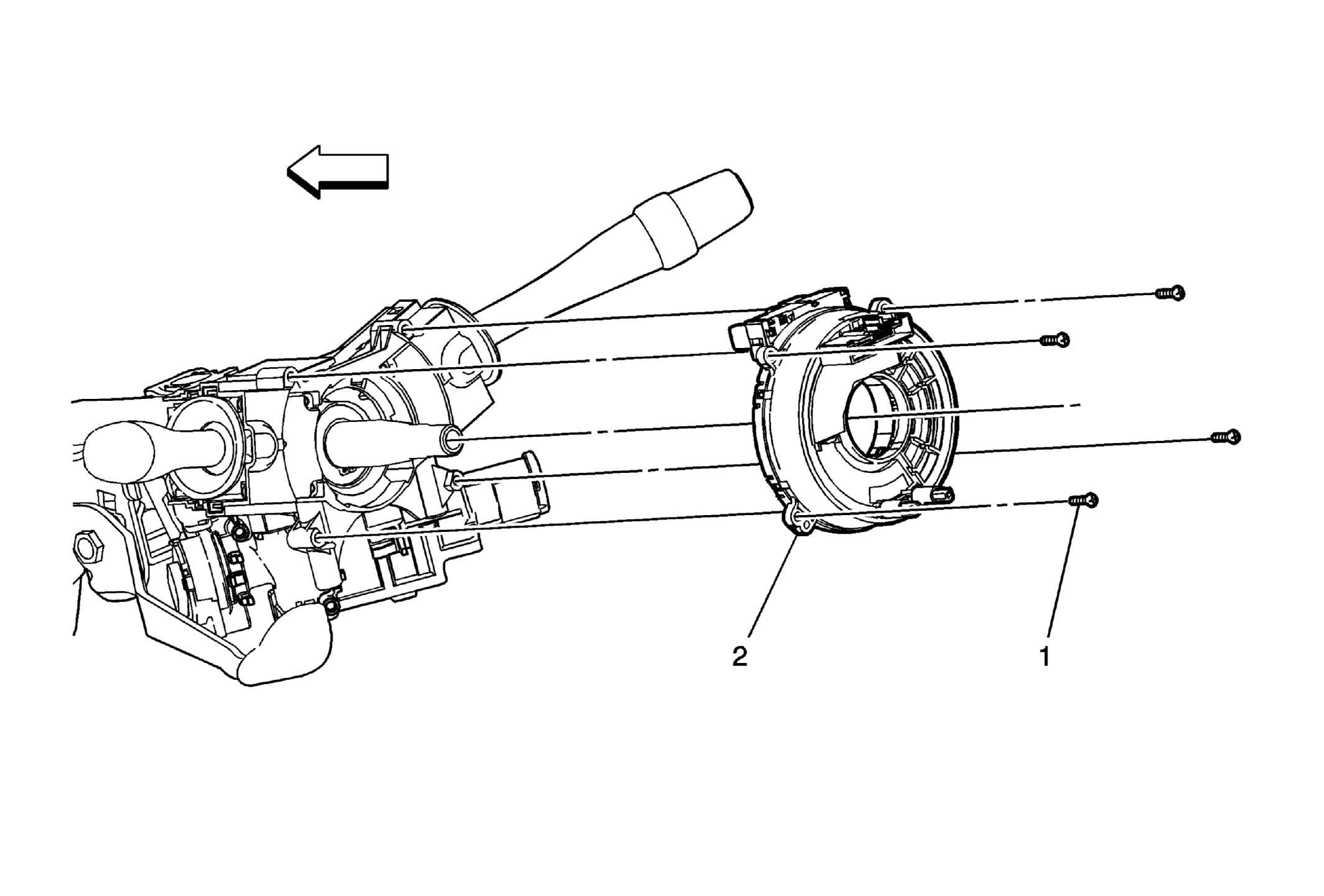

Fig 1: View Of Inflatable Restraint Steering Wheel Module Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the steering wheel. Refer to Steering Wheel Replacement Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .
1	Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Inflatable Restraint Steering Wheel Module Coil Procedure Disconnect any electrical connectors as needed. If re-centering of the inflatable restraint steering wheel module coil is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .

Callout

Component Name

Preliminary Procedure

Remove the steering wheel. Refer to Steering Wheel Replacement
Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement .

Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Inflatable Restraint Steering Wheel Module Coil

Procedure

Disconnect any electrical connectors as needed.
If re-centering of the inflatable restraint steering wheel module coil is needed then refer to Inflatable Restraint Steering Wheel Module Coil Centering .
