X51A Fuse Block - Instrument Panel Top View Fuses

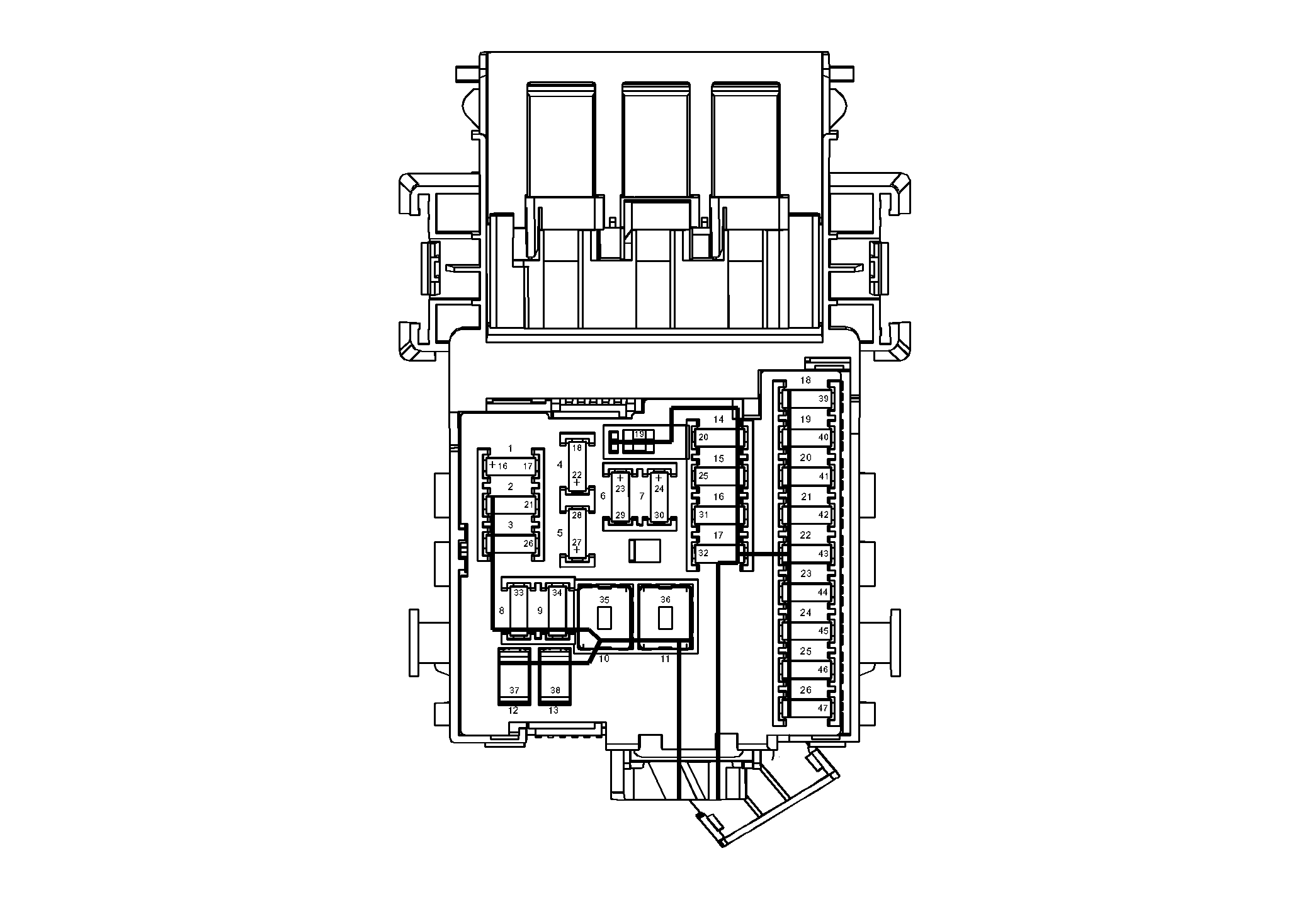

Fig 1: X51A Fuse Block -- Instrument Panel Top View Fuses

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
F1DA: 1	F1DA: -	F1DA: F1DA Fuse	F1DA: 2 A	F1DA: S70L Steering Wheel Controls Switch - Left, S70R Steering Wheel Controls Switch - Right
F2DA: 2	F2DA: -	F2DA: F2DA Fuse	F2DA: 20 A	F2DA: K9 Body Control Module
F3DA: 3	F3DA: -	F3DA: F3DA Fuse	F3DA: 20 A	F3DA: K9 Body Control Module
F4DA: 4	F4DA: -	F4DA: F4DA Fuse	F4DA: 20 A	F4DA: A11 Radio
F5DA: 5	F5DA: -	F5DA: F5DA Fuse	F5DA: 10 A	F5DA: A22 Radio Controls (UAG), K73 Telematics Communication Interface Control Module (UE1), P17 Info Display Module, T11 Multimedia Player Interface Module, X83 Auxiliary Audio Input
F6DA: 6	F6DA: -	F6DA: F6DA Fuse	F6DA: 20 A	F6DA: E32 Cigarette Lighter Receptacle
F7DA: 7	F7DA: -	F7DA: F7DA Fuse	F7DA: 20 A	F7DA: X80H Accessory Power Receptacle - Center Console
F8DA: 8	F8DA: -	F8DA: F8DA Fuse	F8DA: 30 A	F8DA: K9 Body Control Module
F9DA: 9	F9DA: -	F9DA: F9DA Fuse	F9DA: 30 A	F9DA: K9 Body Control Module
F10DA: 10	F10DA: -	F10DA: F10DA Fuse	F10DA: 30 A	F10DA: K9 Body Control Module
F11DA: 11	F11DA: -	F11DA: F11DA Fuse	F11DA: 40 A	F11DA: K8 Blower Motor Control Module
F12DA: 12	F12DA: -	F12DA: F12DA Circuit Breaker	F12DA: 25 A	F12DA: S64D Seat Adjuster Switch - Driver (ADS)
F13DA: 13	F13DA: -	F13DA: F13DA Circuit Breaker	F13DA: -	F13DA: Not Used
F14DA: 14	F14DA: -	F14DA: F14DA Fuse	F14DA: 7.5 A	F14DA: X84 Data Link Connector
F15DA: 15	F15DA: -	F15DA: F15DA Fuse	F15DA: 10 A	F15DA: K36 Inflatable Restraint Sensing and Diagnostic Module
F16DA: 16	F16DA: -	F16DA: F16DA Fuse	F16DA: 10 A	F16DA: KR95B Rear Compartment Lid Unlatch Relay
F17DA: 17	F17DA: -	F17DA: F17DA Fuse	F17DA: 10 A	F17DA: A26 HVAC Controls, K33 HVAC Control Module
F18DA: 18	F18DA: -	F18DA: F18DA Fuse	F18DA: 30 A	F18DA: F4DA Fuse, F5DA Fuse
F19DA: 19	F19DA: -	F19DA: F19DA Fuse	F19DA: 30 A	F19DA: K9 Body Control Module
F20DA: 20	F20DA: -	F20DA: F20DA Fuse	F20DA: 5 A	F20DA: K85 Passenger Presence Module
F21DA: 21	F21DA: -	F21DA: F21DA Fuse	F21DA: 7.5 A	F21DA: P16 Instrument Cluster
F22DA: 22	F22DA: -	F22DA: F22DA Fuse	F22DA: 5 A (BTM) F22DA: 2 A (without BTM)	F22DA: K84 Keyless Entry Control Module (BTM) F22DA: S39 Ignition Switch (without BTM)
F23DA: 23	F23DA: -	F23DA: F23DA Fuse	F23DA: 20 A	F23DA: K9 Body Control Module
F24DA: 24	F24DA: -	F24DA: F24DA Fuse	F24DA: 20 A	F24DA: K9 Body Control Module
F25DA: 25	F25DA: -	F25DA: F25DA Fuse	F25DA: -	F25DA: Not Used
F26DA: 26	F26DA: -	F26DA: F26DA Fuse	F26DA: -	F26DA: Not Used
