Passive Entry (ATH with BTM)

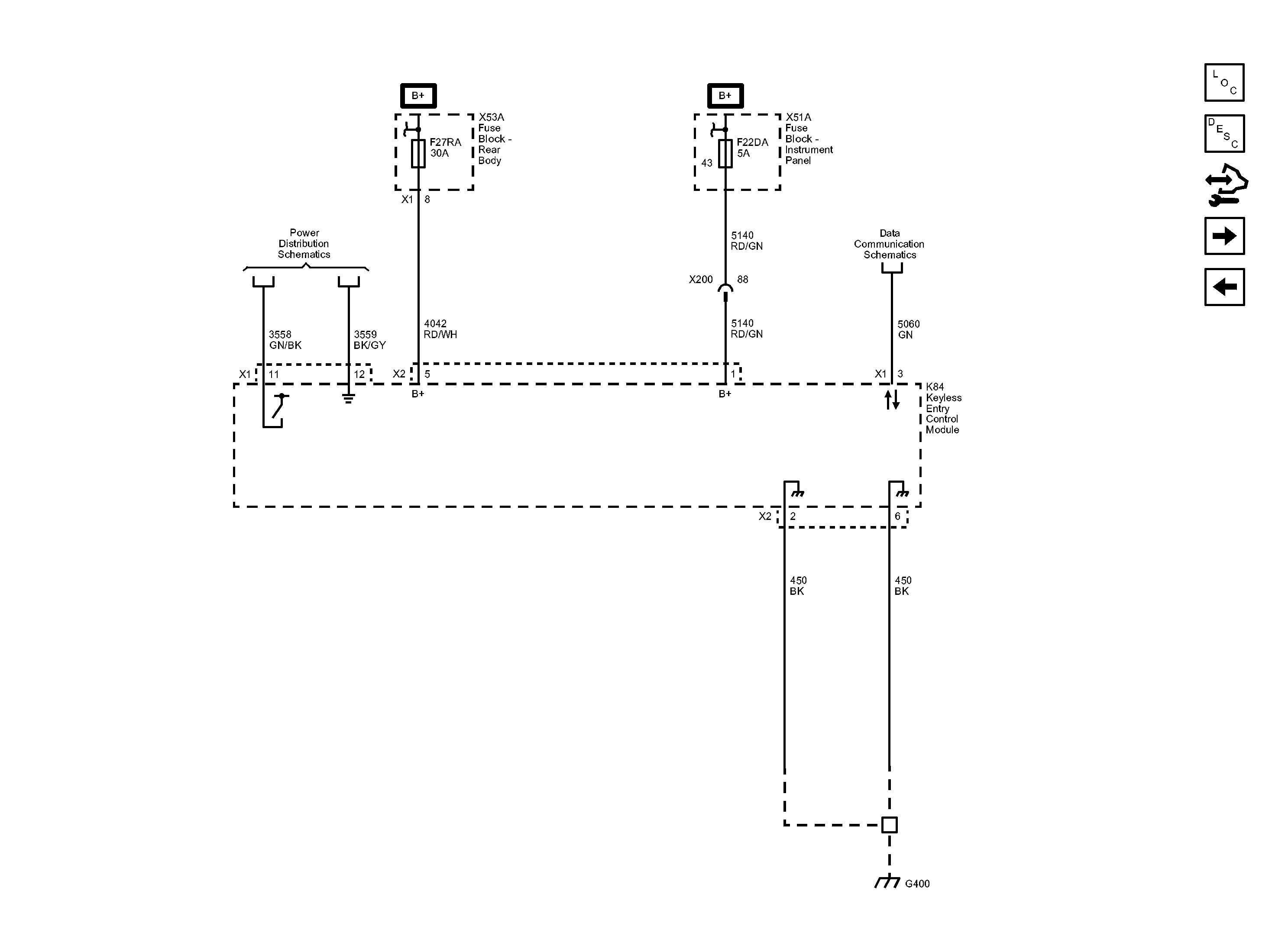

Fig 1: Passive Entry Wiring Schematic (ATH with BTM)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
