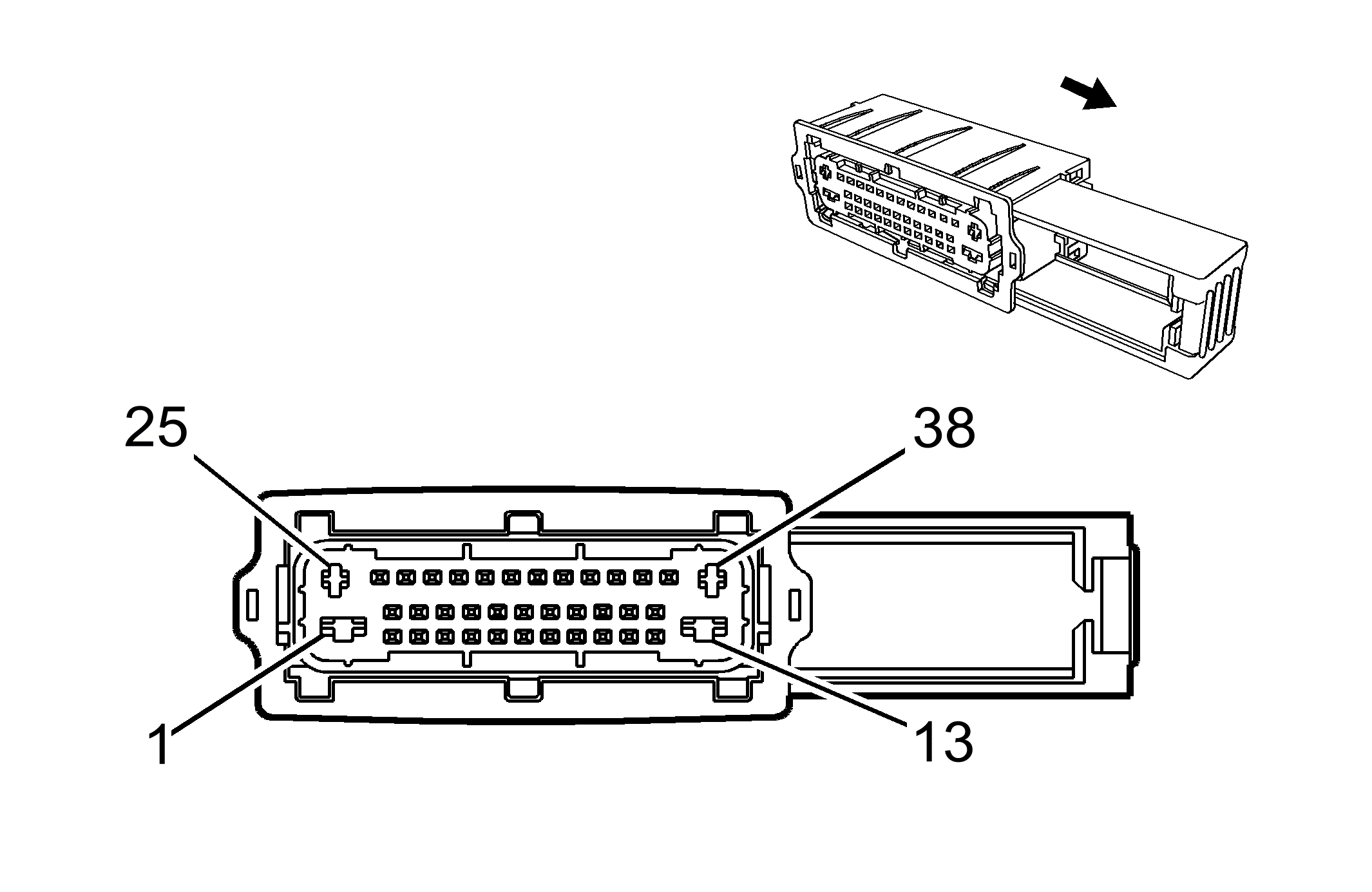

K17 Electronic Brake Control Module Connector End View
WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
K17 Electronic Brake Control Module
| Pin | Color | Circuit | Function |
|---|---|---|---|
| 1 | 6 RD/D-BU | 1640 | Battery Positive Voltage |
| 2 | - | - | Not Used |
| 3 | 0.5 RD/D-BU | 872 | Wheel Speed Sensor Signal Right Front |
| 4 | 0.5 BK/YE | 833 | Low Reference |
| 5 | 0.5 D-BU | 2500 | High Speed GMLAN Serial Data (+) (1) |
| 6 | 0.5 WH | 2501 | High Speed GMLAN Serial Data (-) (1) |
| 7 | 0.5 BN/D-BU | 1903 | AAS Wheel Speed Sensor Signal Left Front |
| 8-9 | - | - | Not Used |
| 10 | 0.5 BK/VT | 883 | Low Reference |
| 11 | 0.5 RD/D-BU | 882 | Wheel Speed Sensor Signal Right Rear |
| 12 | - | - | Not Used |
| 13 | 6 BK | 1450 | Ground |
| 14 | 0.5 L-GN/BN | 2087 | Combined Vehicle Inertial Sensor Supply Voltage |
| 15-16 | - | - | Not Used |
| 17 | 0.5 D-BU | 2500 | High Speed GMLAN Serial Data (+) (1) |
| 18 | 0.5 WH | 2501 | High Speed GMLAN Serial Data (-) (1) |
| 19 | - | - | Not Used |
| 20 | 0.5 WH | 6106 | High Speed GMLAN Serial Data (-) (2) |
| 21 | 0.5 D-BU | 6105 | High Speed GMLAN Serial Data (+) (2) |
| 22-24 | - | - | Not Used |
| 25 | 2.5 RD/D-GN | 1542 | Battery Positive Voltage |
| 26 | - | - | Not Used |
| 27 | 0.5 D-BU/WH | 830 | Wheel Speed Sensor Signal Left Front |
| 28 | 0.5 BK/D-BU | 873 | Low Reference |
| 29 | 0.5 D-GN/GY | 333 | Brake Fluid Level Sensor Signal |
| 30-32 | - | - | Not Used |
| 33 | 0.5 WH/D-BU | 5986 | Serial Data Communication Enable |
| 34 | - | - | Not Used |
| 35 | 0.5 BK/D-BU | 885 | Low Reference |
| 36 | 0.5 D-BU | 884 | Wheel Speed Sensor Signal Left Rear |
| 37 | - | - | Not Used |
| 38 | 2.5 BK | 1450 | Ground |
Connector Part Information
|
Terminal Part Information
|
