K29 Seat Heating Control Module X1 Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

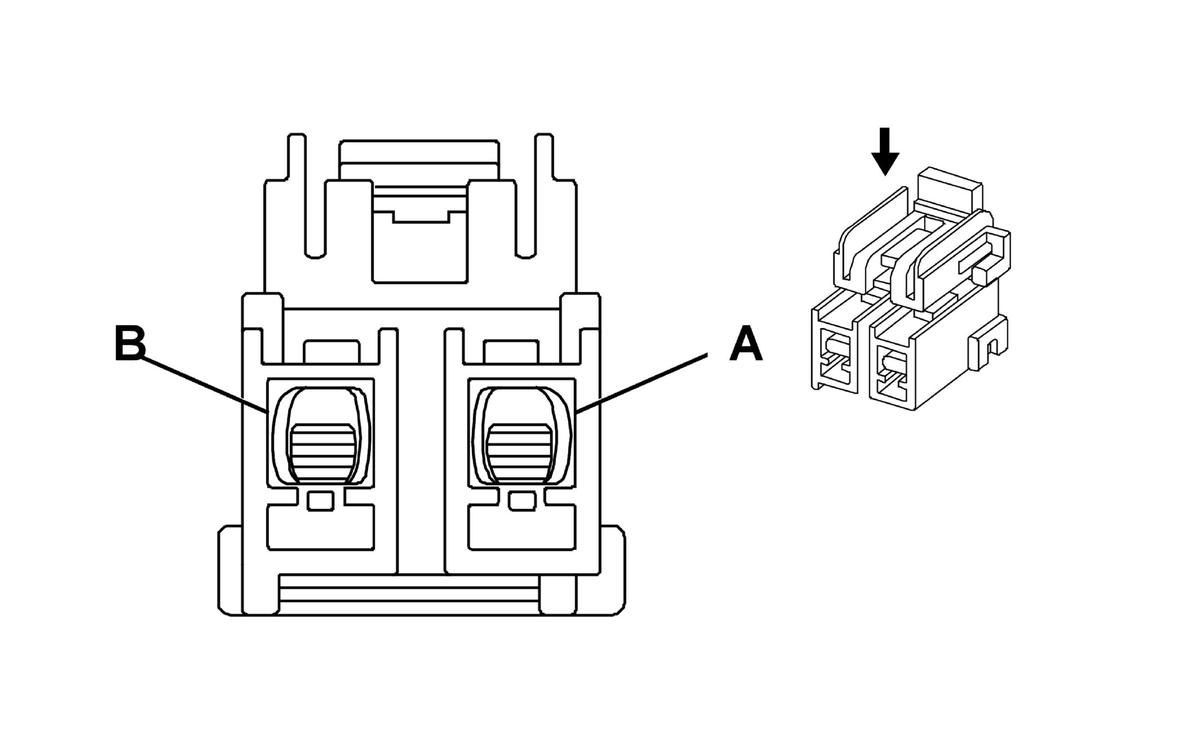

Fig 1: K29 Seat Heating Control Module X1 Connector End View
GM2231659Courtesy of GENERAL MOTORS CORP.
K29 Seat Heating Control Module X1

Pin Wire Circuit Function
A 2.0 BK 150 Ground
B 2.0 RD/WH 140 Battery Positive Voltage
Connector Part Information
  • Harness Type: Driver Seat
  • OEM Connector: 88988990
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F Metri-Pack 280 Series (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Pending
  • Terminal/Tray: Service by Harness - See Part Catalog
  • Core/Insulation Crimp: Not Available
