K83 Parking Brake Control Module Connector End View

WARNING: This page is about a different car, the 2011 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

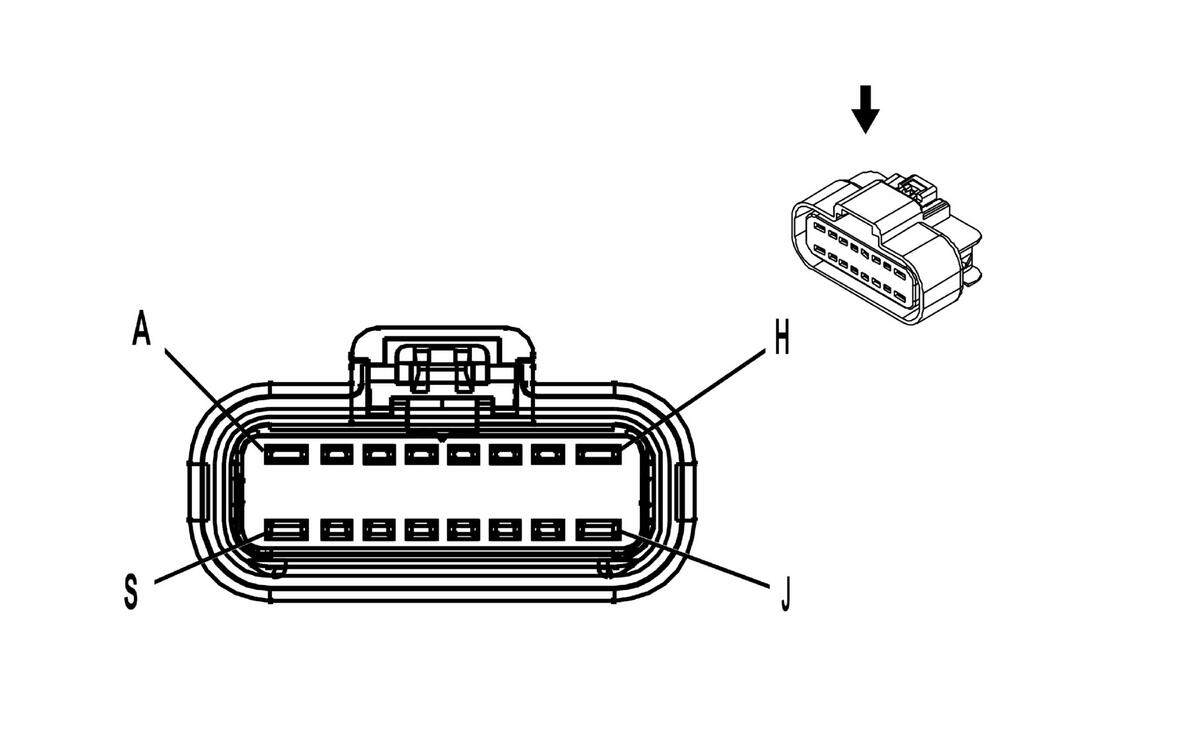

Fig 1: K83 Parking Brake Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.

K83 Parking Brake Control Module

Pin	Color	Circuit	Function
A	2.5 RD/L-GN	1040	Battery Positive Voltage
B	0.5 YE/RD	7683	Park Brake Release Switch Voltage Reference
C	0.5 D-BU/VT	1134	Park Brake Switch Signal
D	0.5 GY/RD	7684	Park Brake Apply Switch Voltage Reference
E	0.5 D-BU	2500	High Speed GMLAN Serial Data (+) (1)
F	0.5 D-BU	2500	High Speed GMLAN Serial Data (+) (1)
G	0.5 D-BU	2500	High Speed GMLAN Serial Data (+) (1)
H	2.5 BK	2350	Ground
J	-	-	Not Used
K	0.5 WH	2501	High Speed GMLAN Serial Data (-) (1)
L	0.5 WH	2501	High Speed GMLAN Serial Data (-) (1)
M	0.5 WH	2501	High Speed GMLAN Serial Data (-) (1)
N	0.5 YE	1492	Park Brake Switch Supply Voltage
P	0.5 WH/D-BU	5986	Serial Data Communication Enable
R	0.5 BN	6107	Park Brake Apply Switch Signal
S	0.5 D-BU/BK	6108	Park Brake Release Switch Signal

Connector Part Information

Harness Type: Body
OEM Connector: 88988439
Service Connector: 15306348
Description: 16-Way F GT 150 280 Series, Sealed (BK)

Terminal Part Information

Pins: A, H
Terminated Lead: Pending
Release Tool: 15315247
Diagnostic Test Probe: J-35616-4A (PU)
Terminal/Tray: 15304720/19
Core/Insulation Crimp: 4/5

Pins: B-G, K-R
Terminated Lead: Pending
Release Tool: 15315247
Diagnostic Test Probe: J-35616-2A (GY)
Terminal/Tray: 12191819/8
Core/Insulation Crimp: E/1

Pins: S
Terminated Lead: Pending
Release Tool: 15315247
Diagnostic Test Probe: J-35616-4A (PU)
Terminal/Tray: 15304719/19
Core/Insulation Crimp: E/5
